Intelligent dehumidifier

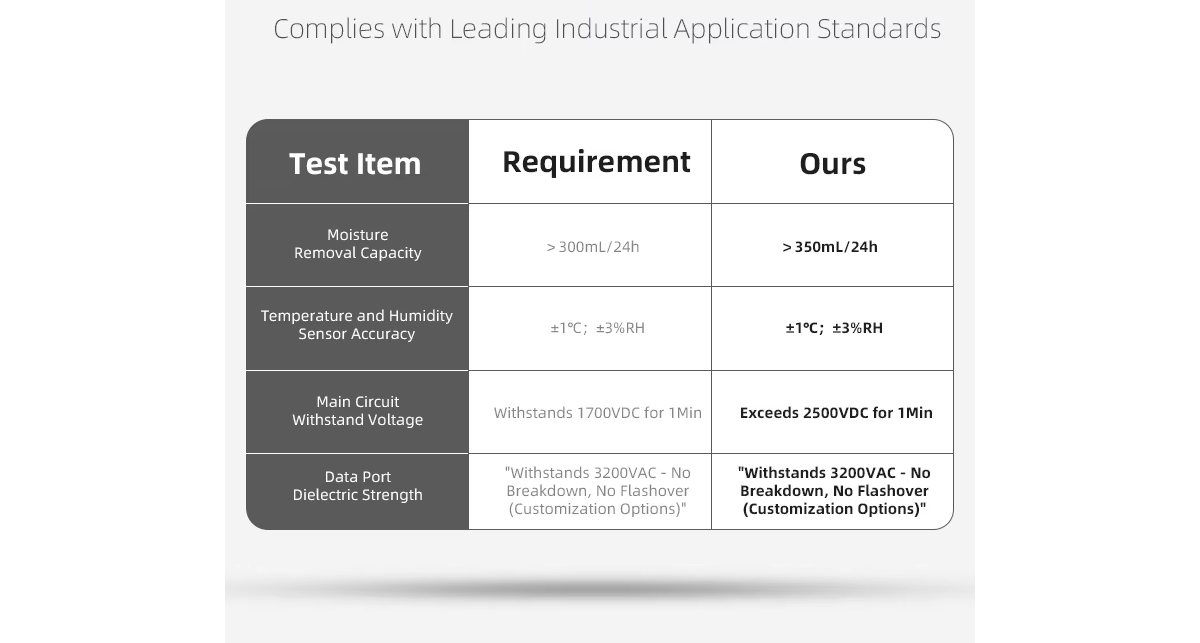

| Test Item | Requirement | Ours |
|---|---|---|
| Moisture Removal Capacity | > 300mL/24h | > 350mL/24h |
| Temperature and Humidity Sensor Accuracy | ±1℃; ±3%RH | ±1℃; ±3%RH |
| Main Circuit Withstand Voltage | Withstands 1700VDC for 1Min | Exceeds 2500VDC for 1Min |
| Data Port Dielectric Strength | "Withstands 3200VAC‑ No Breakdown, No Flashover (Customization Options)" | "Withstands 3200 VAC- No Breakdown, No Flashover (Customization Options)" |

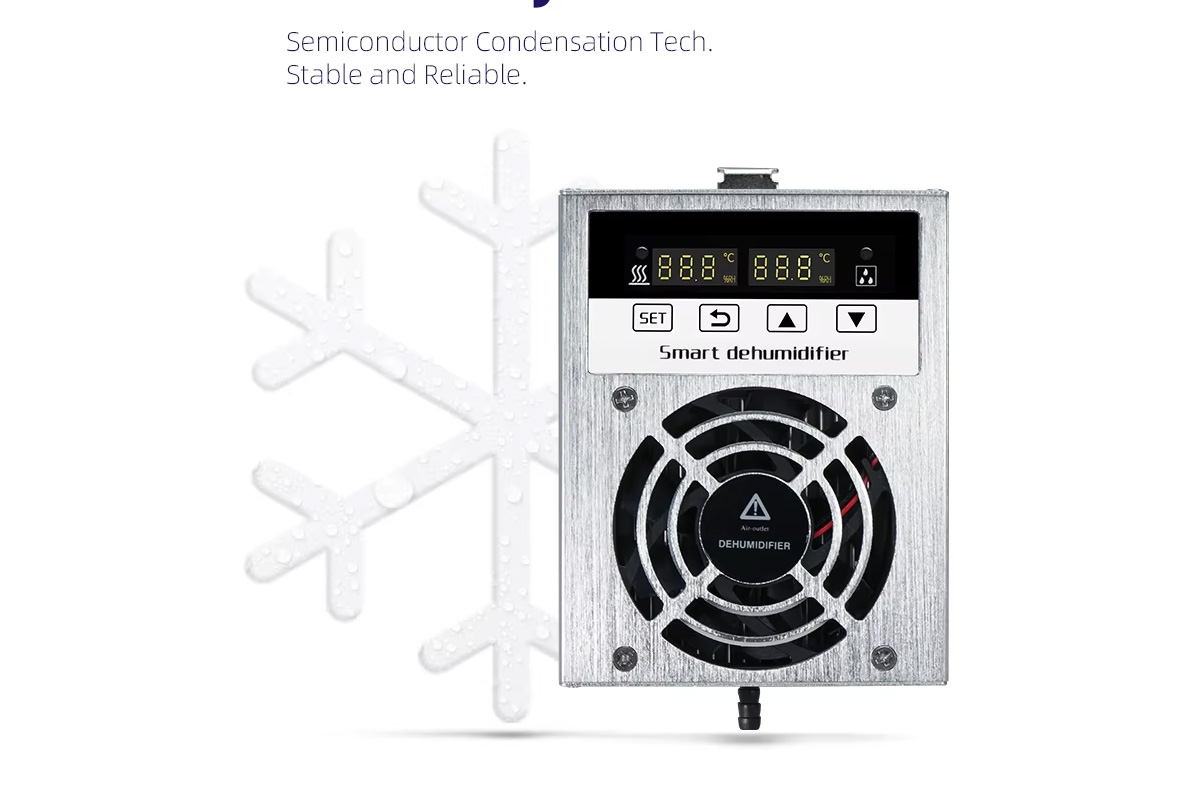

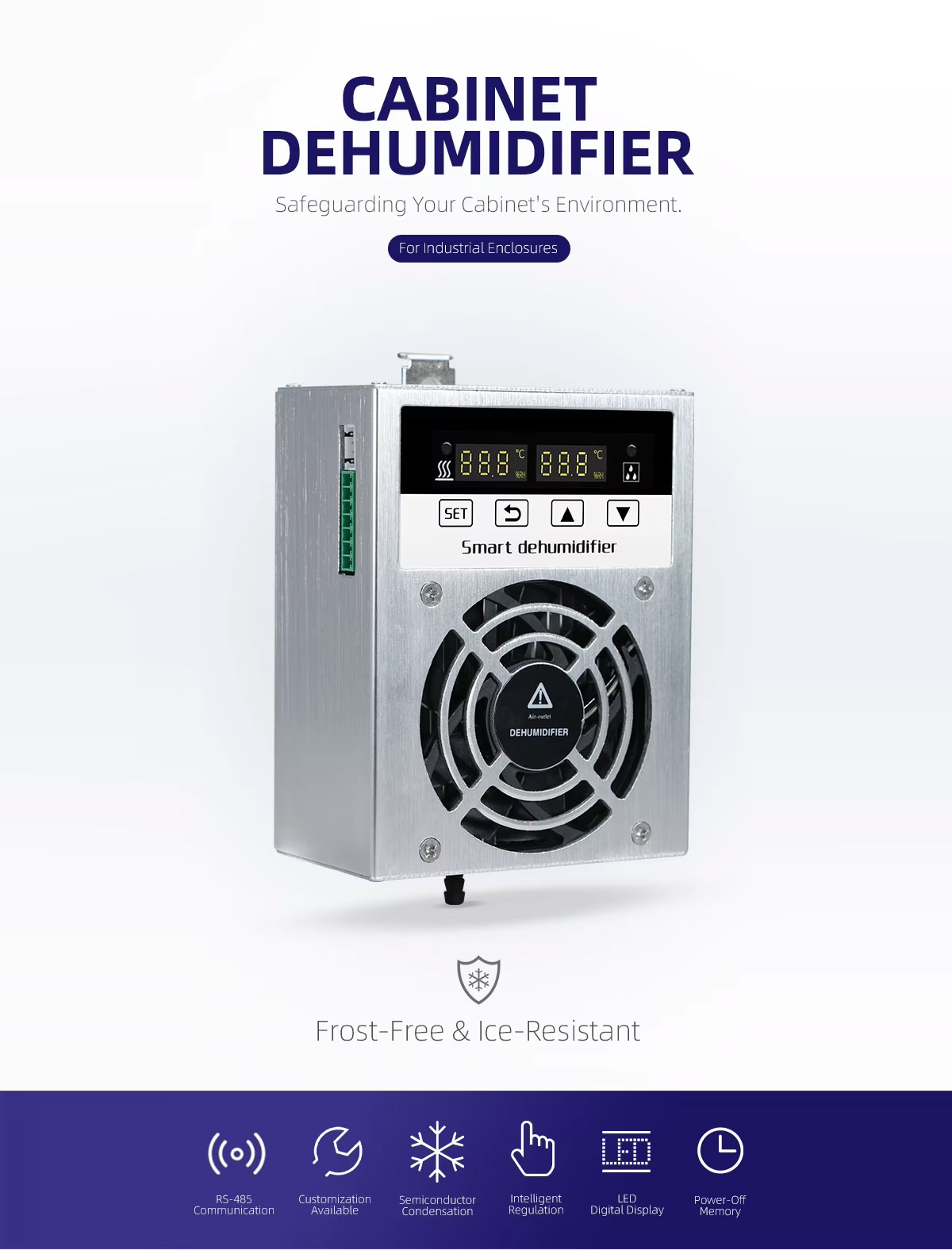

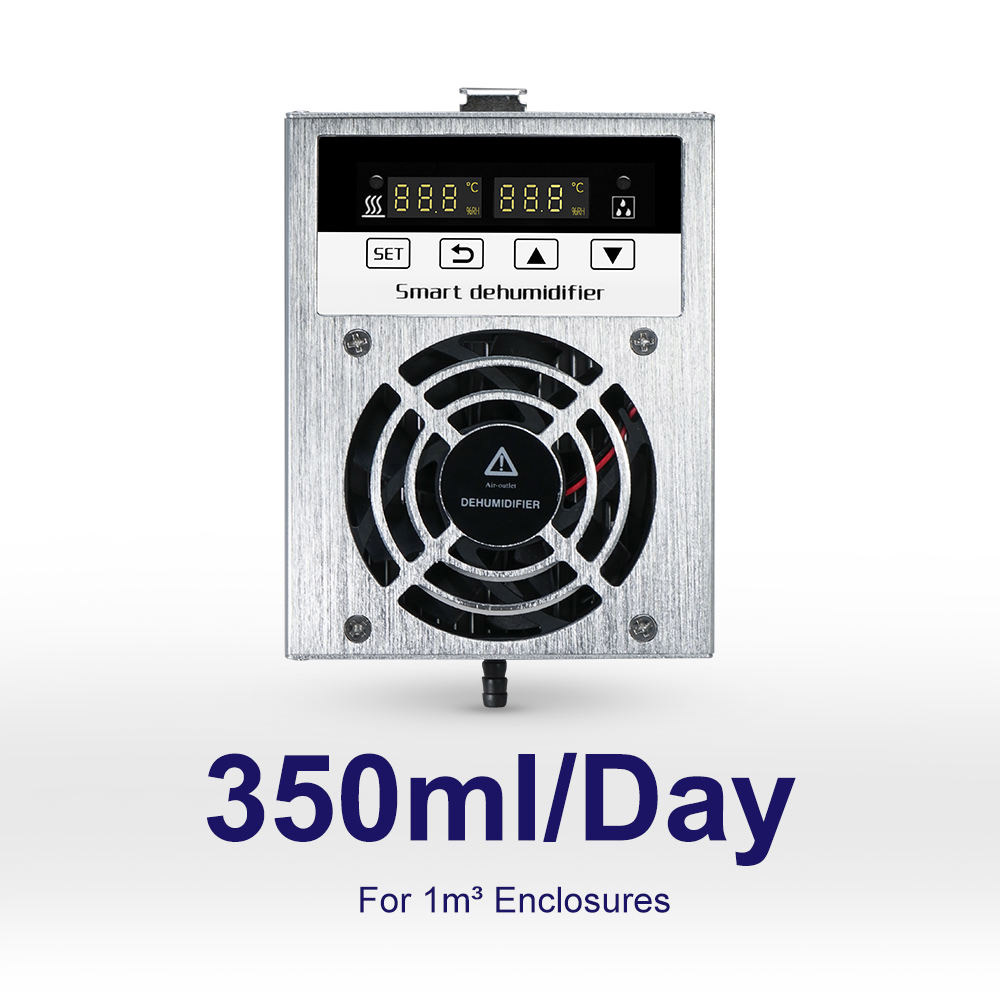

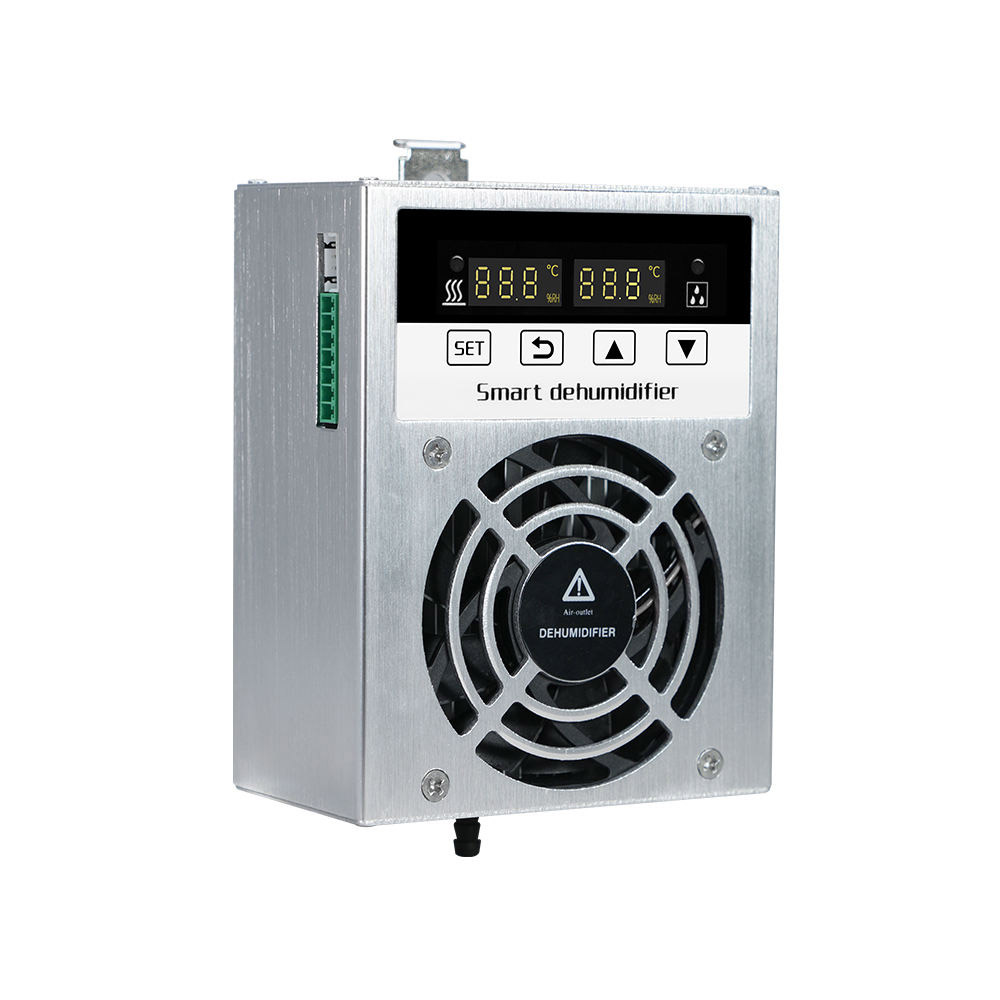

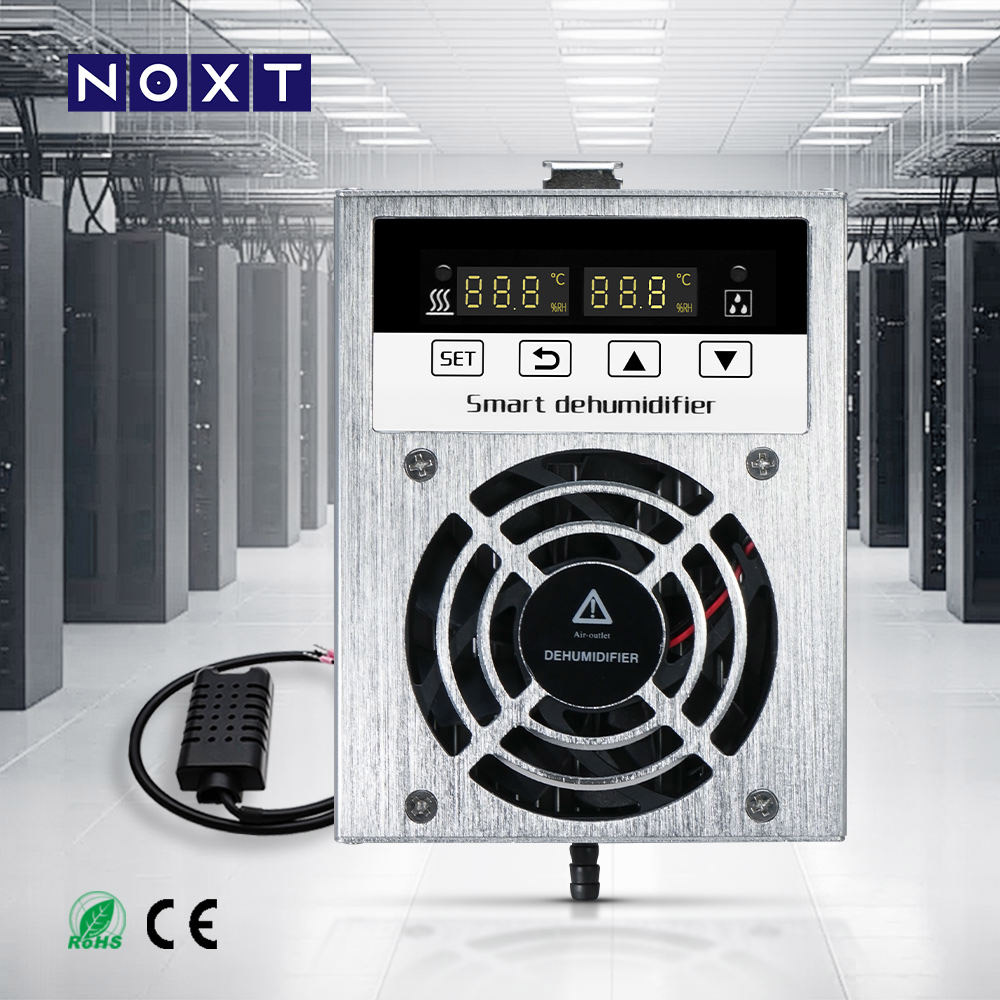

CZCS860A intelligent cabinet dehumidifier is designed for industrial electrical enclosures. It adopts semiconductor condensation technology to eliminate internal moisture, prevent condensation, corrosion and short‑circuit faults, and protect circuit breakers, controllers and precision electrical components.

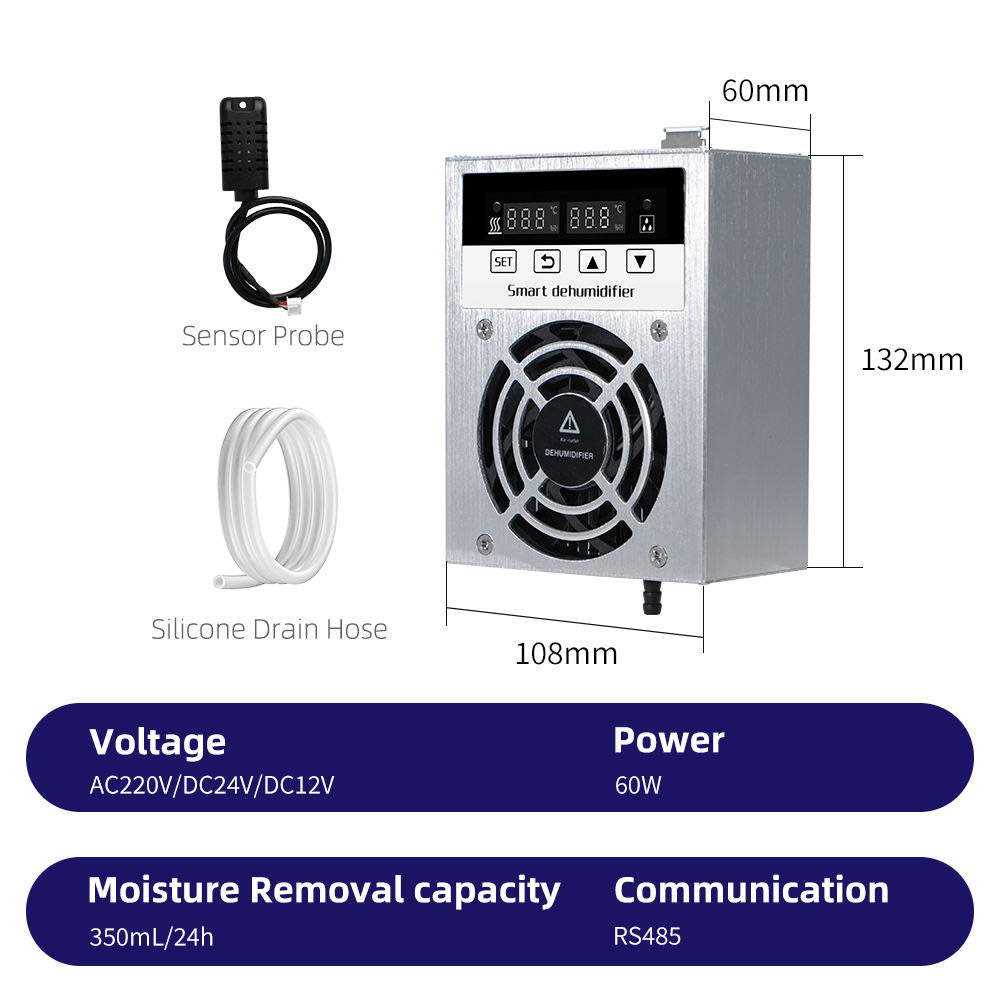

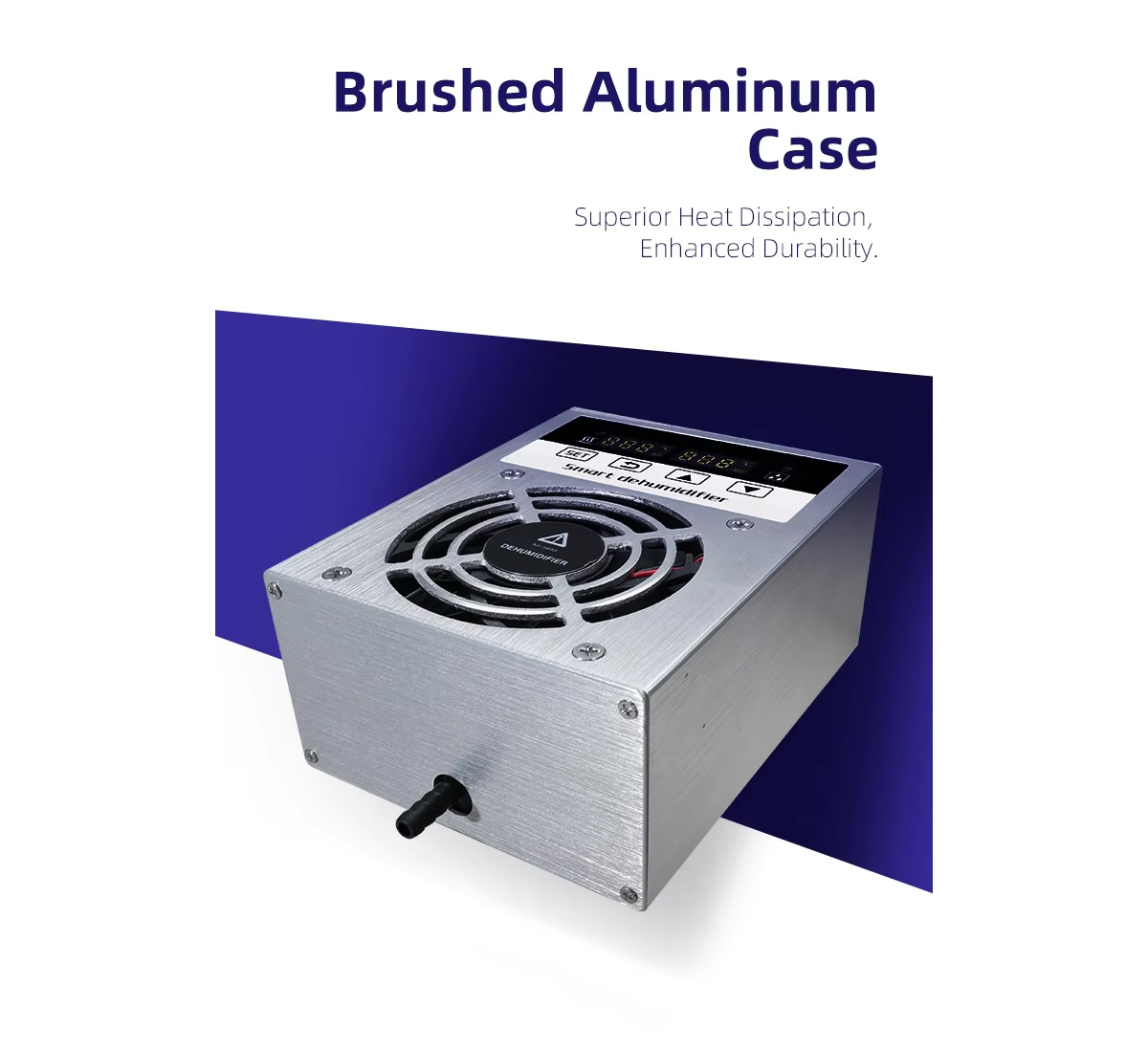

The brushed aluminum housing provides excellent heat dissipation and durability. With DIN‑rail mounting, RS‑485 remote communication and passive contact output, it fits automated power distribution and monitoring systems perfectly.

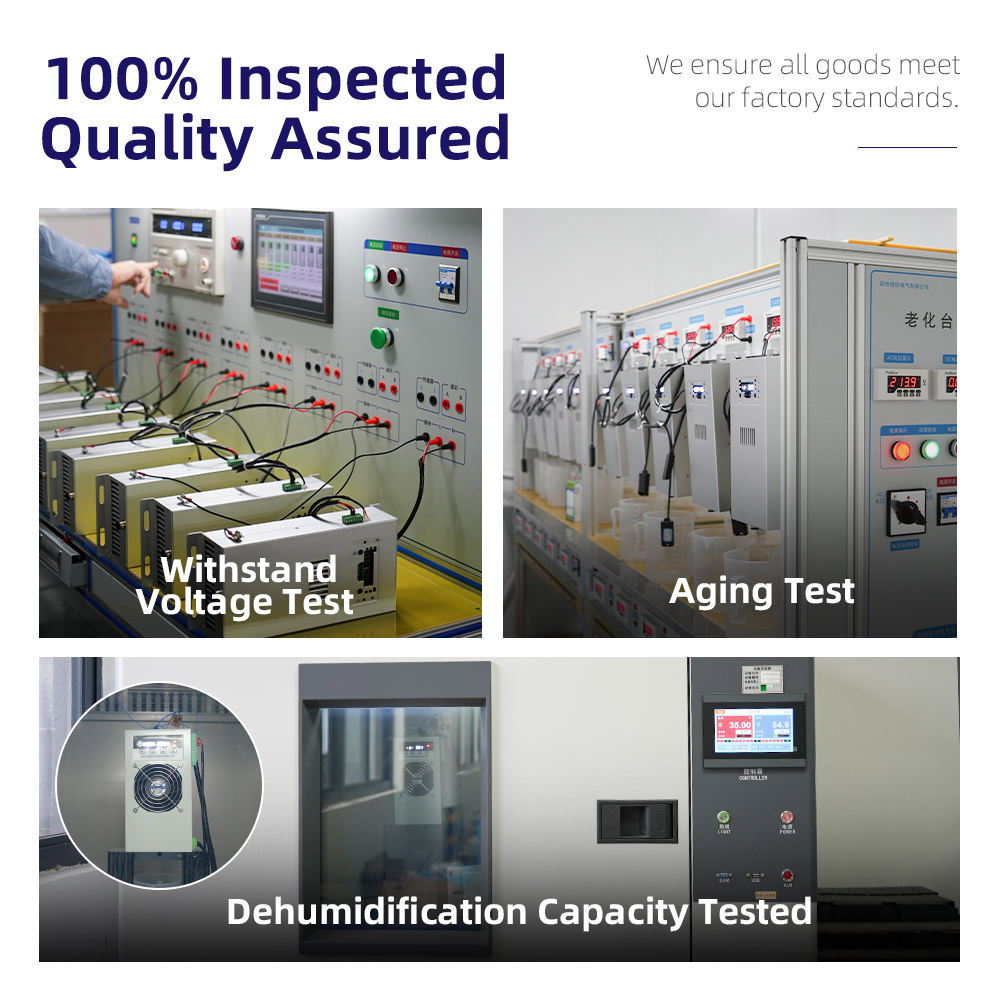

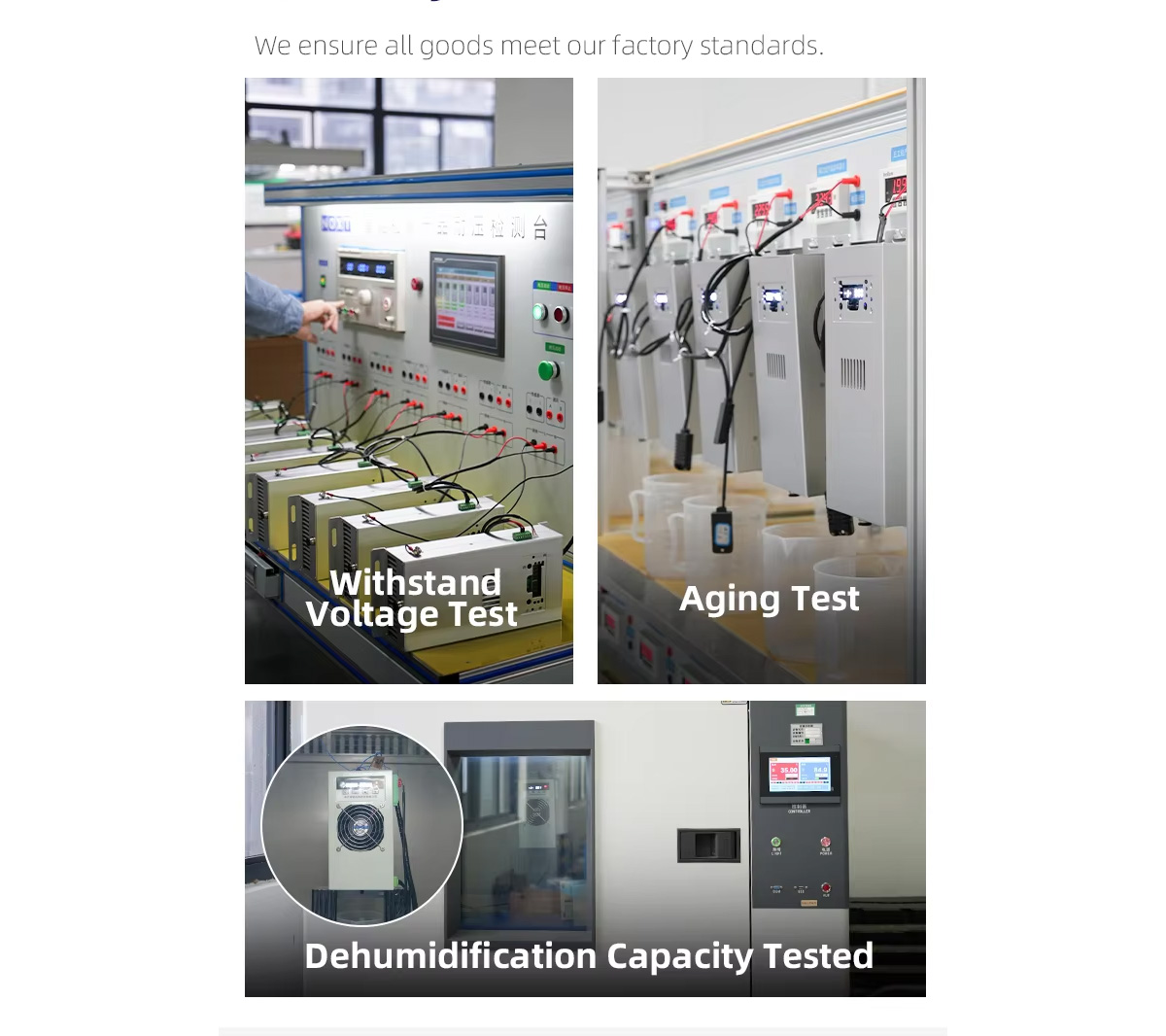

Test report per batch
Datasheet + test report
CADs, logos, test reporting
1-5 pcs for qualified buyers

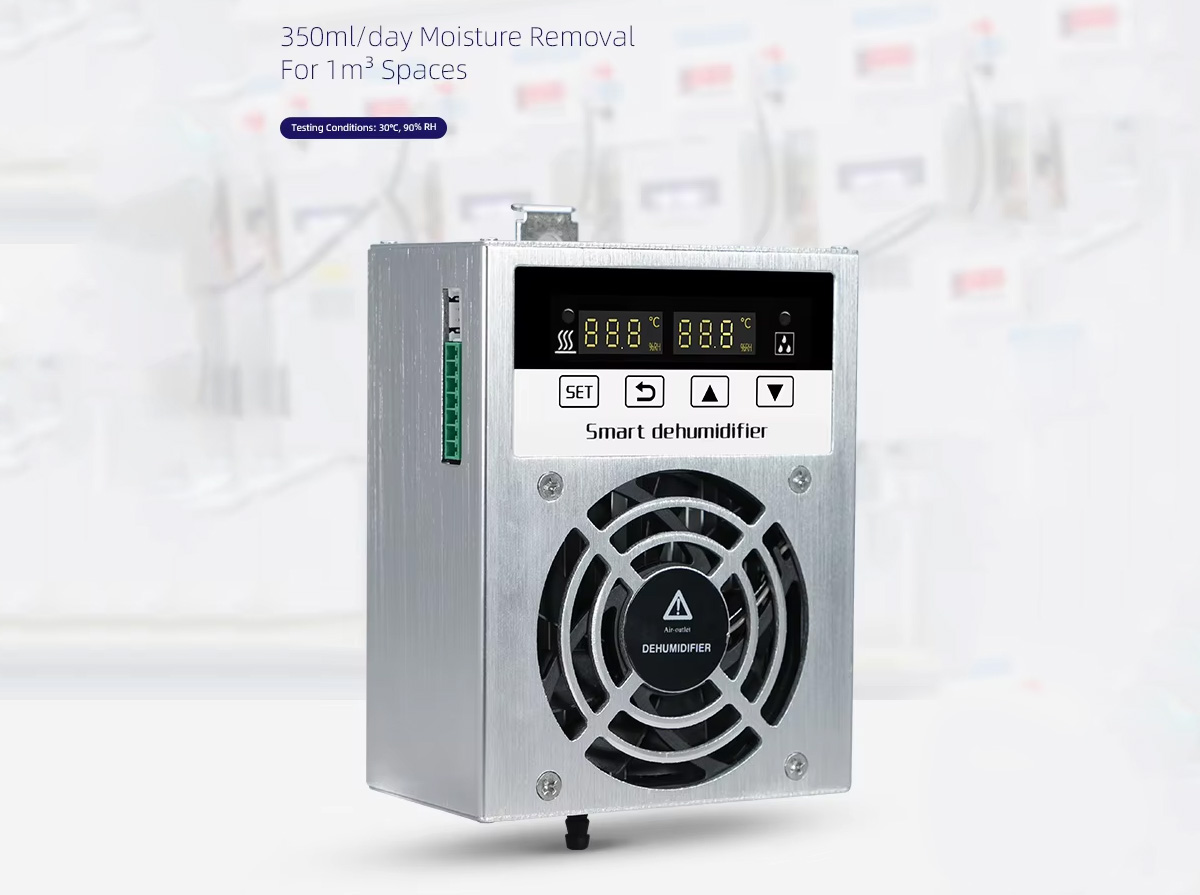

The 350ml/24h data is tested under 30u2103 and 90%RH for 1mu00b3 cabinet. The semiconductor condensation structure has frostu2011free design, but dehumidification efficiency will moderately decrease when the internal cabinet temperature is far below 20u2103, which is normal physical characteristics.

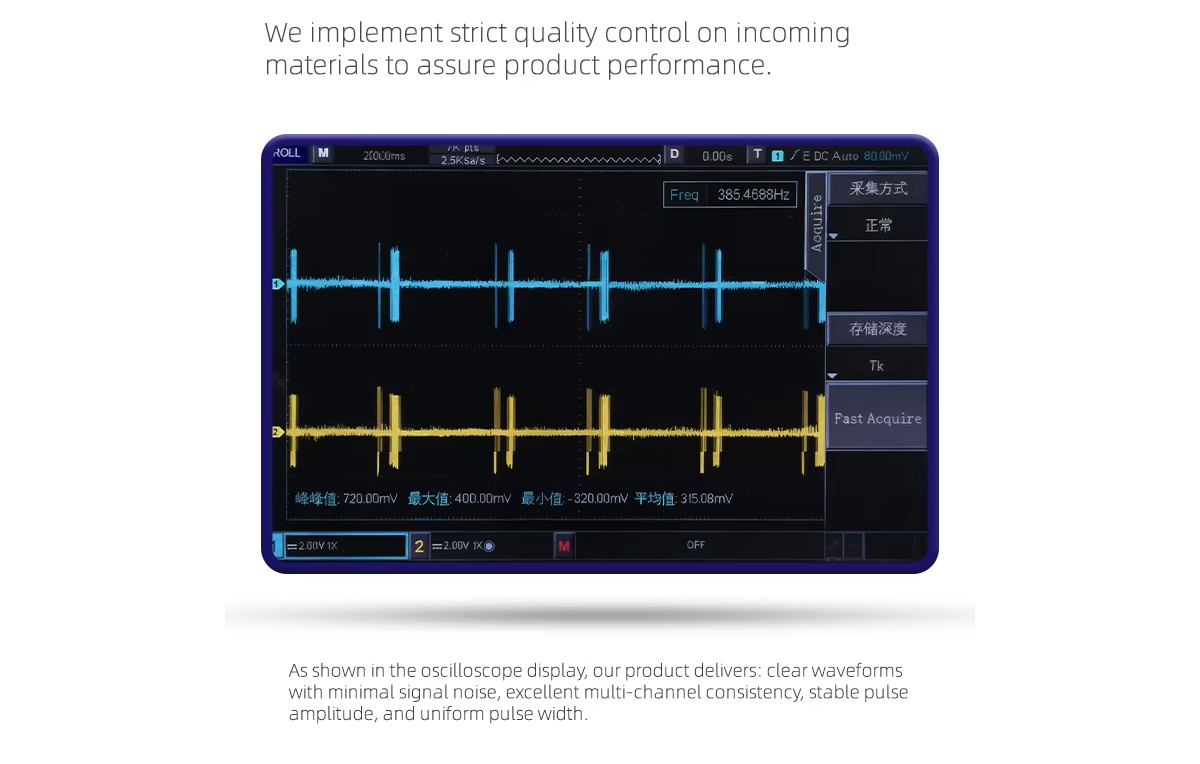

We control raw material quality strictly. Oscilloscope verification proves low signal noise and stable pulse signals. The main circuit can withstand over 2500VDC voltage, which greatly resists electromagnetic interference inside highu2011voltage switch cabinets and avoids misoperation.
We support customized dielectric strength of RSu2011485 data port, modification of operating voltage, parameter presetting and cable configuration according to your cabinet project requirements.
