Thermostat-Linked Cabinet Ventilation Sets
Fan and thermostat in one bundle: the ventilation set pairs our fan with a KTS011 thermostat so the fan runs only when the cabinet needs it. Automatic start-stop typically cuts ventilation energy by around a third, and it is a single SKU for the buyer, which makes quoting simple.
One SKU, Automatic Ventilation
A fan that runs all day wastes energy, because most of the time the cabinet is not hot enough to need it. The ventilation set bundles a fan with a KTS011 thermostat so the fan starts only when the cabinet reaches the set temperature, typically cutting ventilation energy by about a third.
The set ships as one SKU, so procurement and quoting stay simple. The fan mounts in a panel cut-out and the thermostat on a DIN rail, wired per the datasheet diagram. Set the thermostat switch-on at 30 to 35C for a standard cabinet, or 10K above the ambient design temperature. Operating range -20C to +60C.
Browse Filter Products

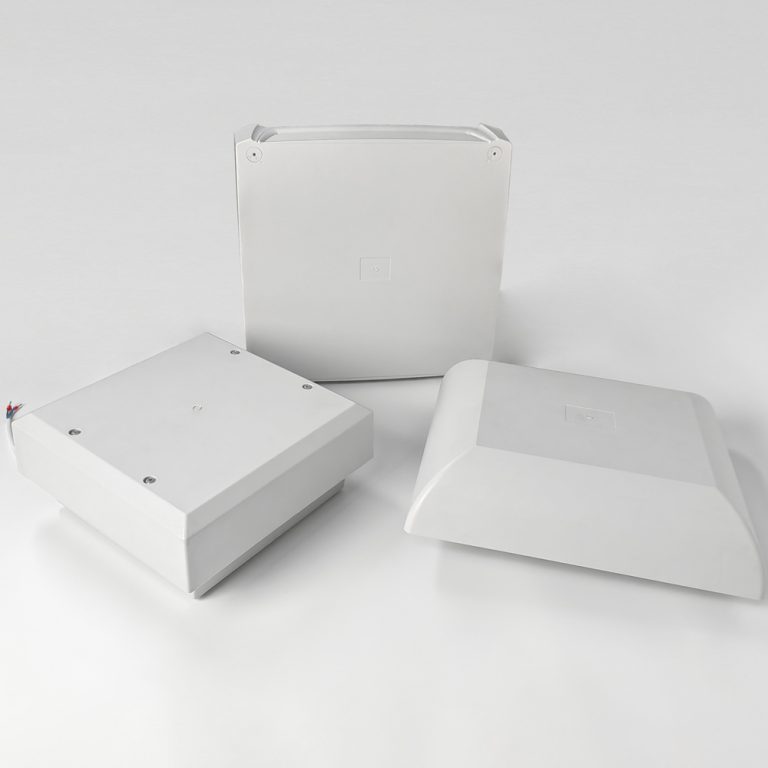

F2E
F2E series roof ventilators, available in DGP, DSP and DP versions. Flame‑retardant, low‑noise top‑mount enclosure exhaust fans for electrical cabinets. Multiple airflow options, complete dimension drawings and installation cut‑out sizes for industrial cabinet heat dissipation.

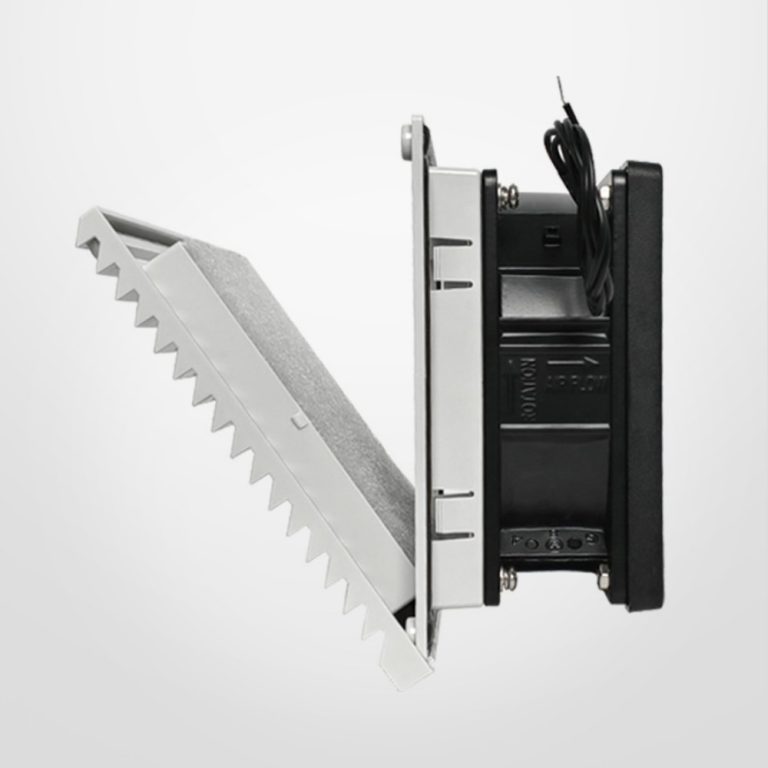

TB98
Our TB98 series cabinet filter fans are specially designed for electrical cabinet ventilation, heat dissipation and dust prevention. Equipped with high‑performance axial fan and filter grille, they efficiently exchange hot air inside the enclosure while blocking dust and debris from entering.

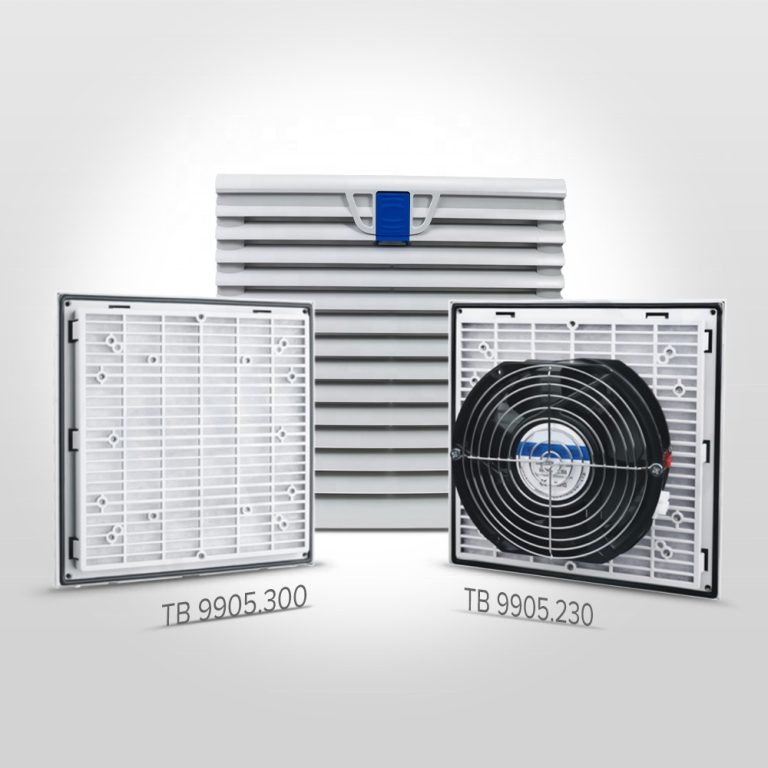

TB99
TB99 series filter fans are integrated ventilation and filtration units specially designed for industrial electrical cabinets. Combining axial fan and louvered filter grille, they realize forced air circulation inside enclosures, efficiently reduce operating temperature of electronic components while blocking dust and splashes.

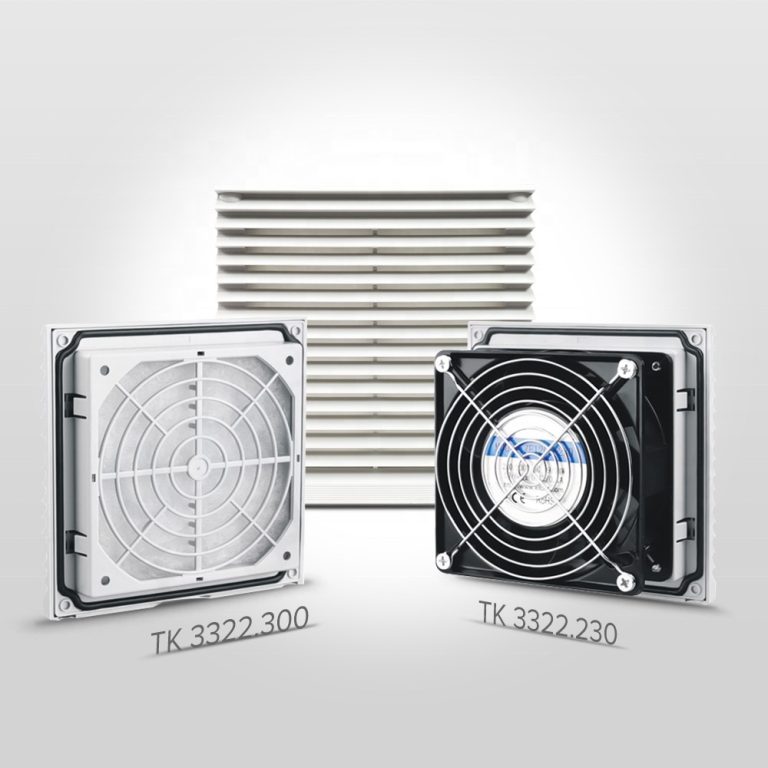

TK33
TK33 series filter fans are professional ventilation and cooling assemblies designed for electrical and automation control cabinets. The complete lineup covers three sizes: TK3321, TK3322 and TK3323. Each size has an active filter fan and a matching passive louver exhaust grille (TK3321.300 / TK3322.300 / TK3323.300), forming a full air circulation cooling solution.

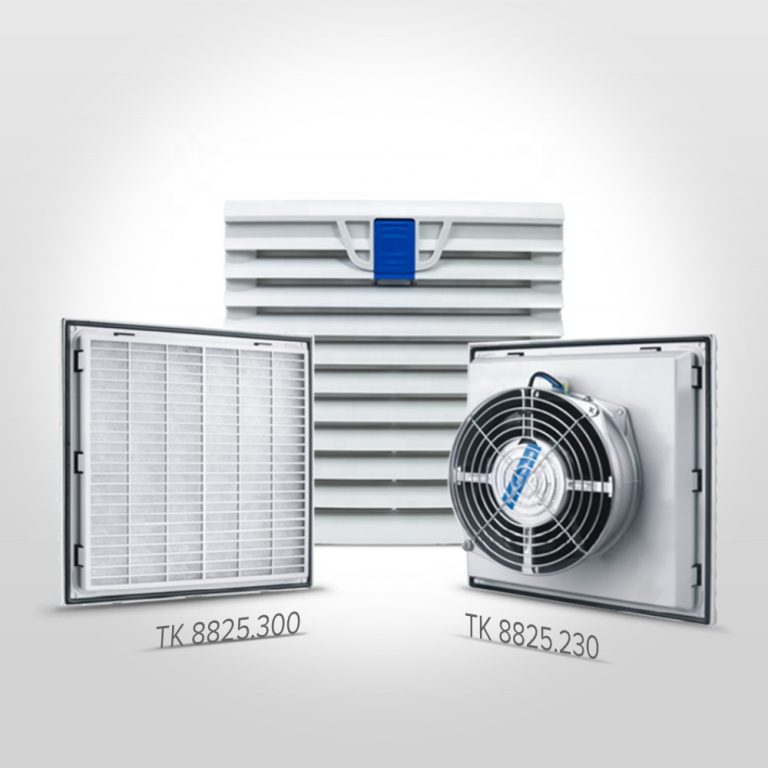

TK88
Our TK88 series cabinet filter fan is designed for electrical cabinet heat dissipation and dust‑proof ventilation. Built with high‑quality flame‑retardant ABS plastic, it reaches IP54 protection grade and meets UL94‑V0 fire safety standards. Equipped with long‑life axial fans and replaceable filter sponges, the filter fan effectively circulates internal air, lowers cabinet temperature and prevents dust […]
How to Choose a Ventilation Set, Full Selection Guide
Choose the fan in the set that clears your cabinet heat, sized by dividing watts by 20-30 to get m3/h.
Set switch-on at 30-35C for a standard cabinet, or 10K above the ambient design temperature.
Yes, within the contact rating of AC250V 10A. For larger setups, use the thermostat to drive a contactor.
Choose the bundled SKU. One part number covers the fan and thermostat together.
3-year warranty
Covered on both components
Automatic start-stop
Saves about a third of fan energy
Single SKU
Simplifies quoting and ordering
Inquiry FAQ
Typically 30-35C switch-on for standard cabinets, or 10K above the ambient design temperature. We provide a setting table on request.
In typical duty cycles, around 30% versus continuous operation, because fans run only when heat builds up.
Yes, within the contact rating (AC250V 10A). For larger setups, use the thermostat to drive a contactor.
