Intelligent dehumidifier

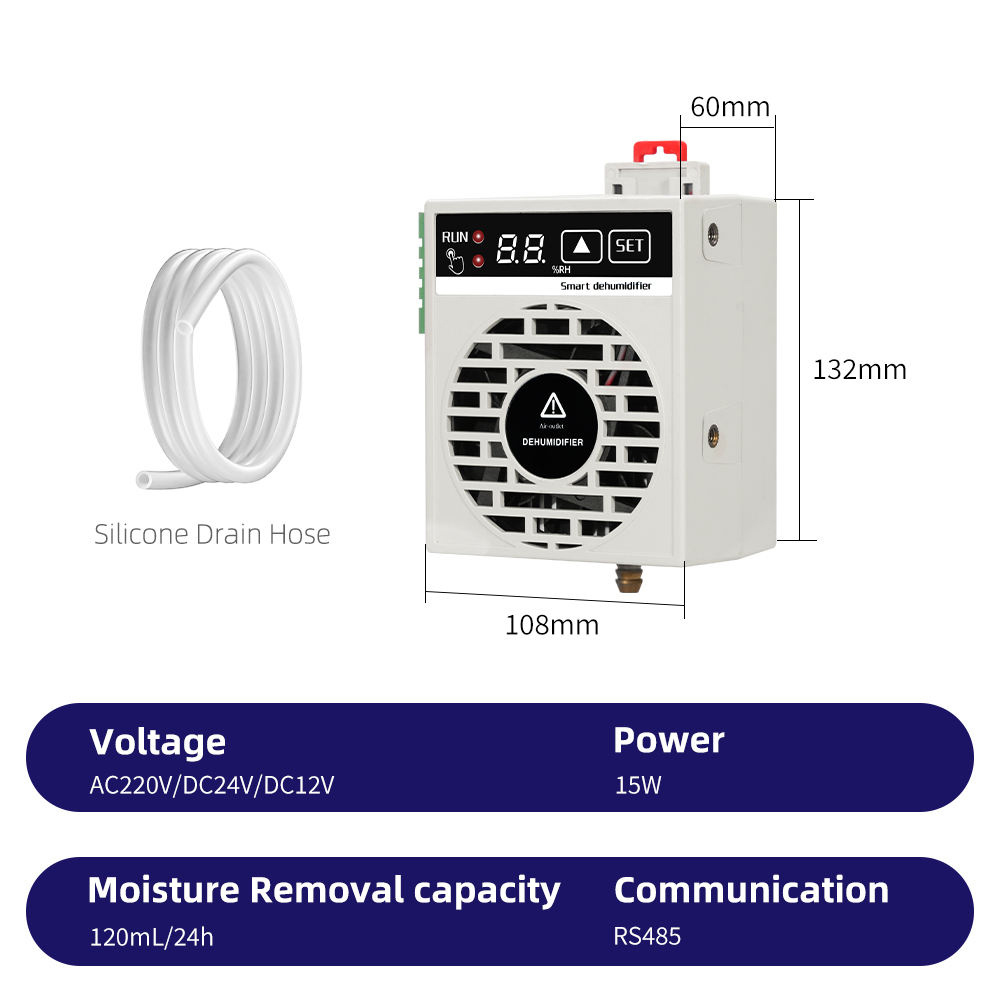

| Item | Specification |
|---|---|
| Model | CZCS 880 |
| Operating Voltage | DC12V/AC220V |
| Dehumidification Power | 15W |

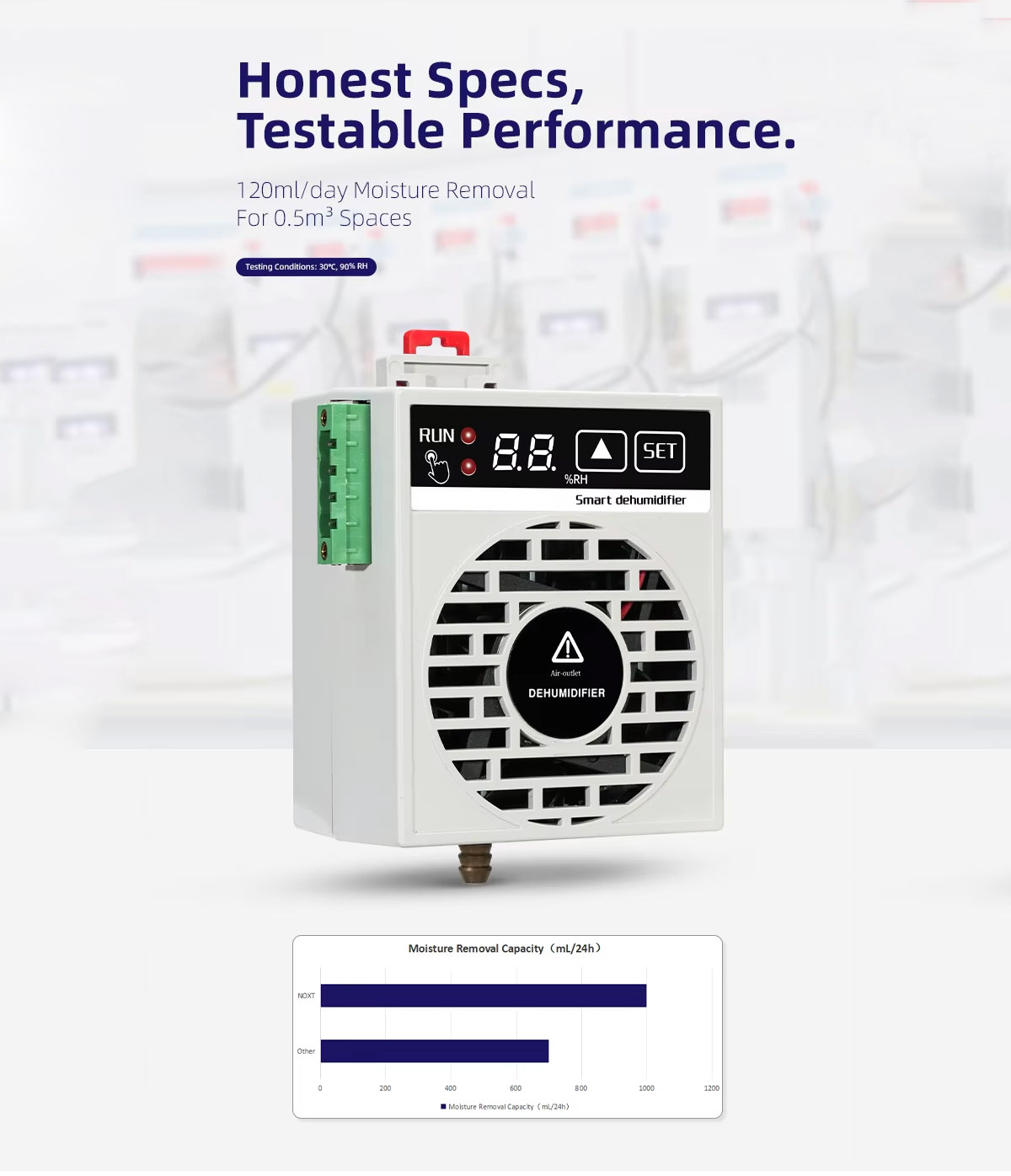

| Moisture Removal Capacity | ＞120ml/Day(Conditions:30℃,85%RH) Humidity accuracy:±3%RH(70%RH~90%RH),±5%(20%RH~70%RH) |
| Operating Temperature Range | 5~50℃ |
| Humidity Measurement Range | 0~99%RH |
| Temperature Measurement Range | 20~99℃ |
| Remote Monitoring | RS485 |
| Contact Output | 1NO + 1NC Passive Contacts |
| Intrinsic Error | Temperature:±0.5℃(10℃~50℃),1.5℃(50℃~99℃) |

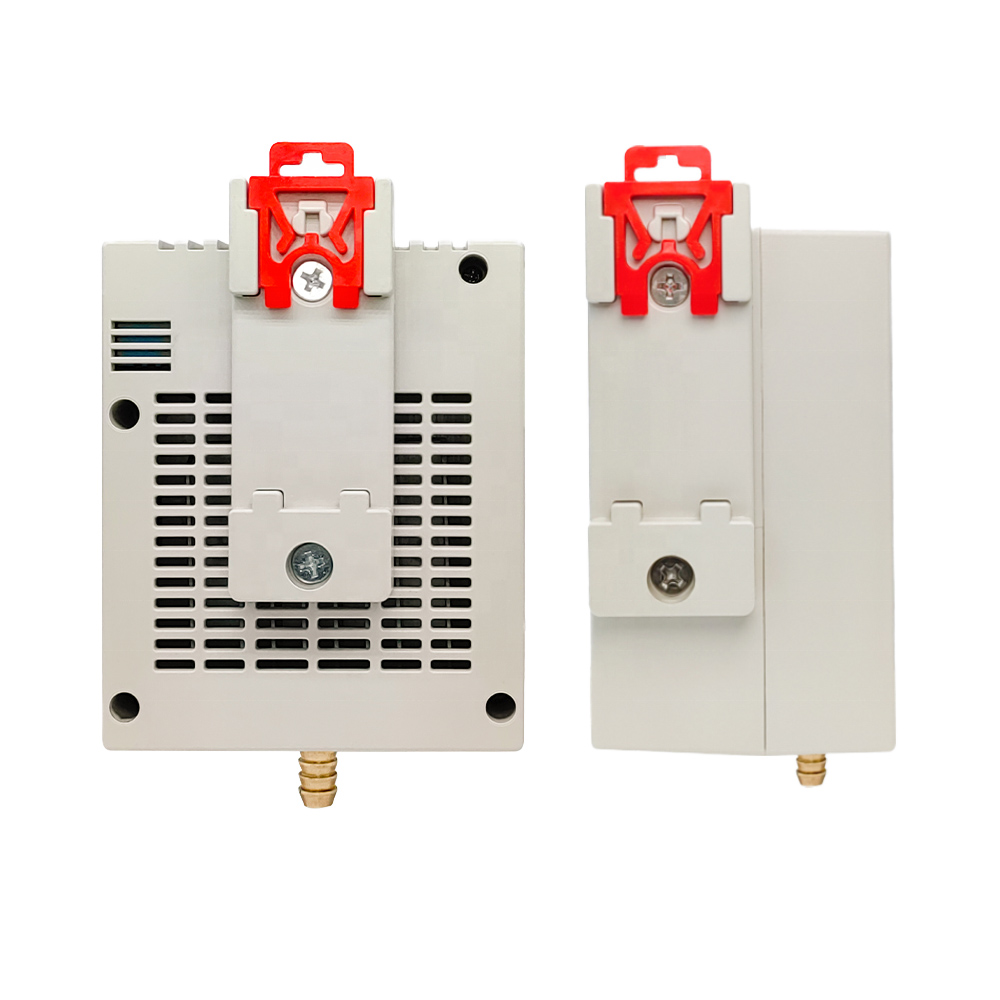

| Mounting Method | 35mm DIN Rail |

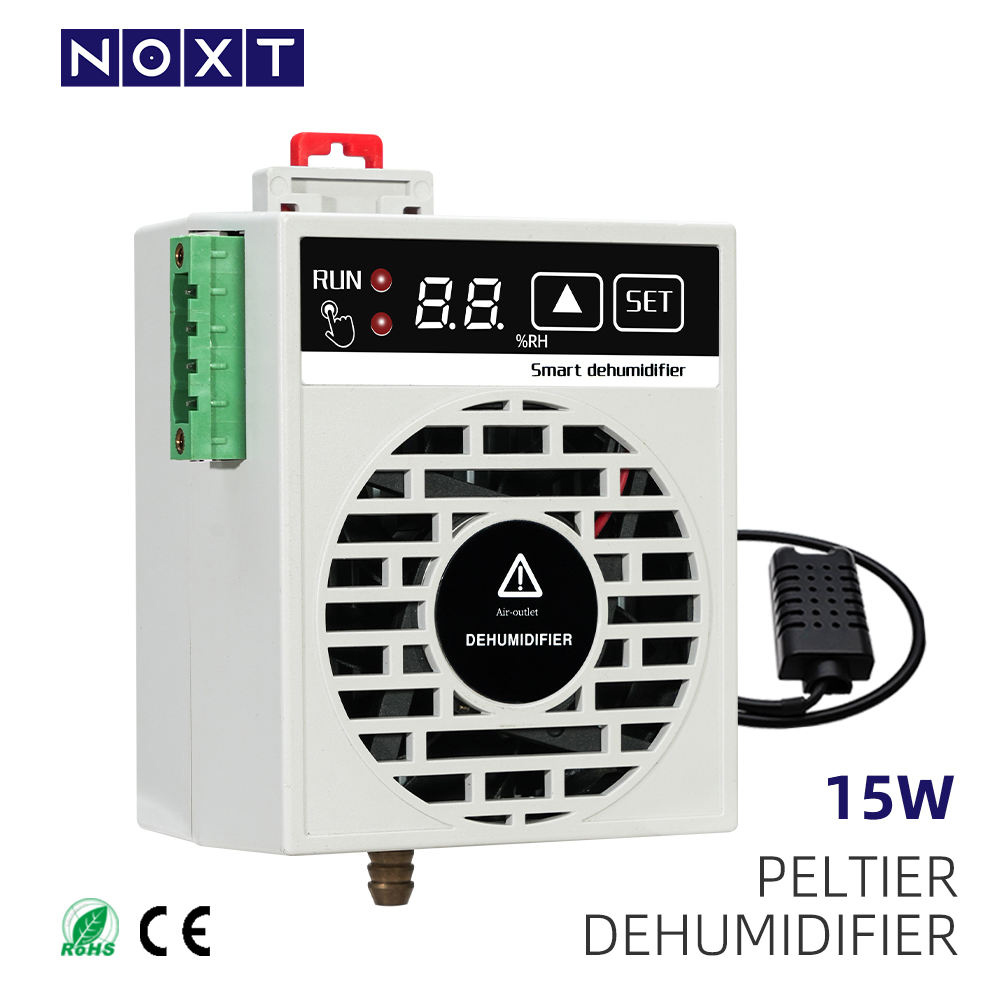

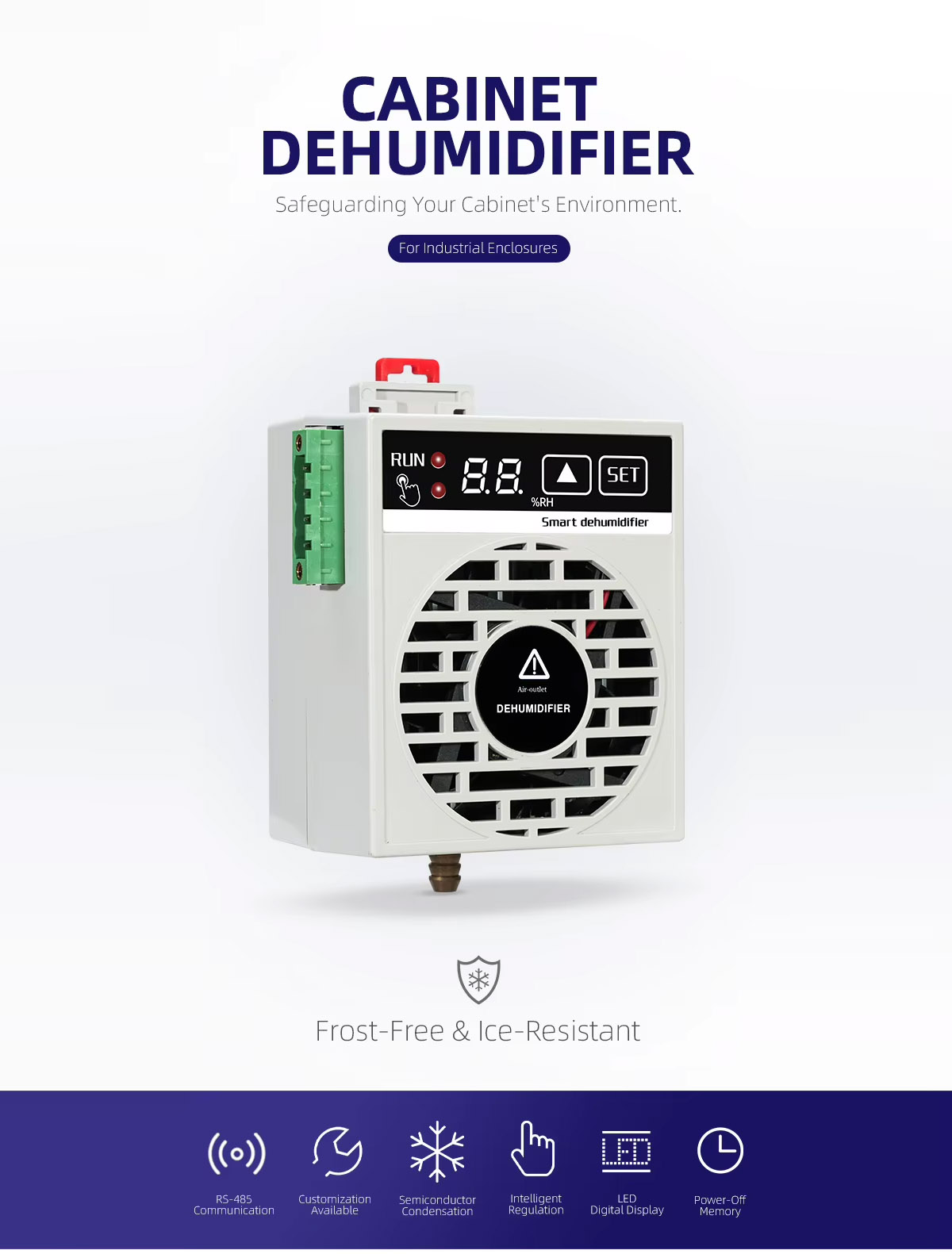

The CZCS880 intelligent cabinet dehumidifier is specially designed for industrial enclosures. It adopts advanced semiconductor condensation technology to effectively reduce internal humidity, prevent condensation, mold and corrosion, and protect electrical components from moisture damage.

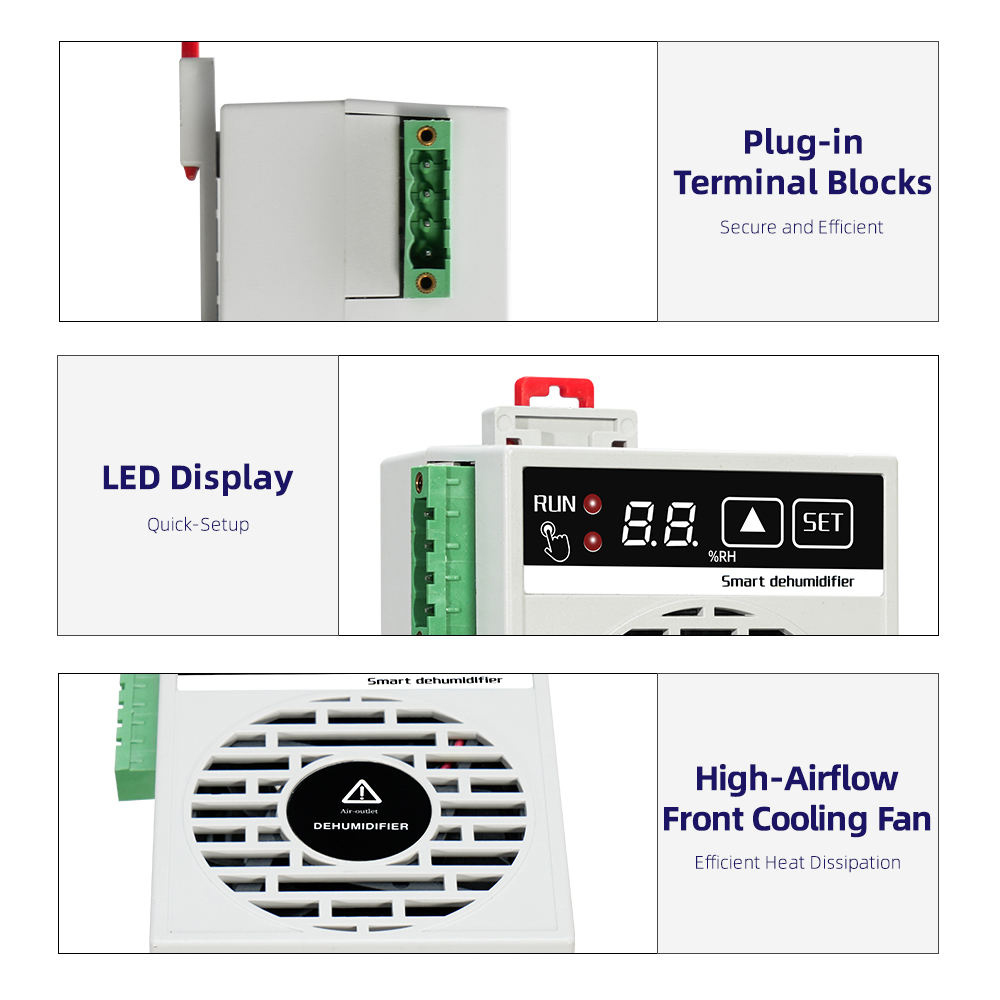

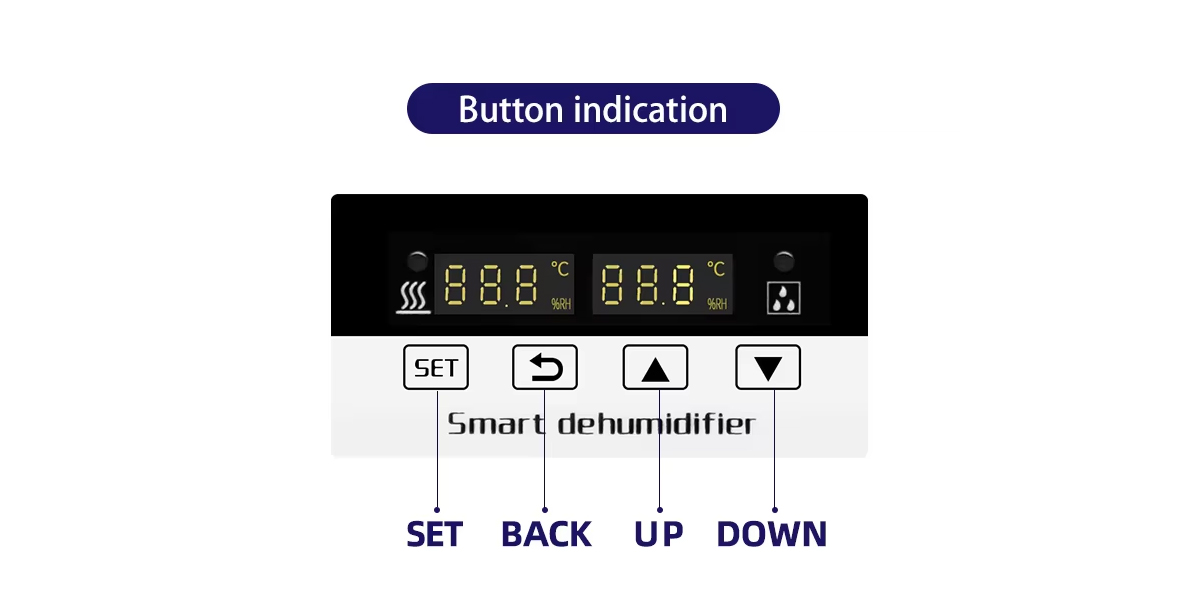

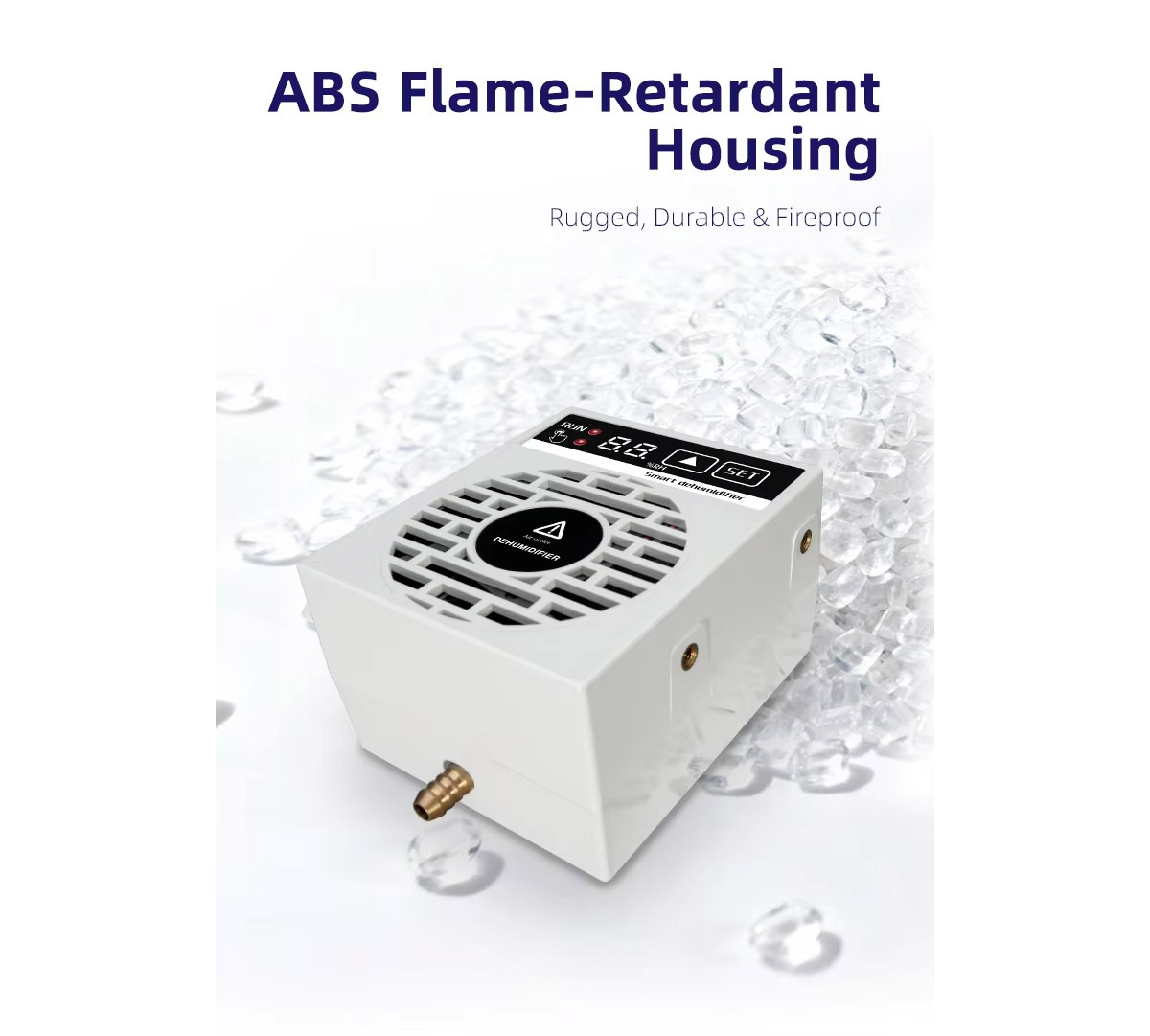

Equipped with an LED digital display and simple button operation, it supports real‑time humidity monitoring and precise humidity setting. The 35mm DIN rail mounting design enables fast installation inside switch cabinets, distribution boxes and control cabinets. Built‑in RS485 communication realizes remote monitoring, while passive contact output supports linkage control with other equipment. The flame‑retardant ABS housing guarantees stable and safe long‑term operation in harsh industrial environments.
Test report per batch
Datasheet + test report
CADs, logos, test reporting
1-5 pcs for qualified buyers

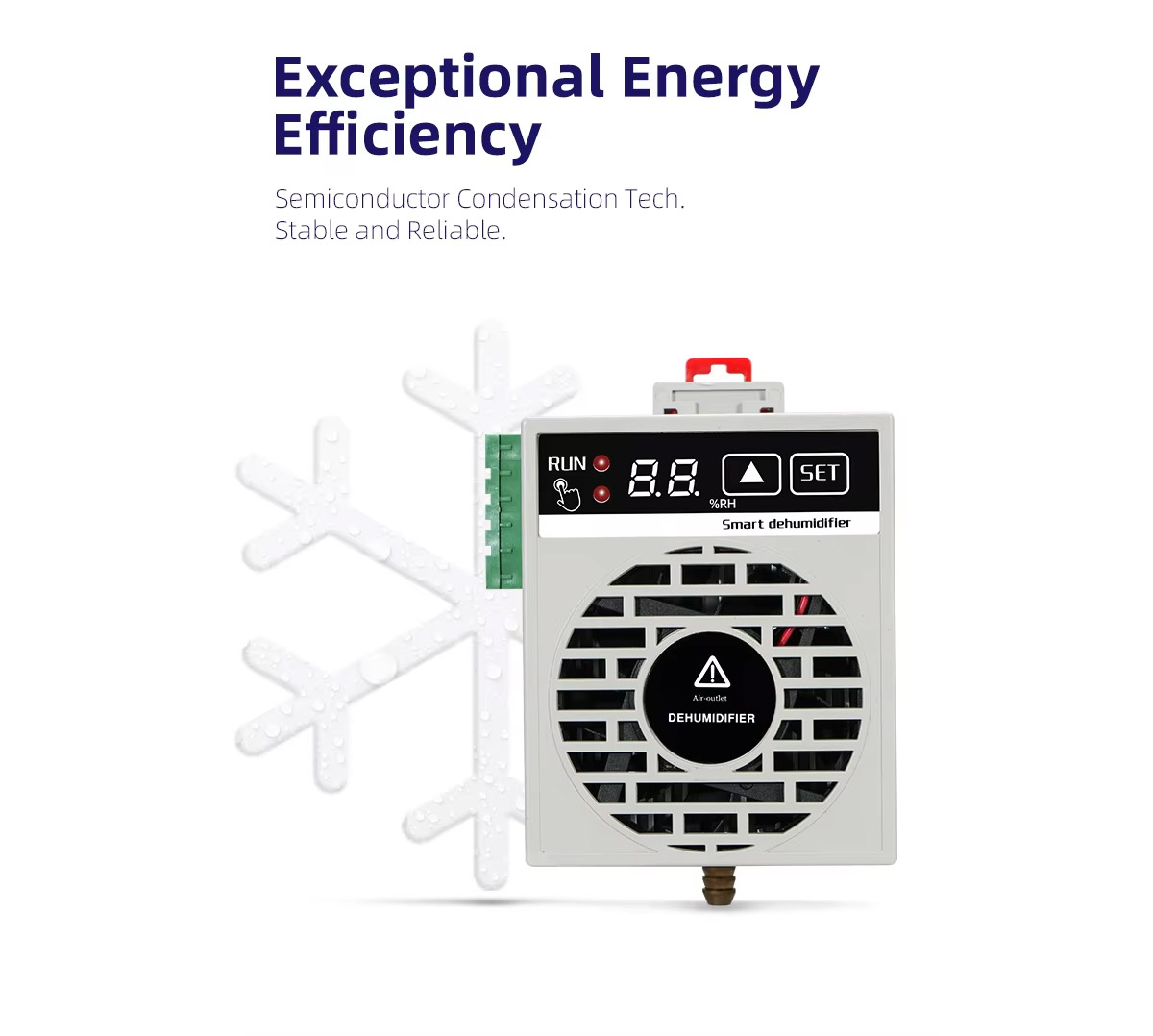

It uses thermoelectric cooling chips to form a cold surface. Moisture in cabinet air condenses into water droplets on the cold surface, and the condensed water is drained out through the water outlet. No refrigerant is needed, frostu2011free design avoids ice accumulation and guarantees continuous dehumidification.
The builtu2011in RS485 communication port connects to the host monitoring system to upload realu2011time humidity and temperature data. Meanwhile, 1NO+1NC passive relay contacts can send switch signals to start external heaters or alarms once humidity exceeds the preset threshold.

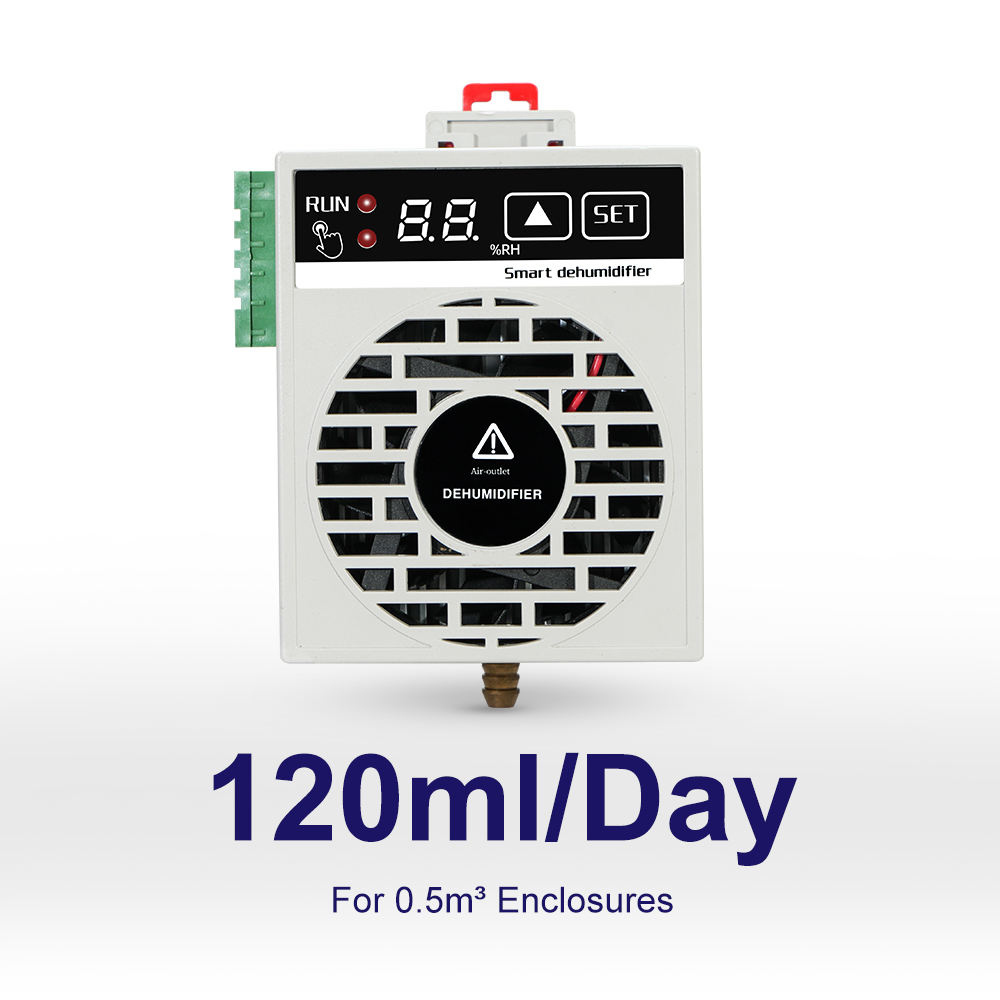

It is recommended for enclosed space around 0.5mu00b3. If your cabinet has larger volume or severe damp condensation, multiple units can be used in combination for better humidity control.
