Key Specifications

Technical Item	Parameter
Switching difference	12.6 °F ±7 °F tolerance (7 K ±4 K)
Sensor element	thermostatic bimetal
Contact type	snap‑action contact
Service life	> 100,000 cycles
Max. switching capacity	NC:10 A resistive / 2 A inductive @ AC 250 V NO:5 A resistive / 2 A inductive @ AC 250 V 15 A resistive / 2 A inductive @ AC 120 V DC 30 W (DC 24‑72 V)
Max. inrush current	AC 16 A for 10 sec.
Housing	PC
Weight	40g

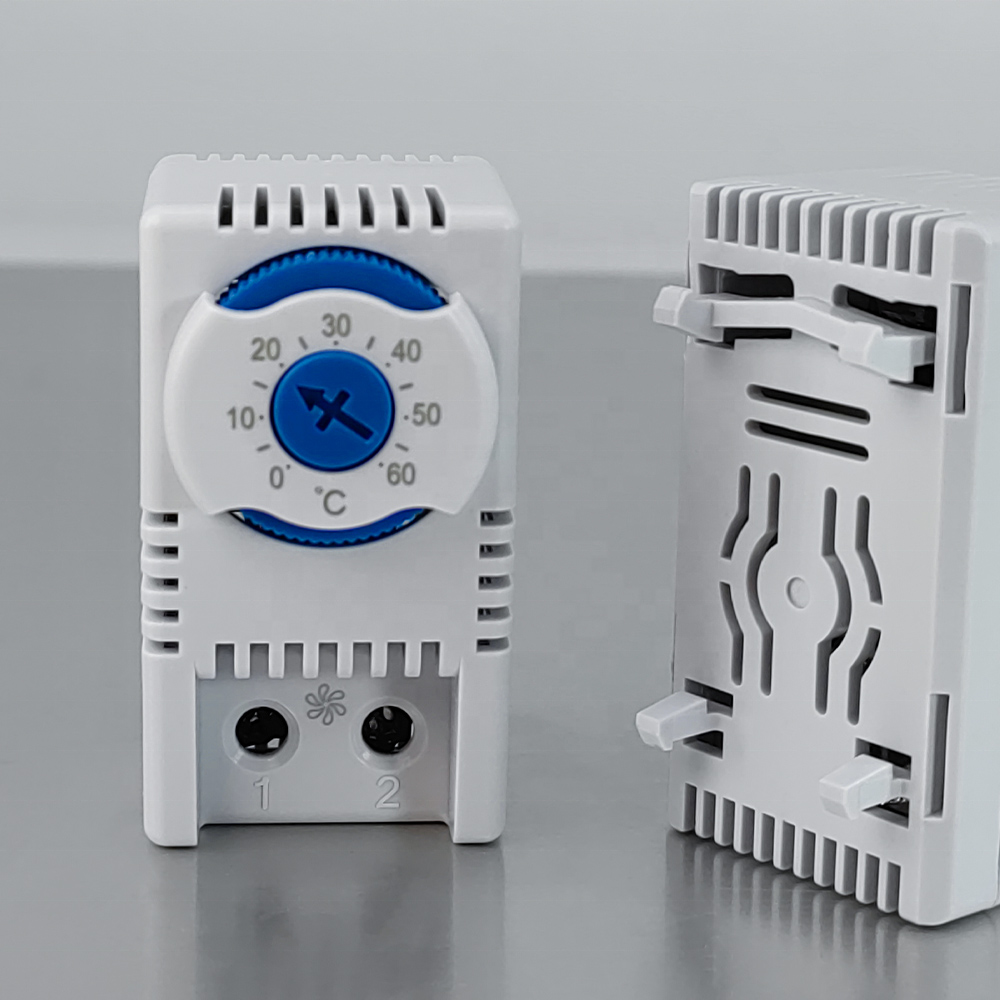

Mounting	Clip for 35 mm DIN rail

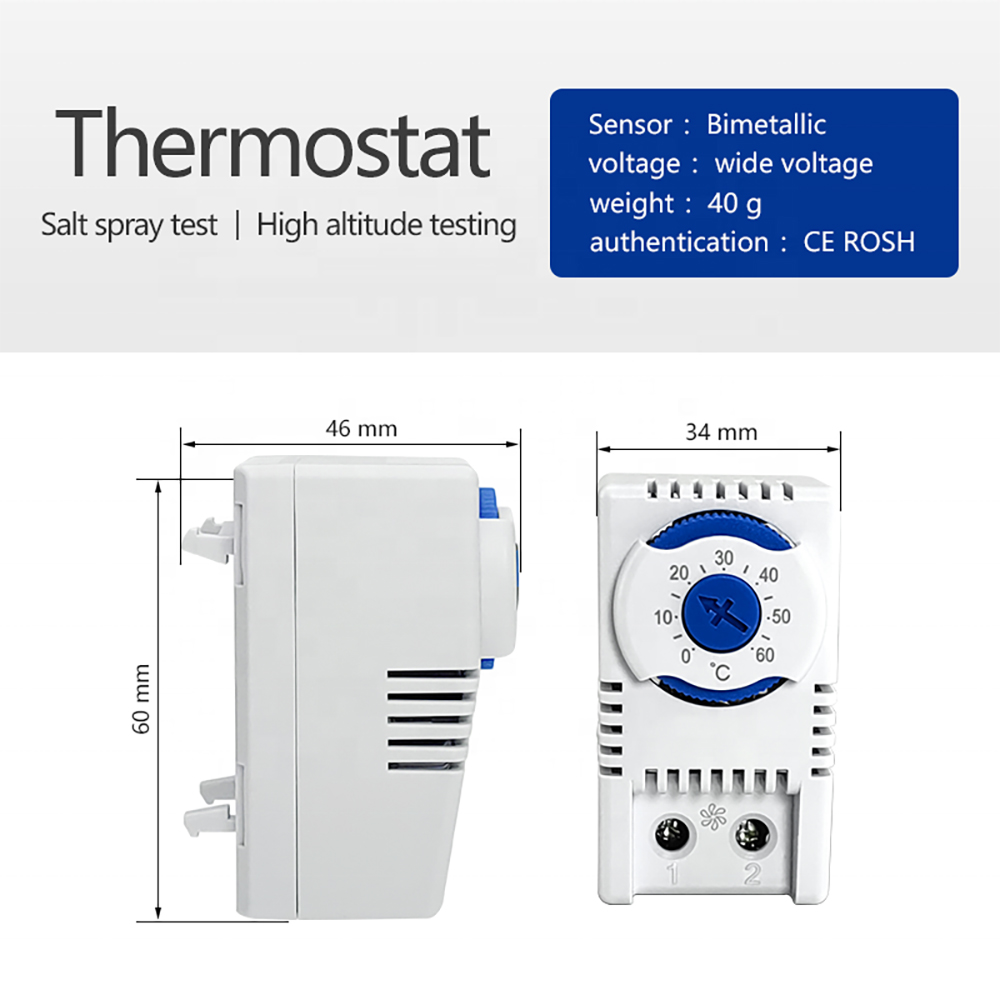

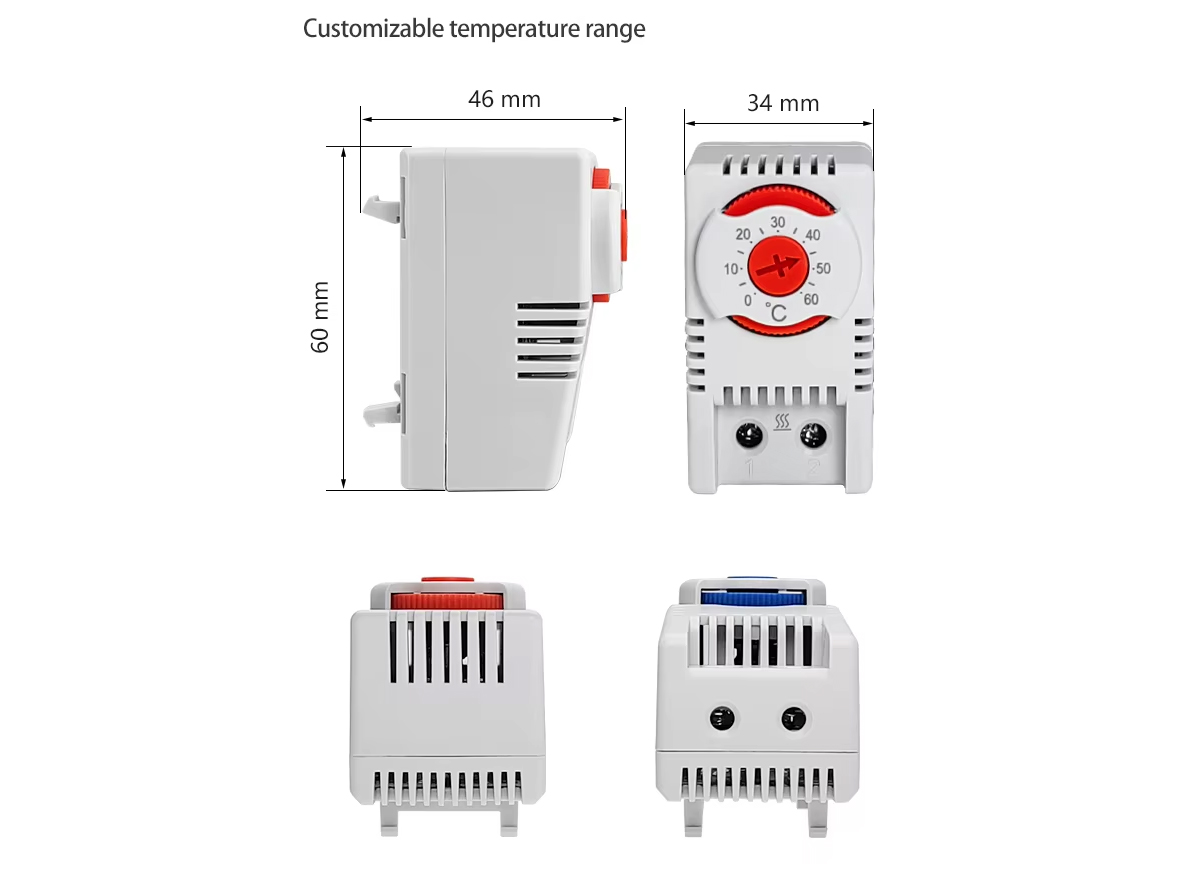

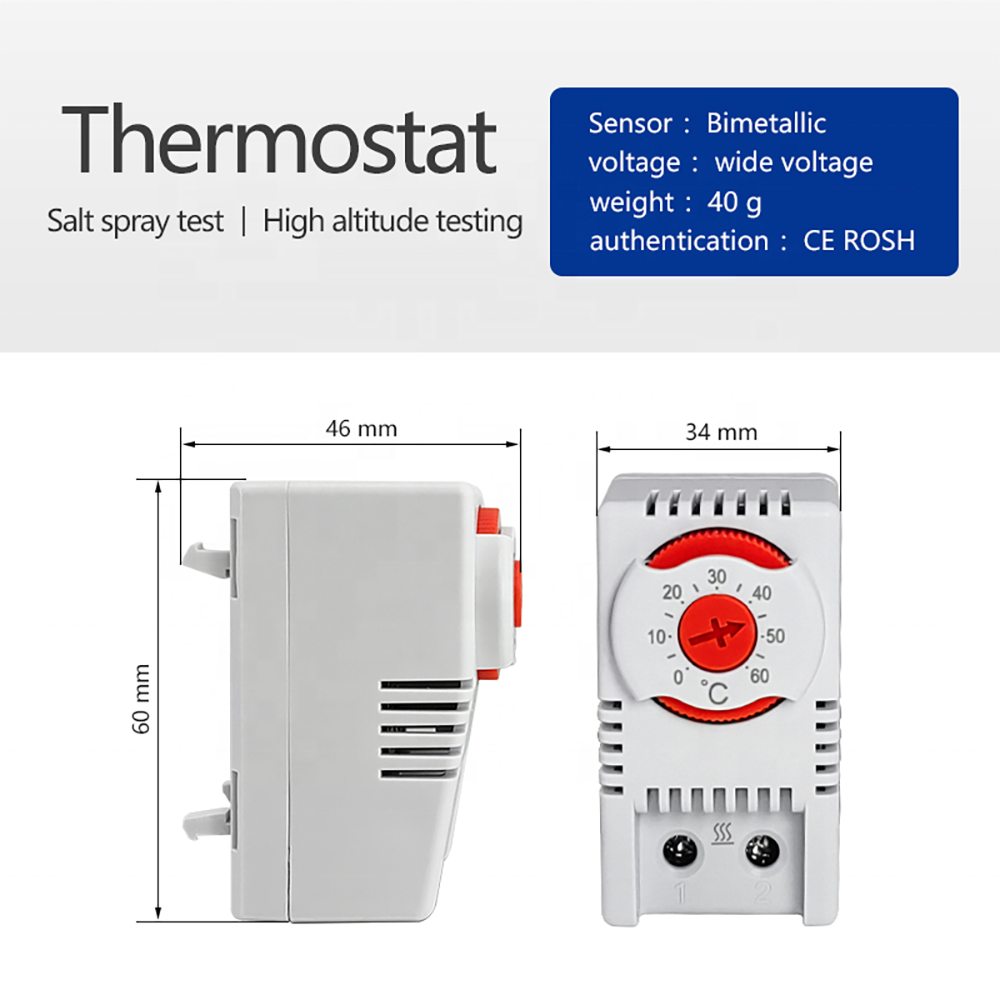

Dimensions	60 × 34 × 46 mm
Operating/Storage temperature	-49 to +176 °F (-45 to +80 °C)
Operating/Storage humidity	max. 90 %RH (non‑condensing)
Protection type	IP20

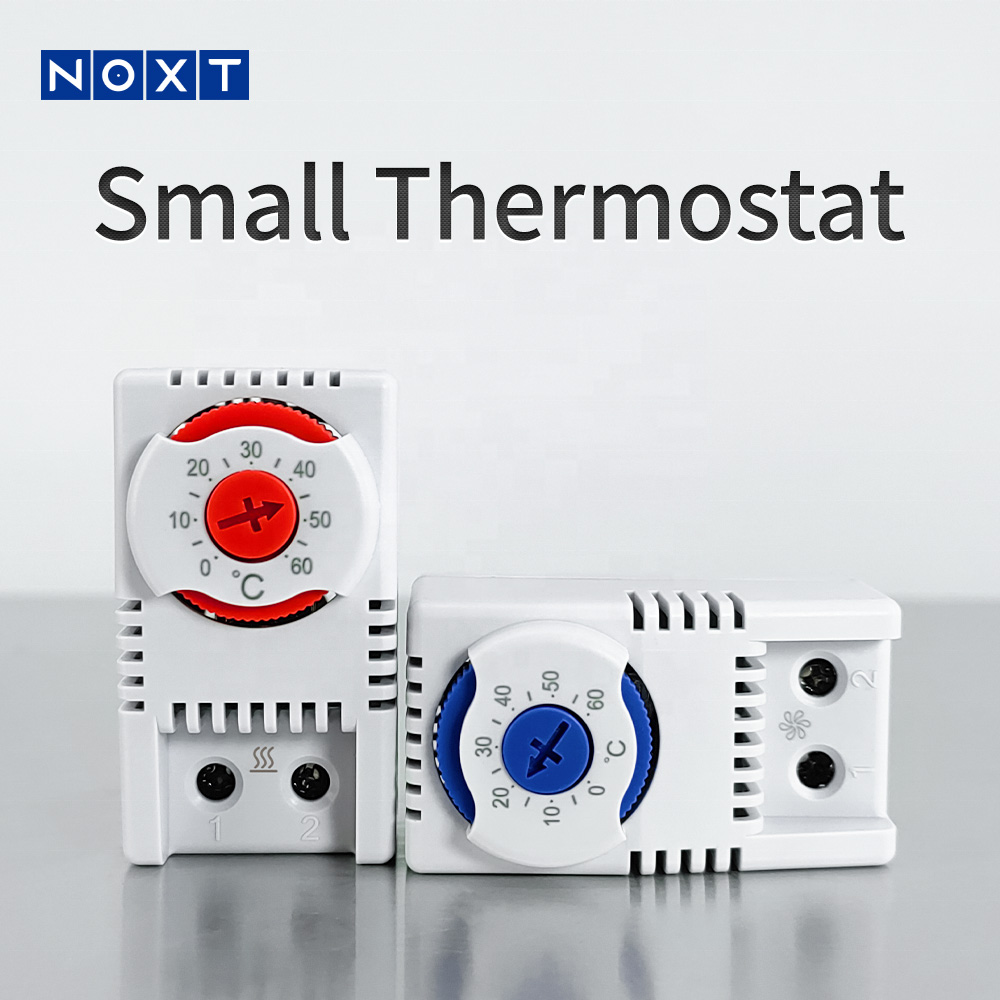

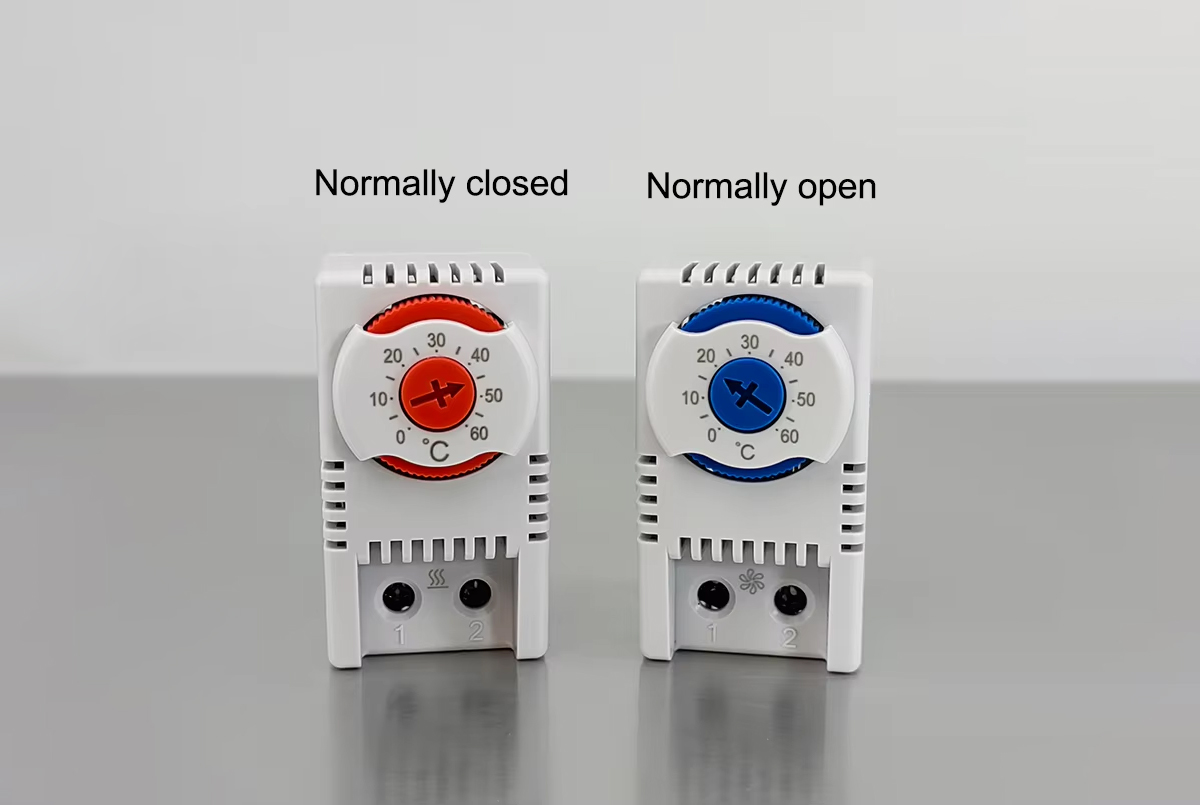

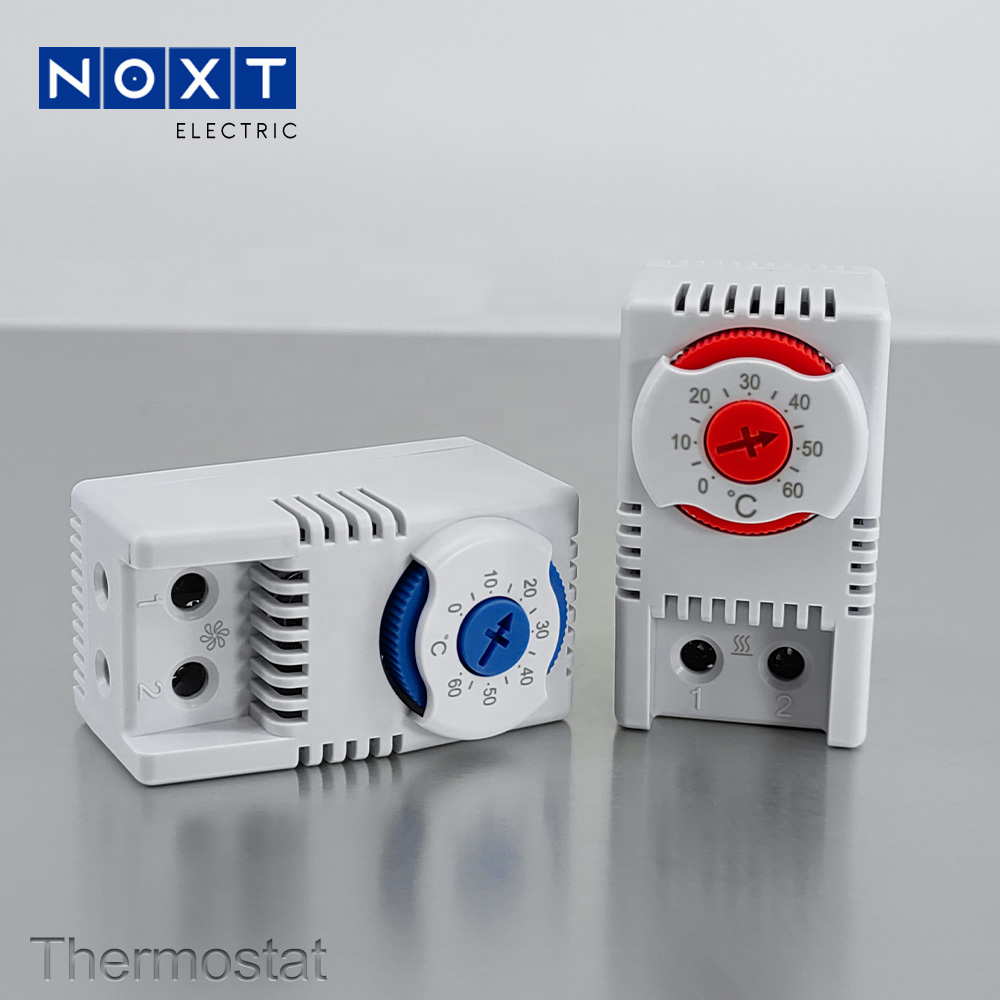

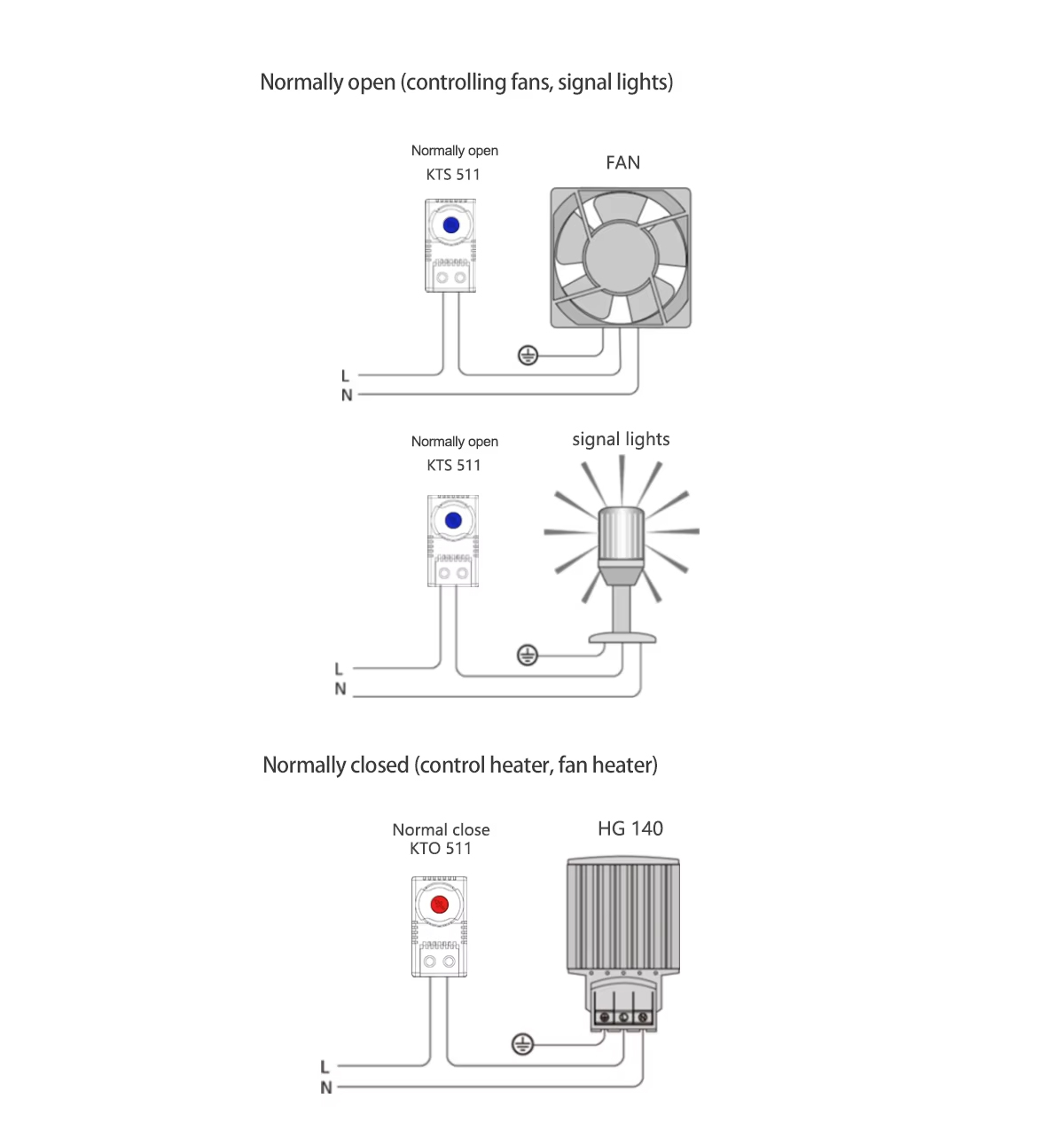

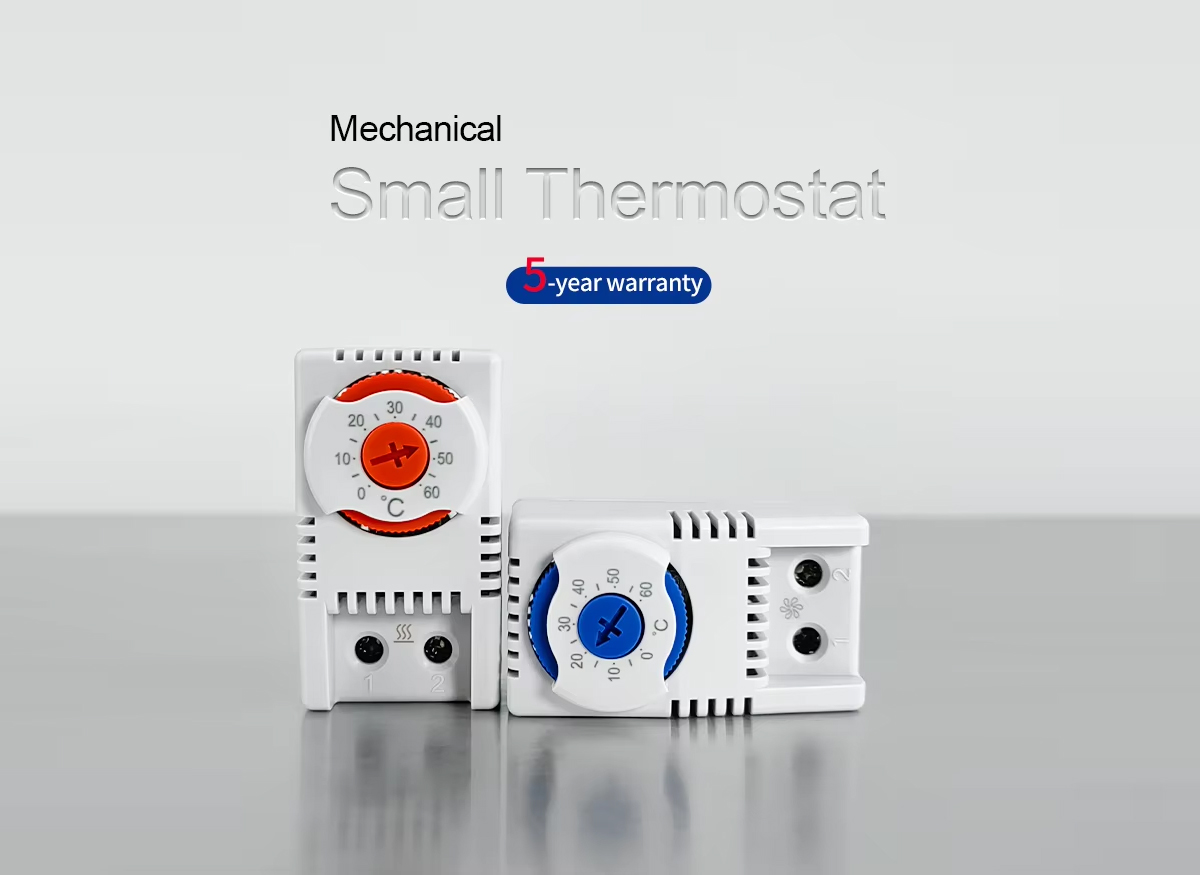

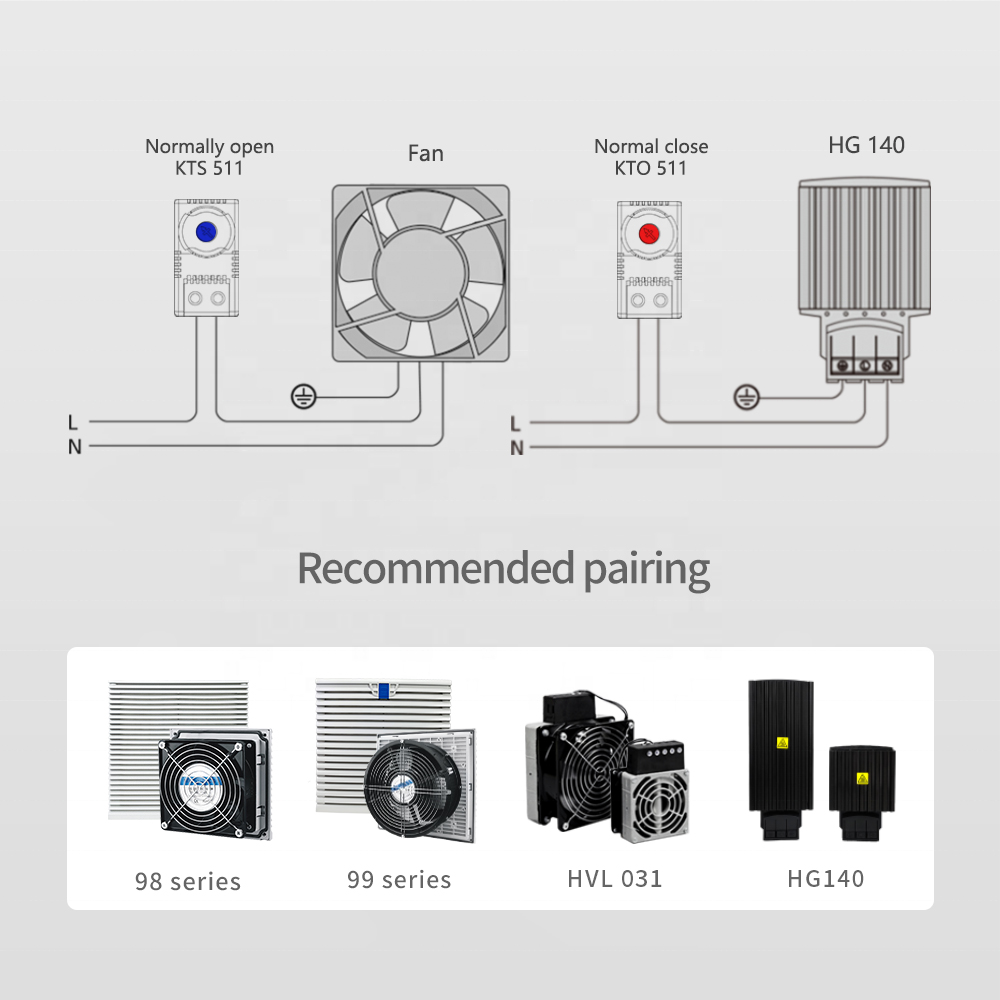

KTO511 compact mechanical bimetallic thermostats designed for electrical cabinet temperature control. KTO511 is normally‑closed for heater control, while KTS511 is normally‑open to trigger cooling fans.

With a durable snap‑action contact structure, long service life and wide voltage compatibility, these small DIN‑rail thermostats deliver reliable temperature regulation inside enclosures, preventing overheating or condensation.

The units have passed salt spray and 4000‑meter high‑altitude tests, suitable for harsh coastal and plateau working environments. Certified with CE & RoHS and backed by a 5‑year warranty, they are widely matched with cabinet heaters and cooling fans.

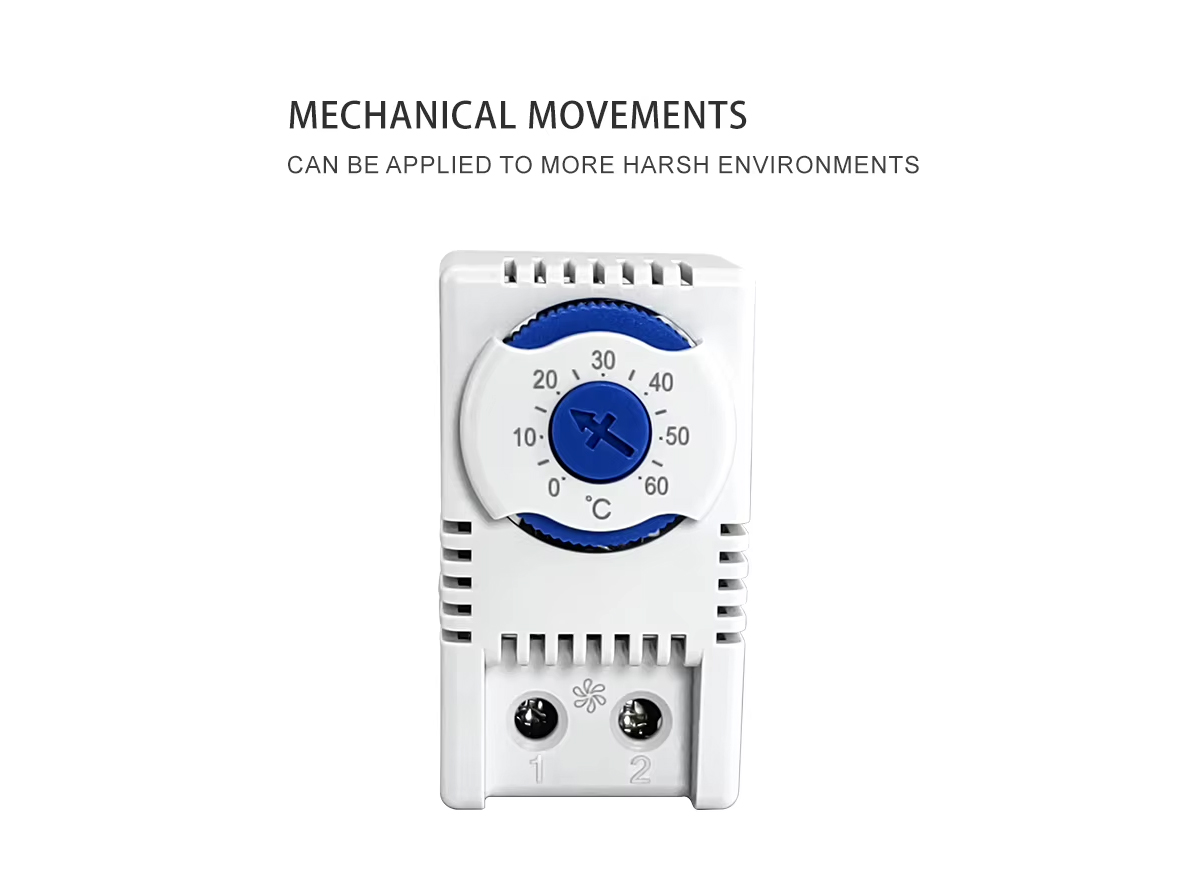

5-year warranty Normally closed MECHANICAL MOVEMENTS PASSING SALT SPRAY TESTING Normally open (controlling fans, signal lights) Customizable temperature range
