Key Specifications

Technical Item	Parameter
Switching difference	12.6 °F ±7 °F tolerance (7 K ±4 K)
Sensor element	thermostatic bimetal
Contact type	snap‑action contact
Service life	> 100,000 cycles
Max. switching capacity	NC:10 A resistive / 2 A inductive @ AC 250 V NO:5 A resistive / 2 A inductive @ AC 250 V 15 A resistive / 2 A inductive @ AC 120 V DC 30 W (DC 24‑72 V)
Max. inrush current	AC 16 A for 10 sec.
Housing	PC
Weight	50 g

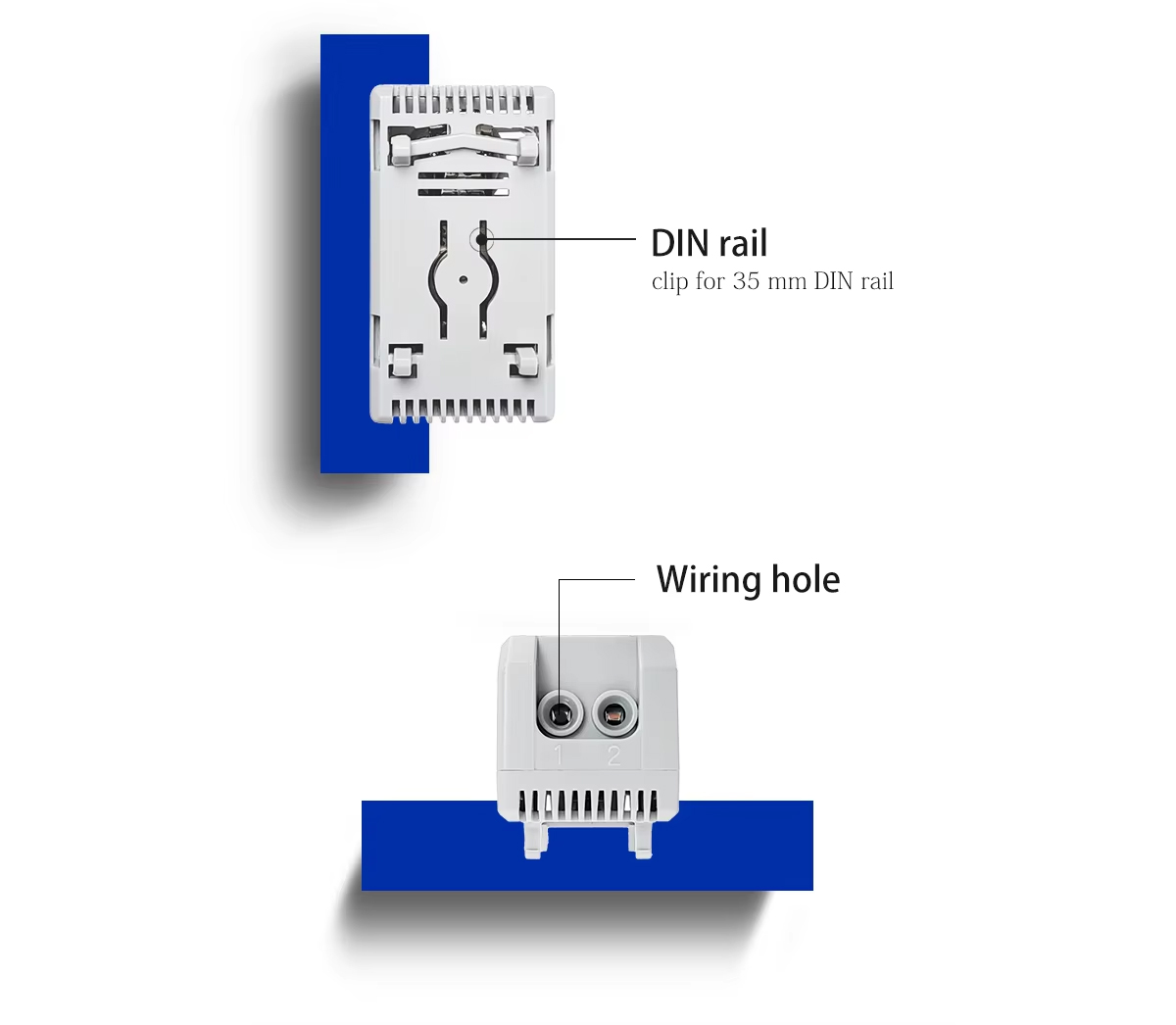

Mounting	clip for 35 mm DIN rail

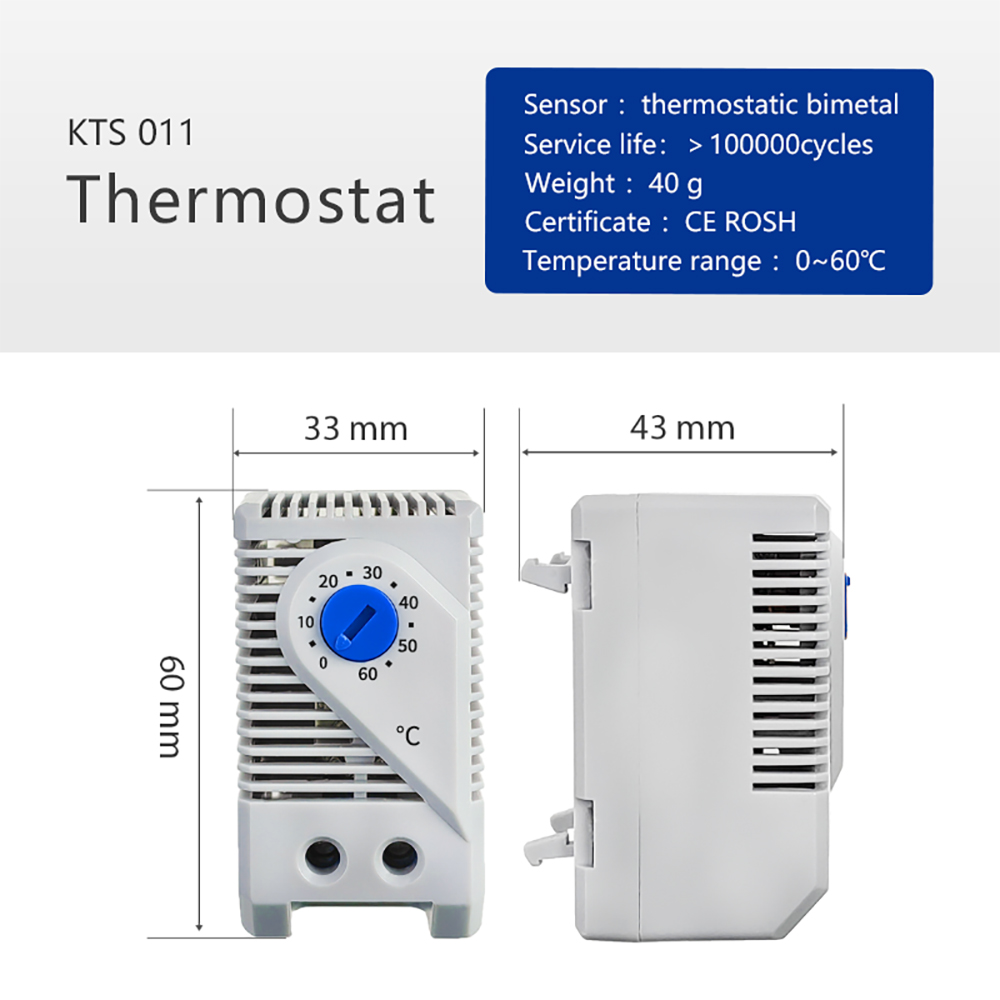

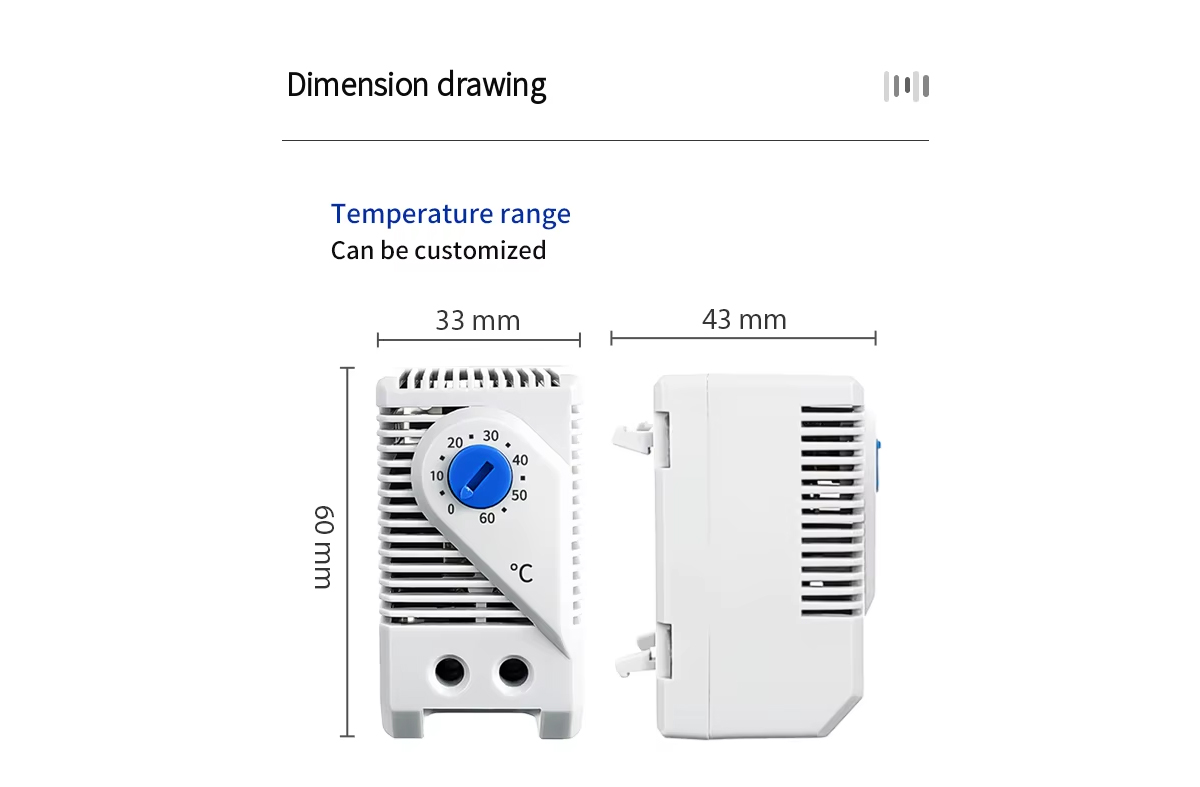

Dimensions	60 × 33 × 43 mm
Operating/Storage temperature	-49 to +176 °F (-45 to +80 °C)
Operating/Storage humidity	max. 90 %RH (non‑condensing)
Protection type	IP20

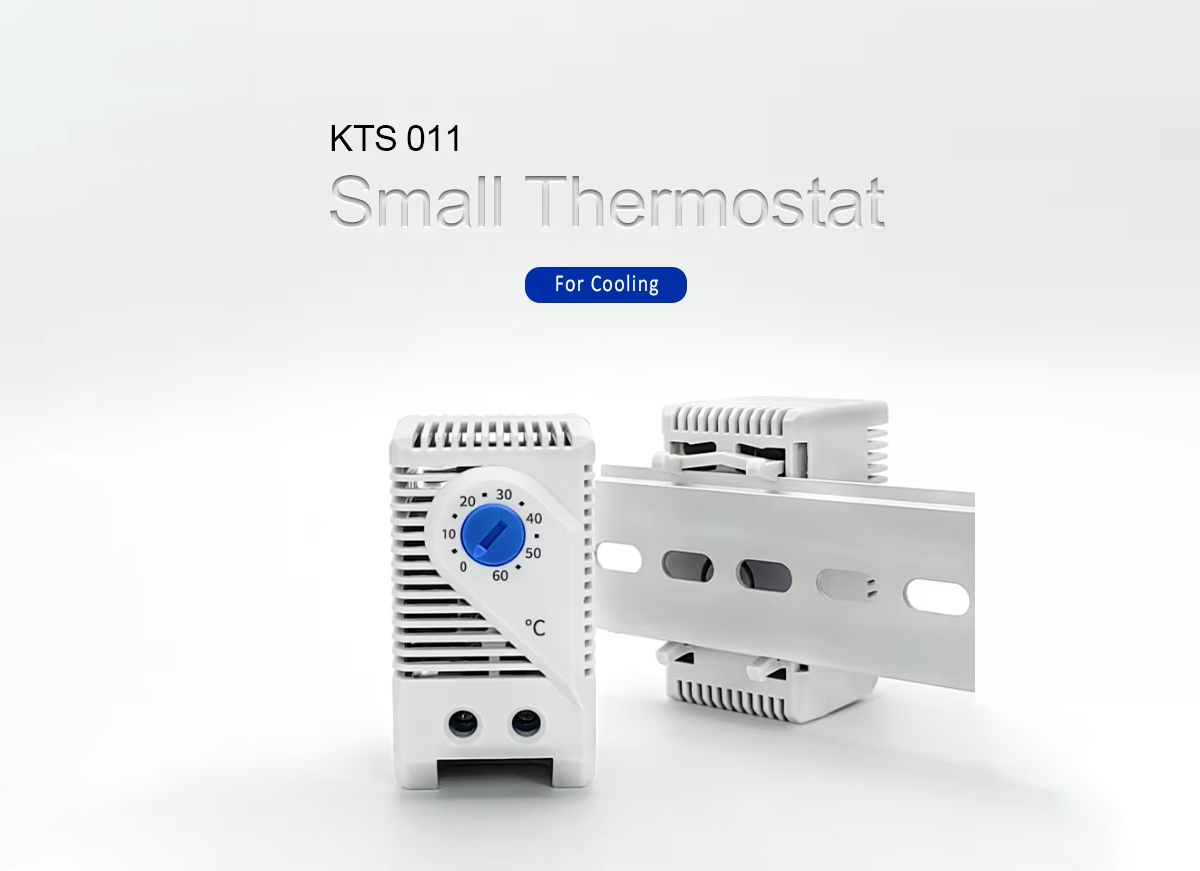

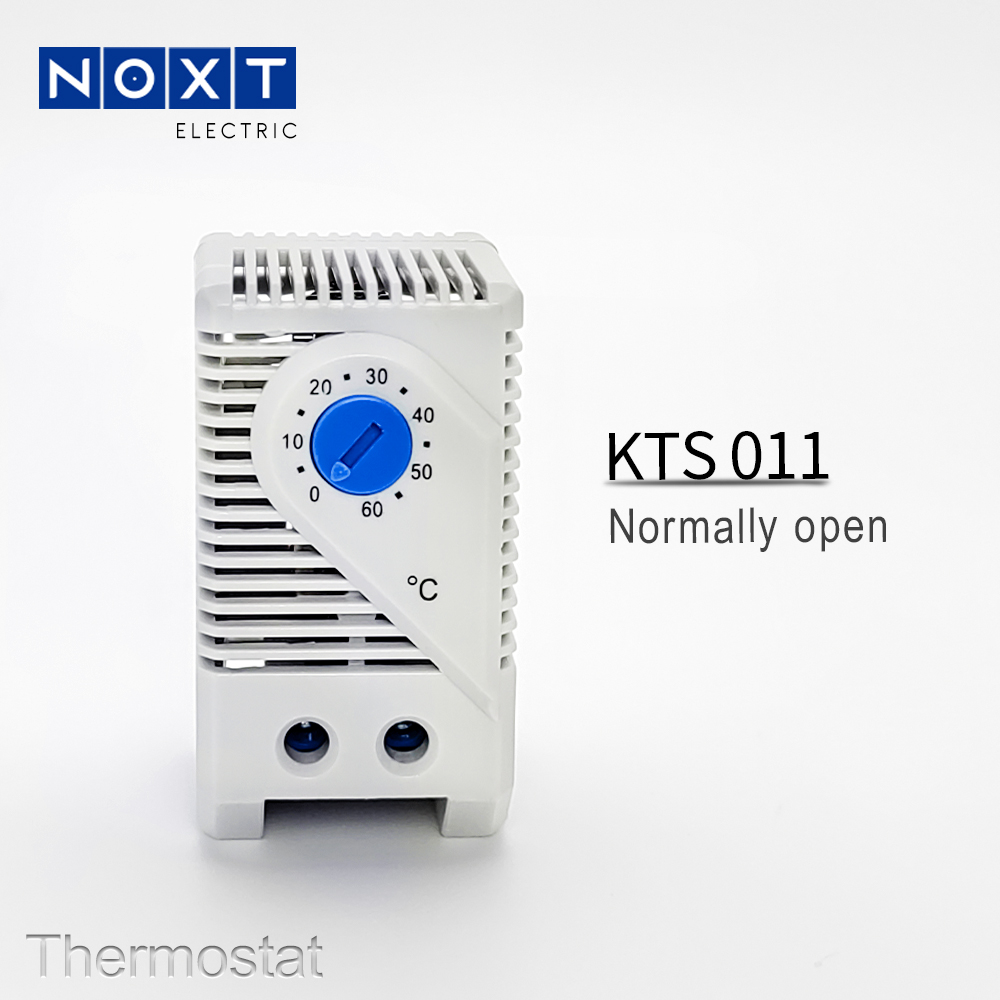

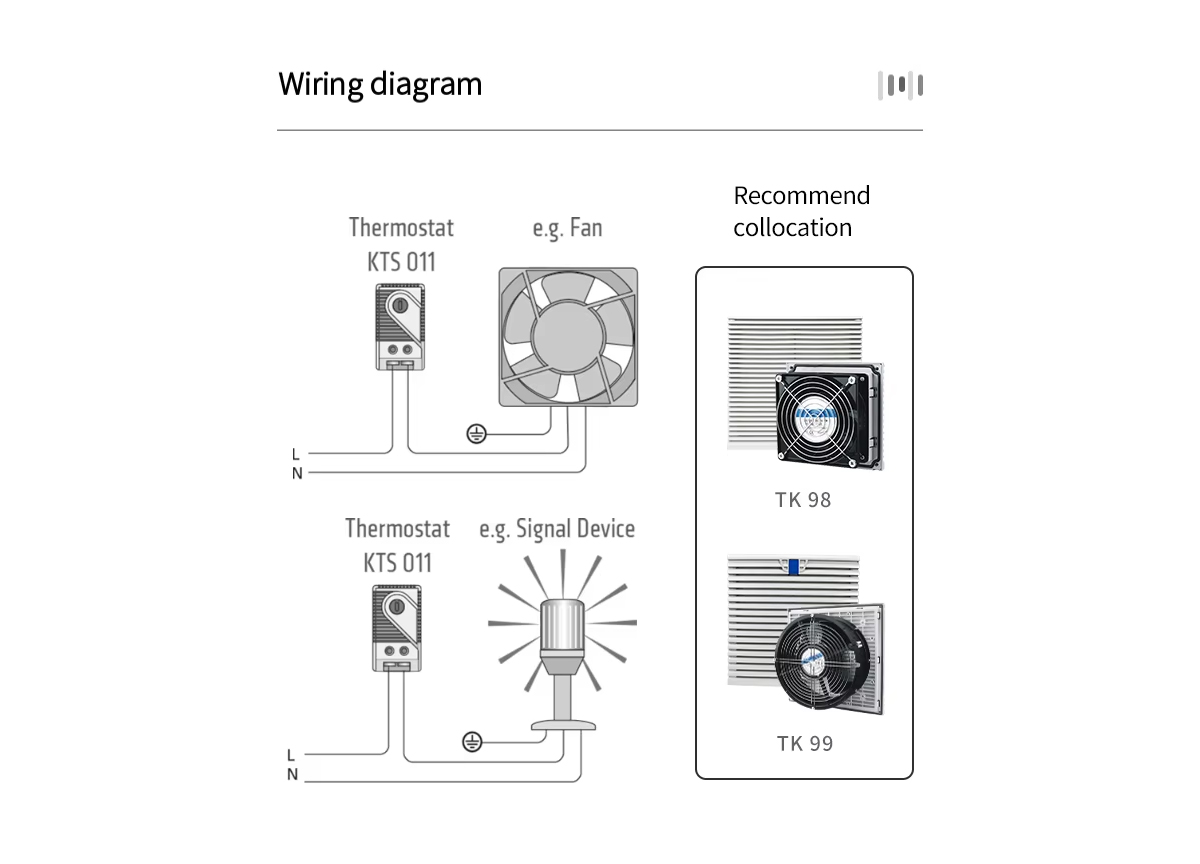

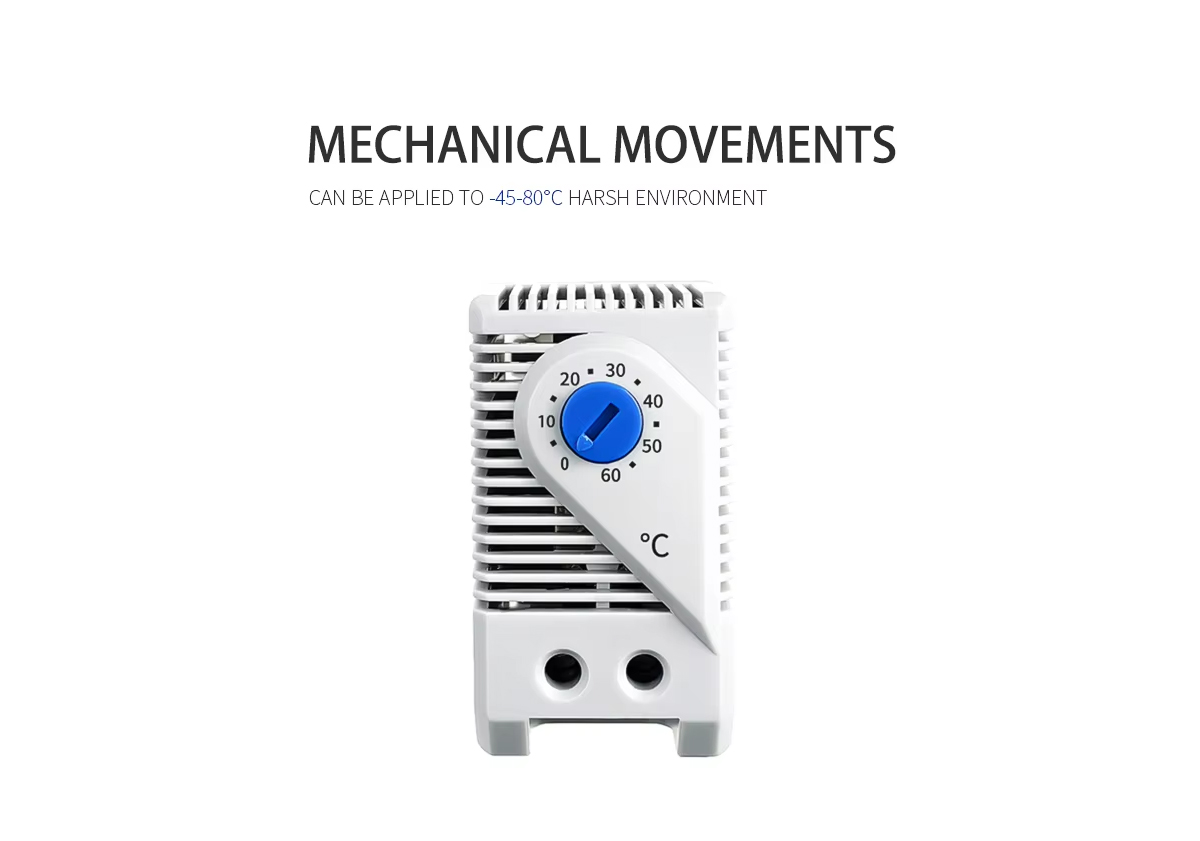

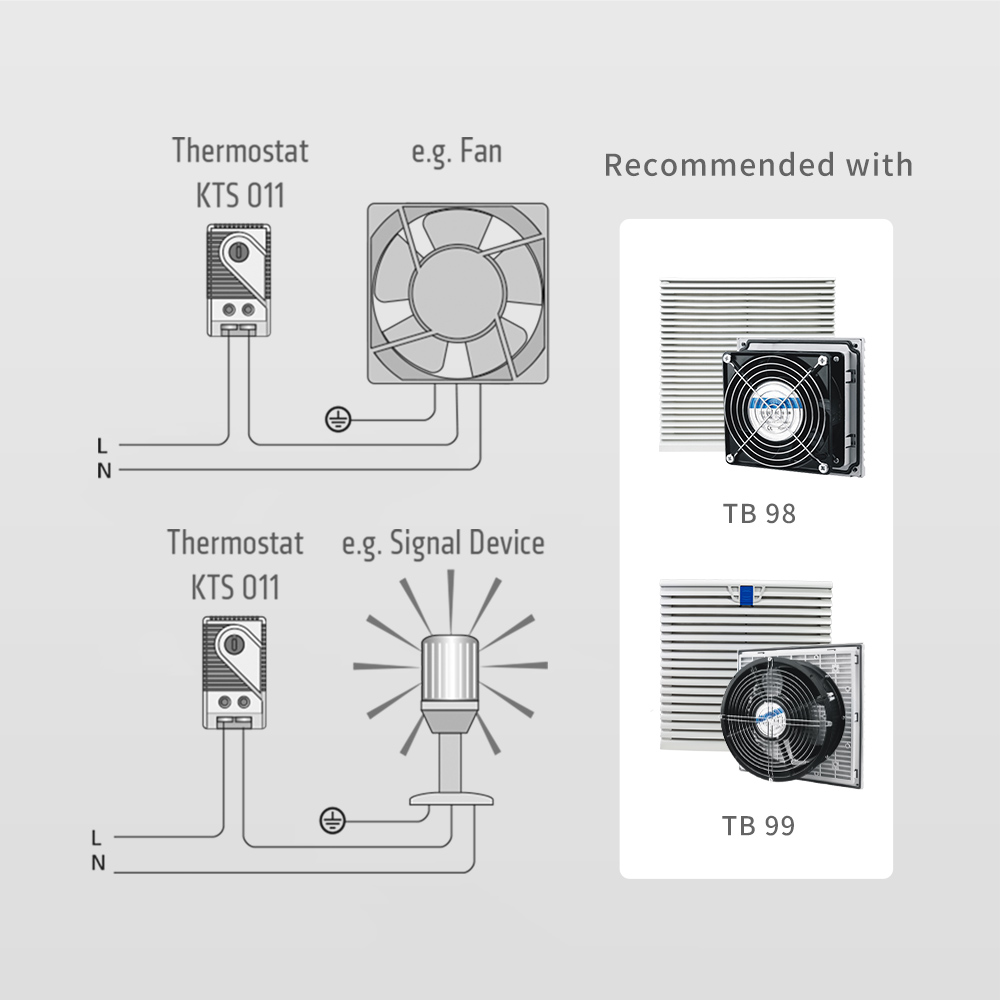

KTS011 is a normally‑open mechanical cabinet thermostat dedicated to cooling control. Built with thermostatic bimetal sensing element and snap‑action contact structure, it automatically activates cooling fans or alarm signal devices once the internal cabinet temperature exceeds your preset value, effectively preventing electrical components from overheating.

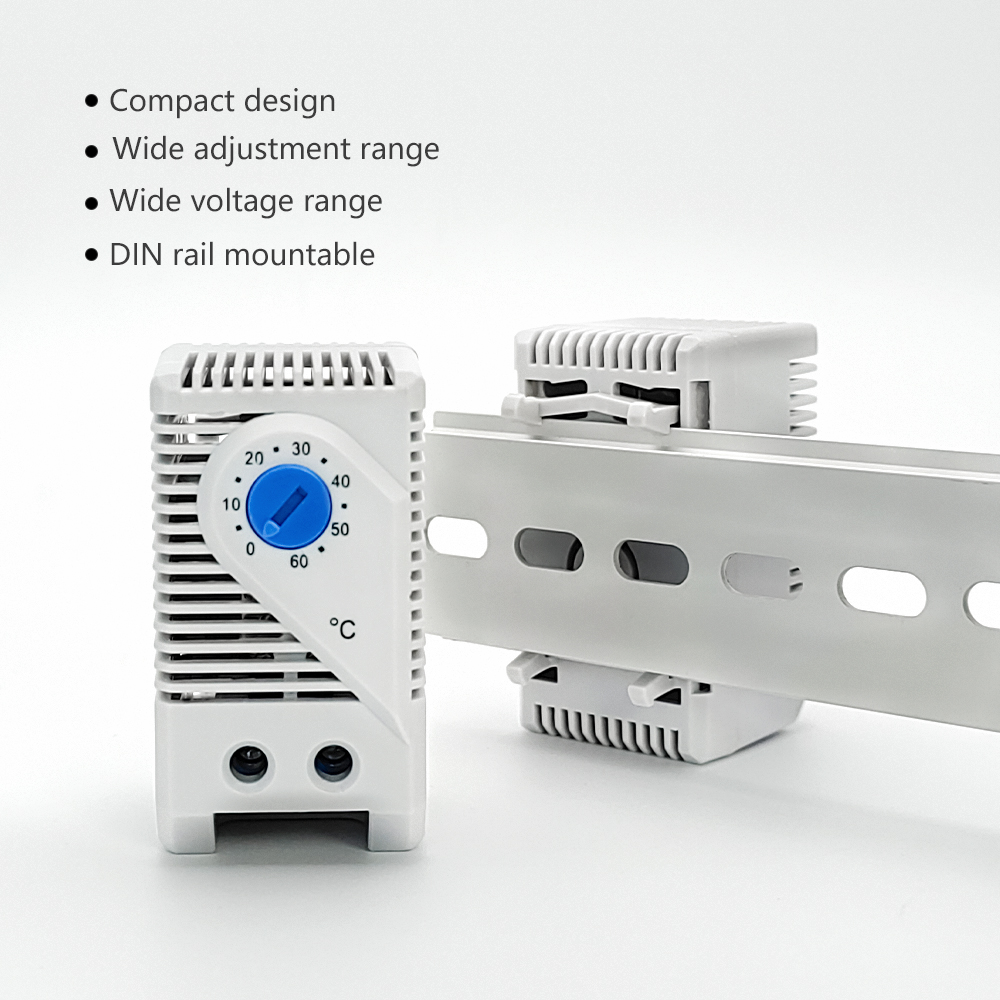

This compact temperature controller adopts standard 35 mm DIN‑rail installation, featuring wide temperature adjustment range and broad voltage compatibility. It has obtained CE, VDE, CQC, RoHS and ISO9001 certifications, delivering stable and long‑term performance for industrial control cabinets under complex working conditions.
