THERMOSTATS
| Item | Parameter |
|---|---|
| Sensor Type | Bimetallic |
| Working Voltage | Wide voltage |
| Net Weight | 40 g |
| Certification | CE,ROHS |

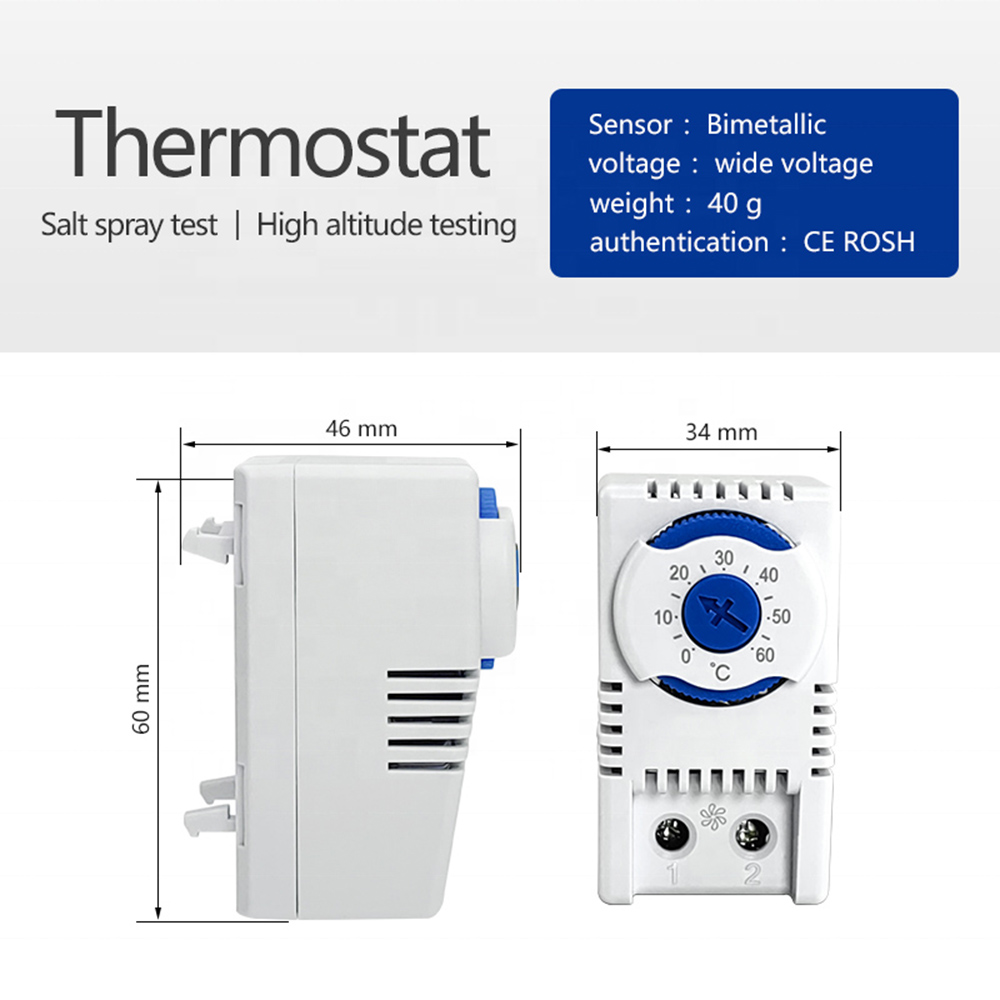

| Dimension | 60mm × 46mm ×34mm |
| Temperature Range | 0~60℃ |
| Contact Type | Normally Open (NO, Blue Dial) |
| Installation | DIN Rail Mount |
| Warranty | 5 years |
| Reliability Test | Salt spray test,4000m high altitude test |

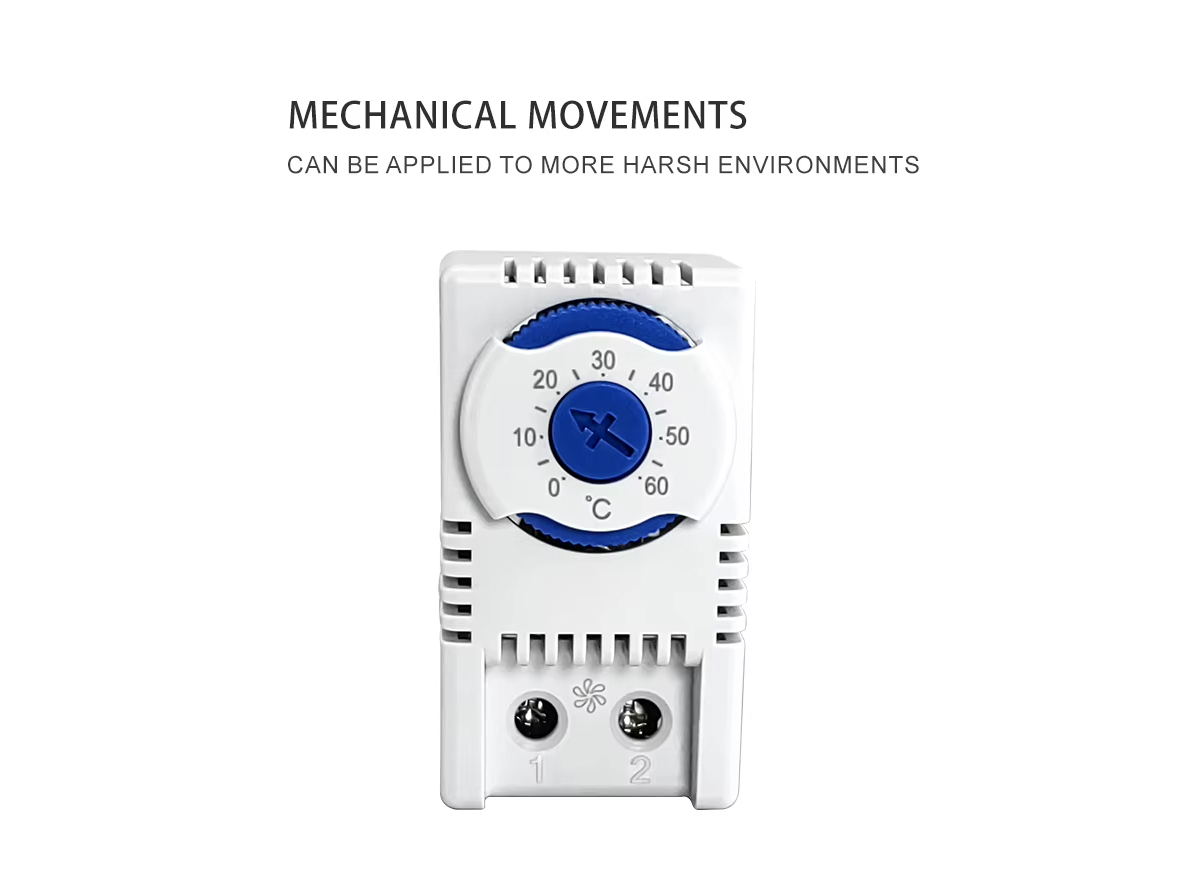

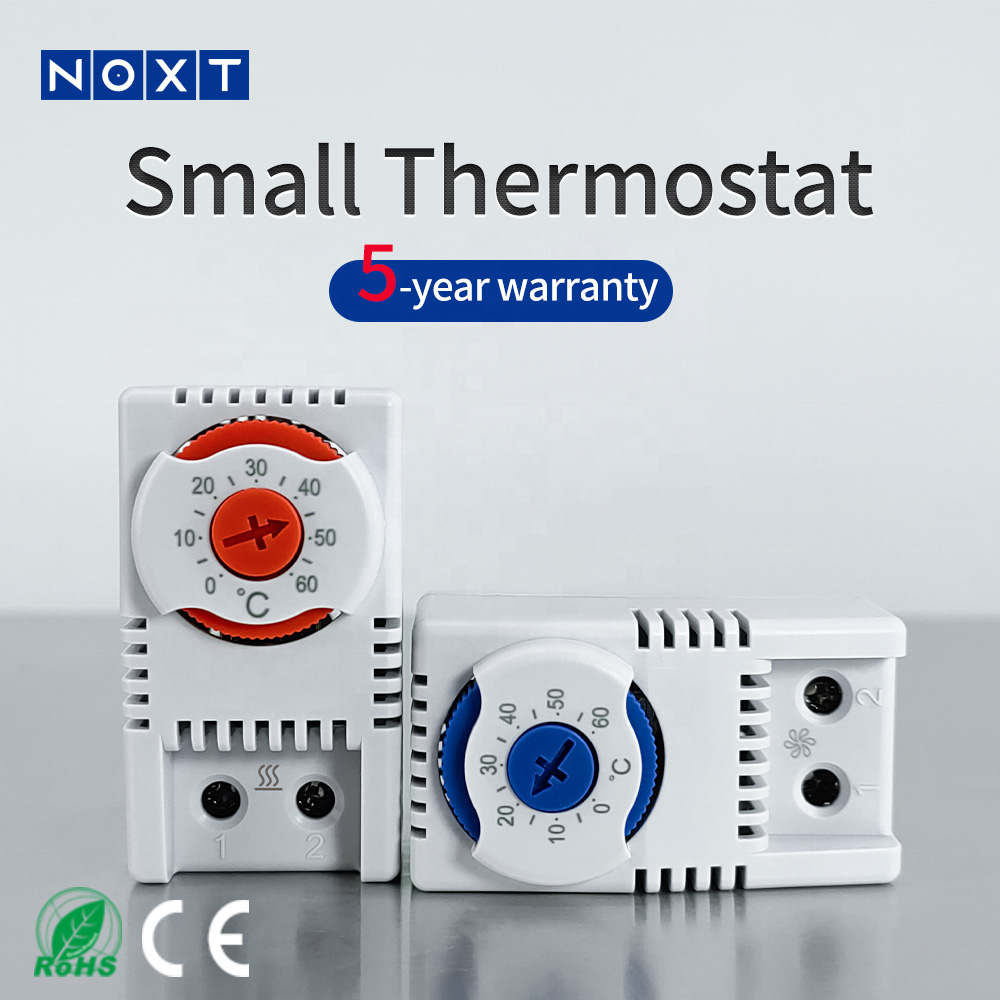

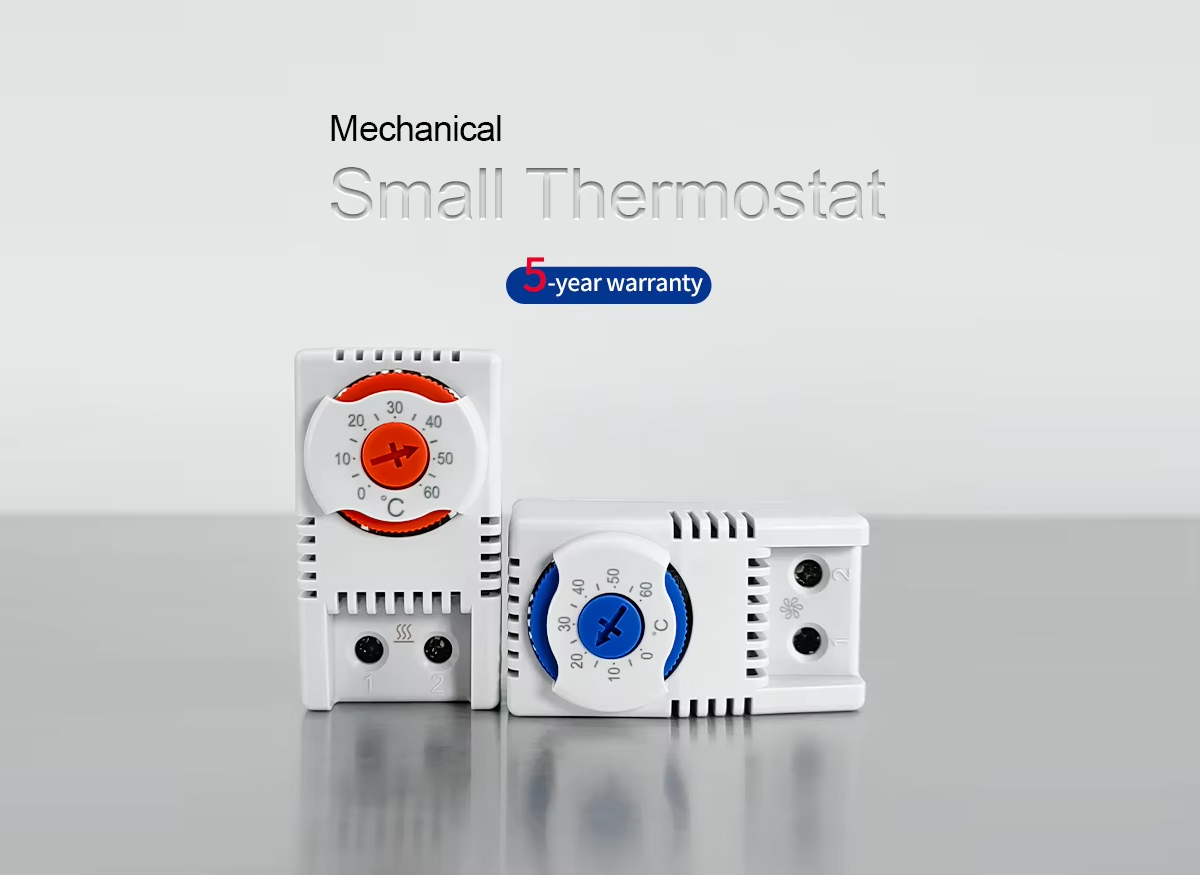

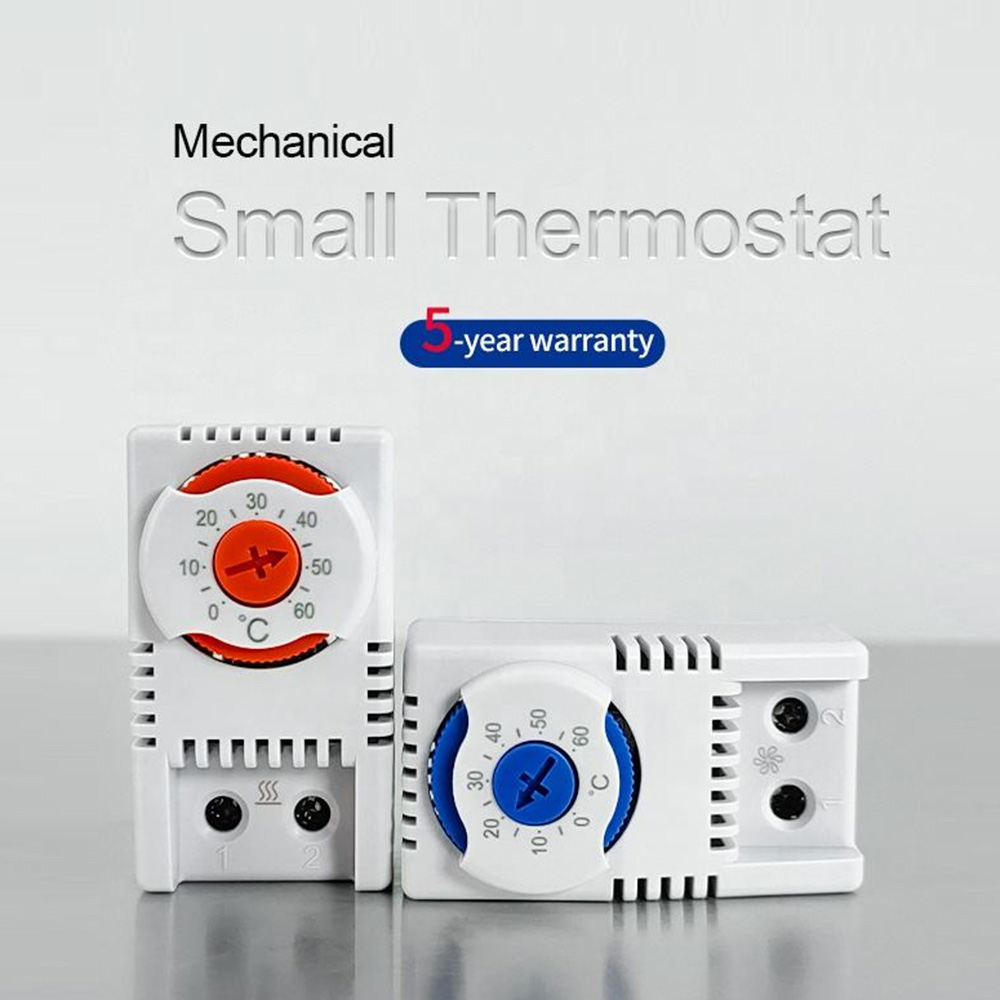

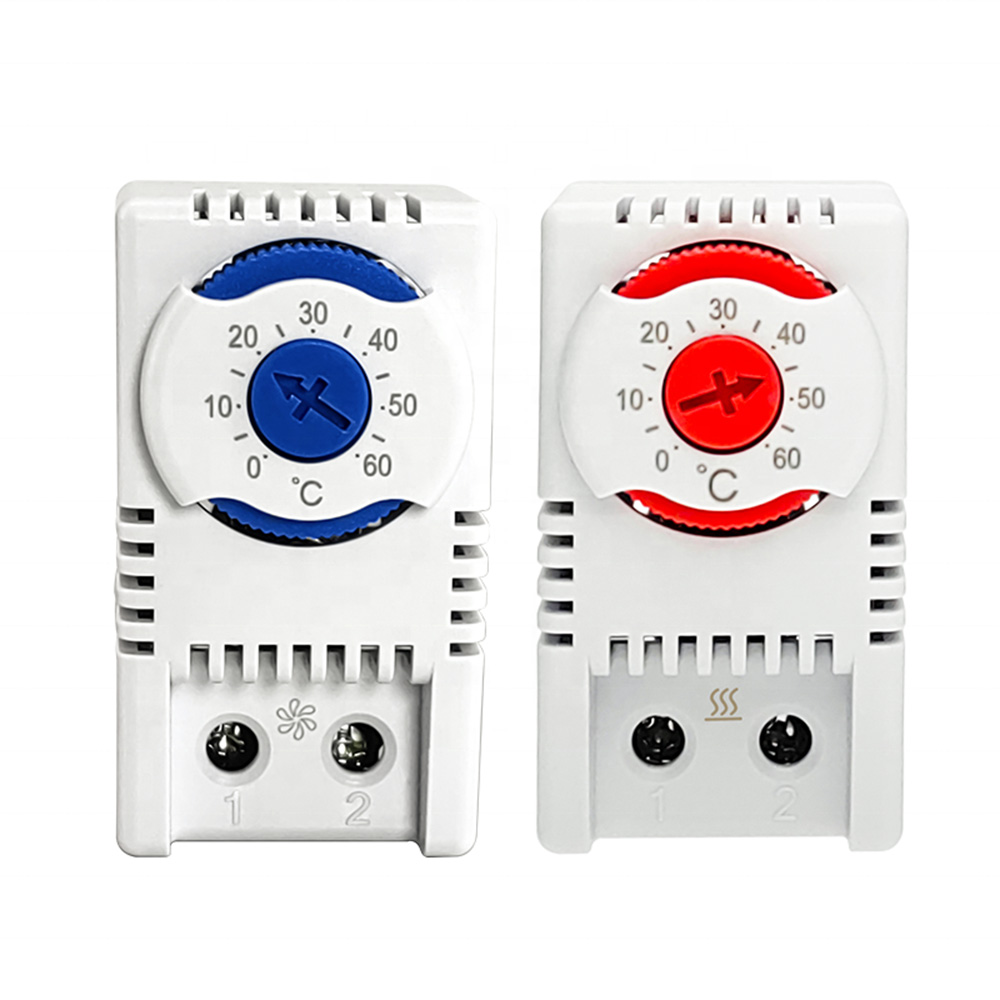

KTS511 is a compact bimetallic mechanical normally‑open thermostat, widely used inside electrical enclosures. It automatically activates cooling fans or warning indicators once the cabinet temperature rises above the preset value, preventing overheating damage to electronic components.

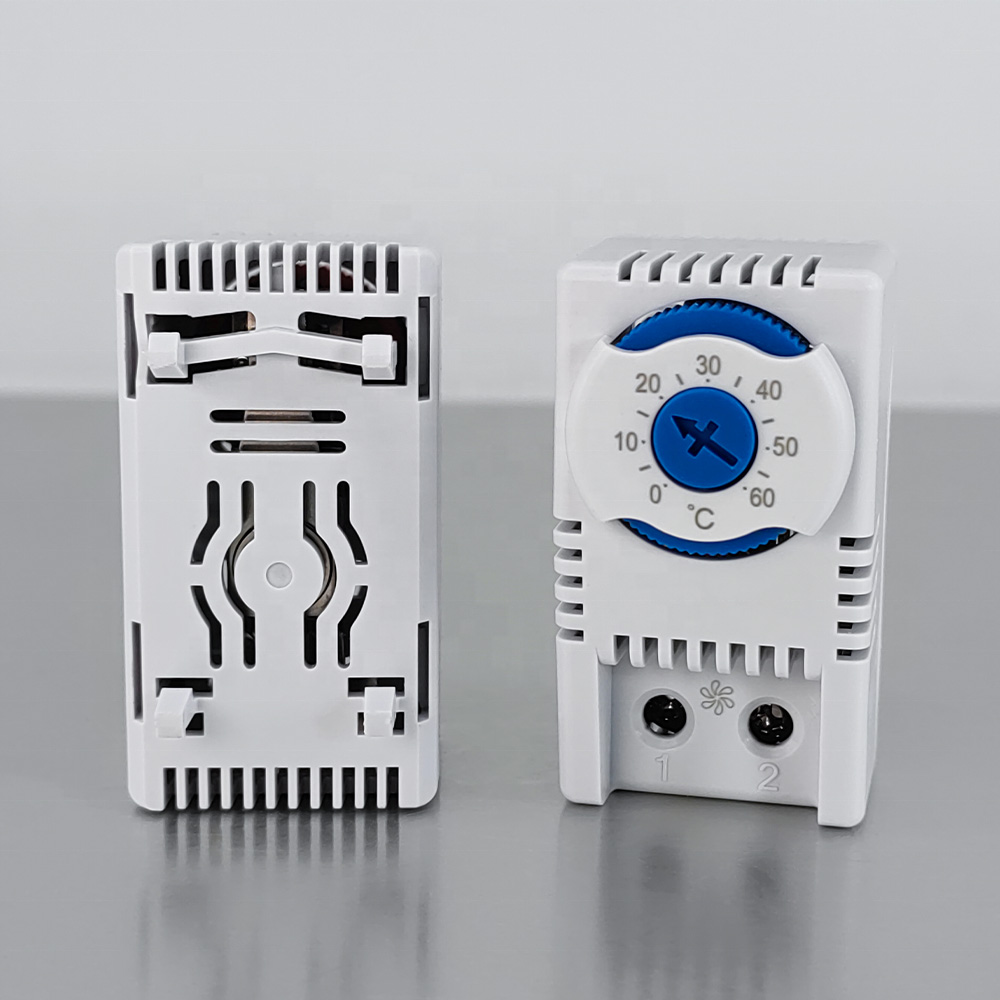

With a small size of 60×46×34 mm and only 40 g weight, it adopts a DIN‑rail mounting design for quick installation. It has passed salt spray test and 4000‑meter high‑altitude reliability test, delivers wide‑voltage compatibility, and is certified CE & RoHS. Backed by a 5‑year warranty, this durable temperature controller offers stable on‑off operation without complex circuits.
Test report per batch
Datasheet + test report
CADs, logos, test reporting
1-5 pcs for qualified buyers

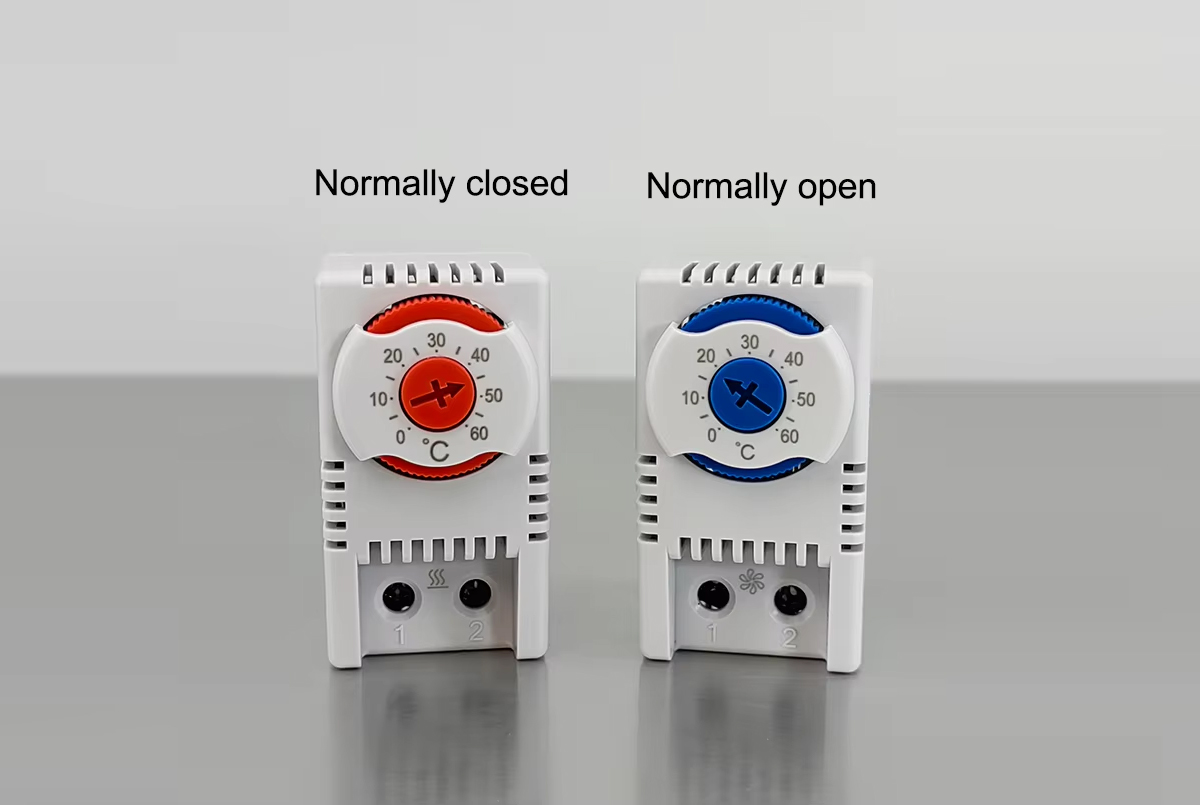

Not recommended. KTS511 is normallyu2011open and designed for cooling equipment. Choose KTO511 normally closed model if you need to control heating elements.

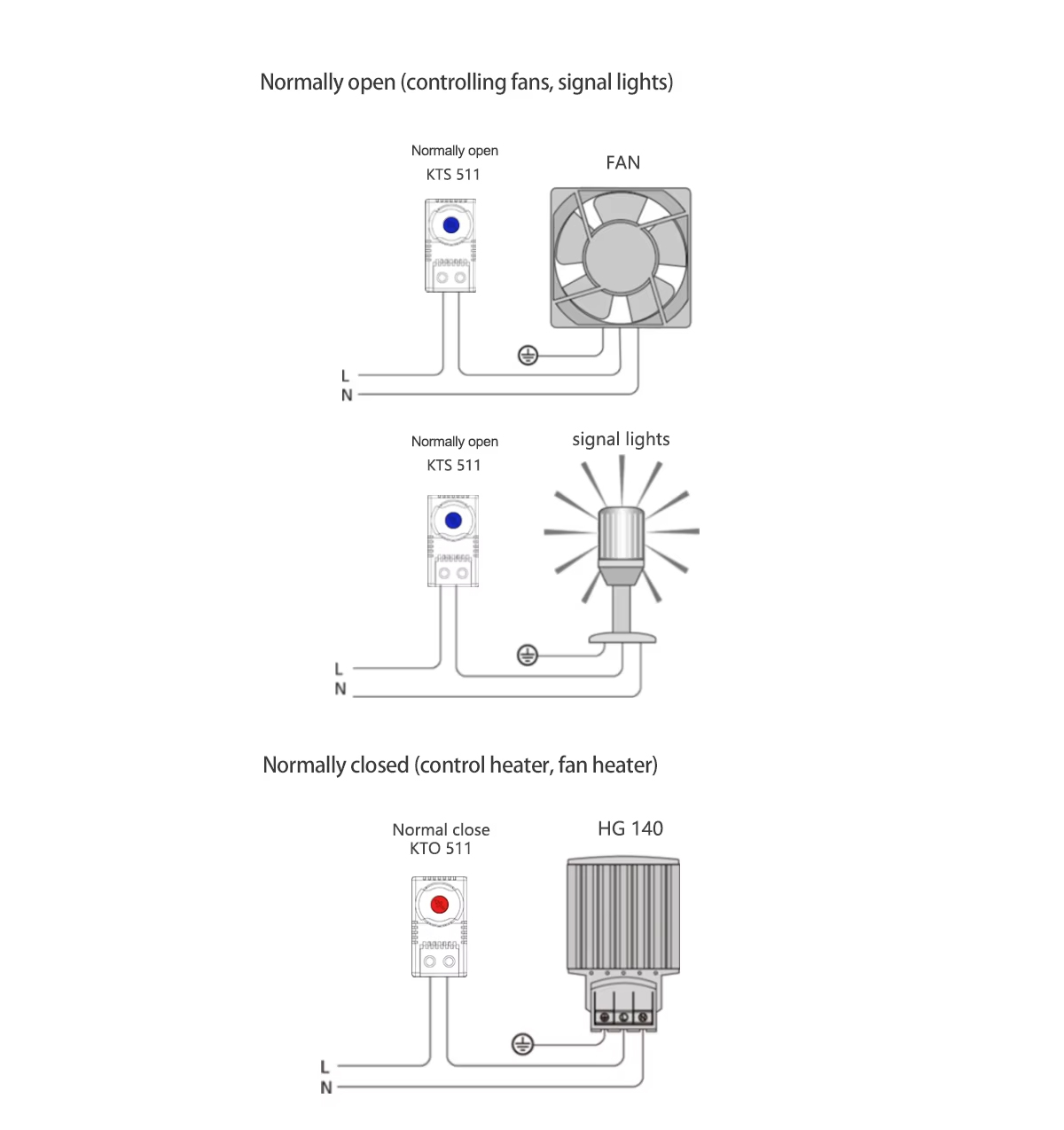

Installation is easy. Just snap it onto standard DIN rail. It only has two wiring terminals. Connect it in series with cooling fan or warning light following our wiring diagram, no programming required.
Yes. The thermostat has passed professional saltu2011spray corrosion test and 4000u2011meter highu2011altitude test. It maintains stable performance in humid, saltu2011laden coastal areas and thinu2011air highland working sites.
