Intelligent dehumidifier
| Item | Specification |
|---|---|
| Switching difference | 1K±0.8K |
| Sensor element | NTC |
| Adjusting range | -20℃ to +60℃ |
| Voltage scope | 24V–230V |
| Housing | PC, UL94V‑0 plastic |

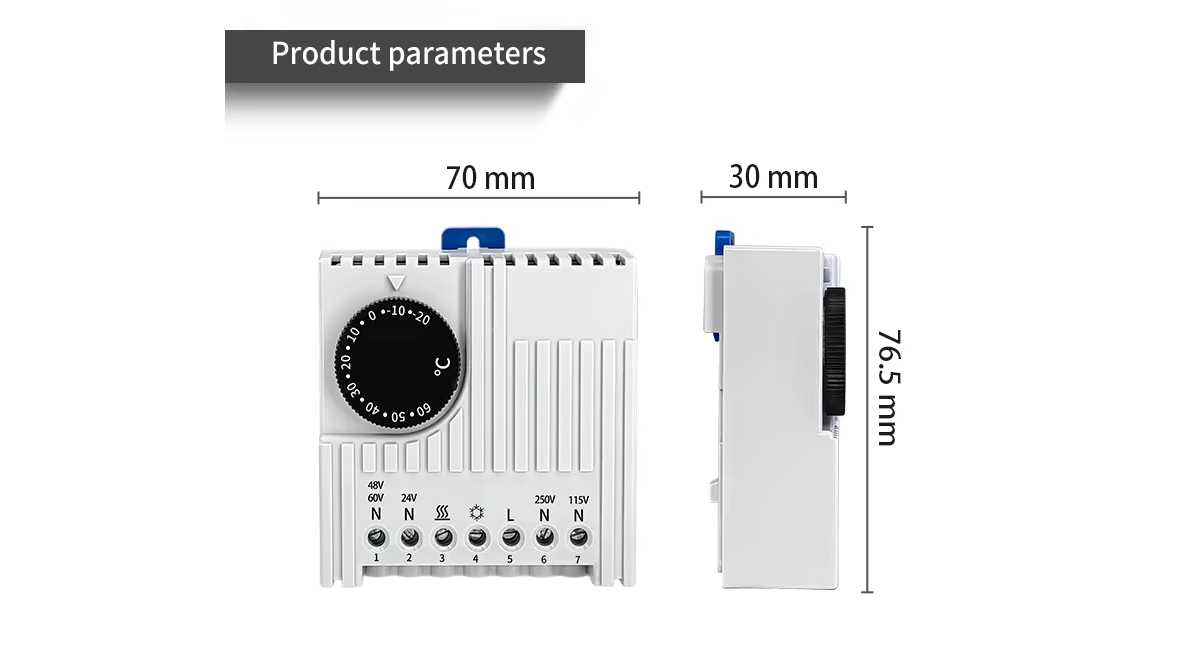

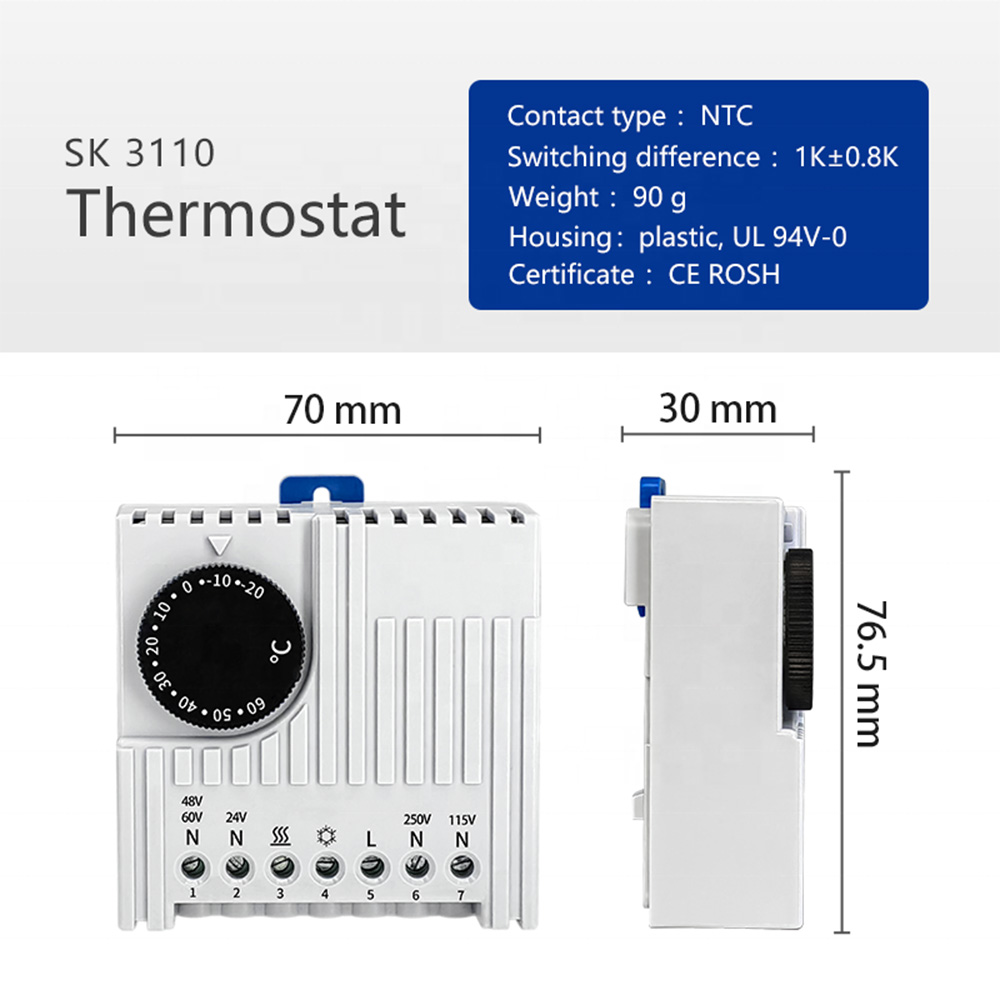

| Dimensions | 76.57030mm |
| Weight | Approx.90g |
| Mounting | Clip for 35 mm DIN rail |
| Fitting position | Vertical |
| Operating/Storage temperature | -45℃ to +80℃（‑49℉ ~+176℉） |
| Operating/Storage humidity | Max.90%RH(non‑condensing) |
| Protection type | IP20 |
| Certification | CE,ROHS |

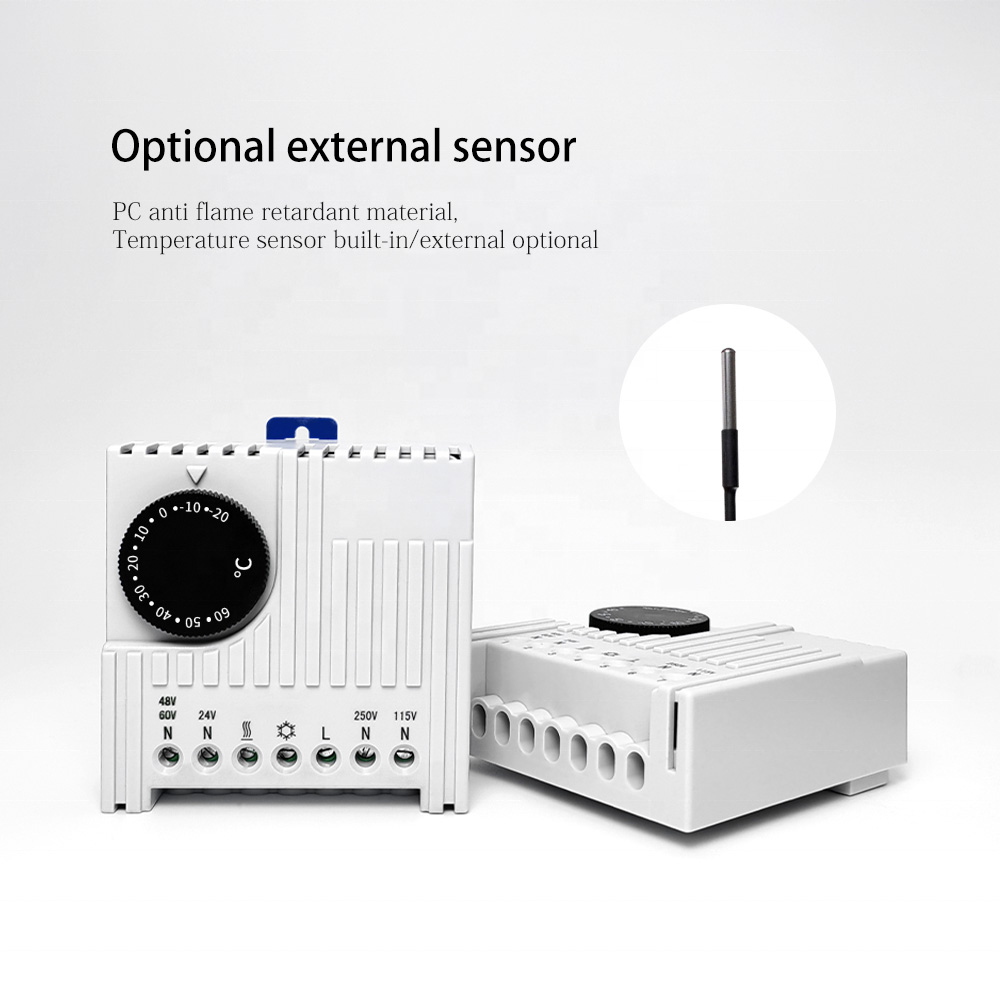

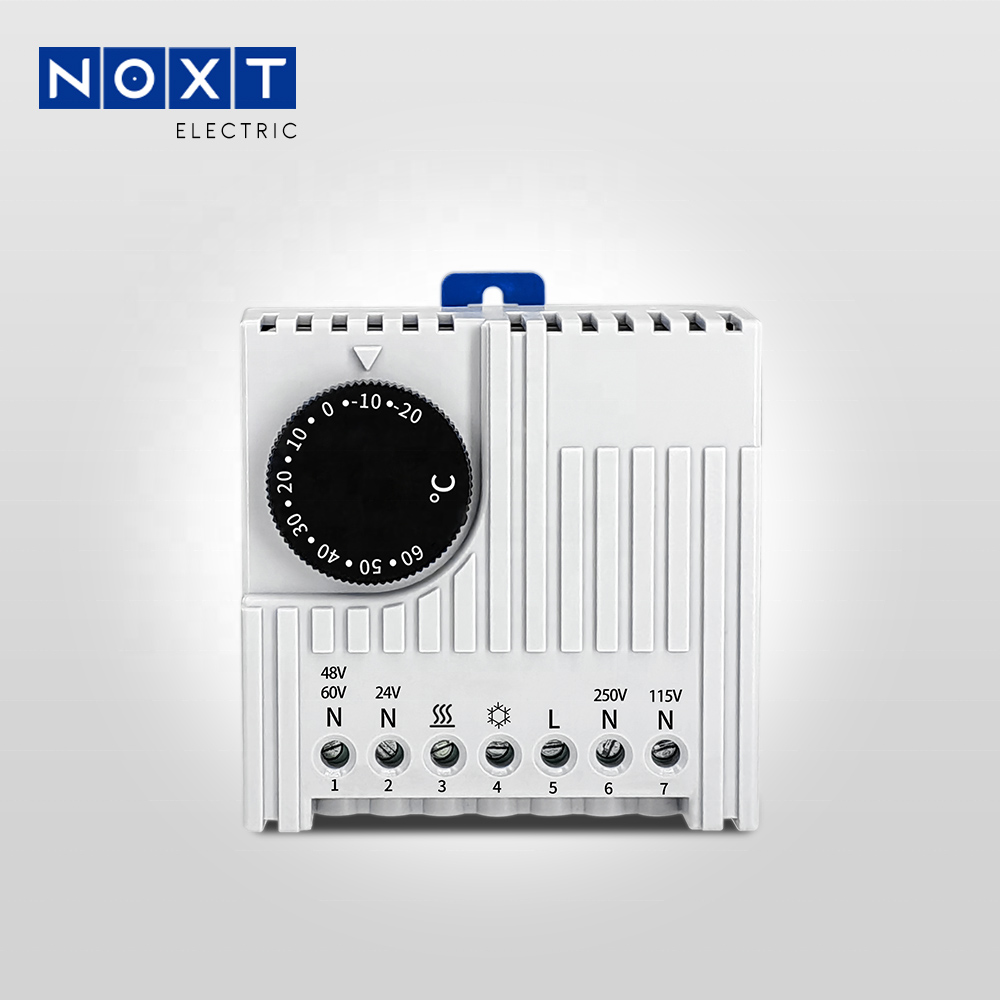

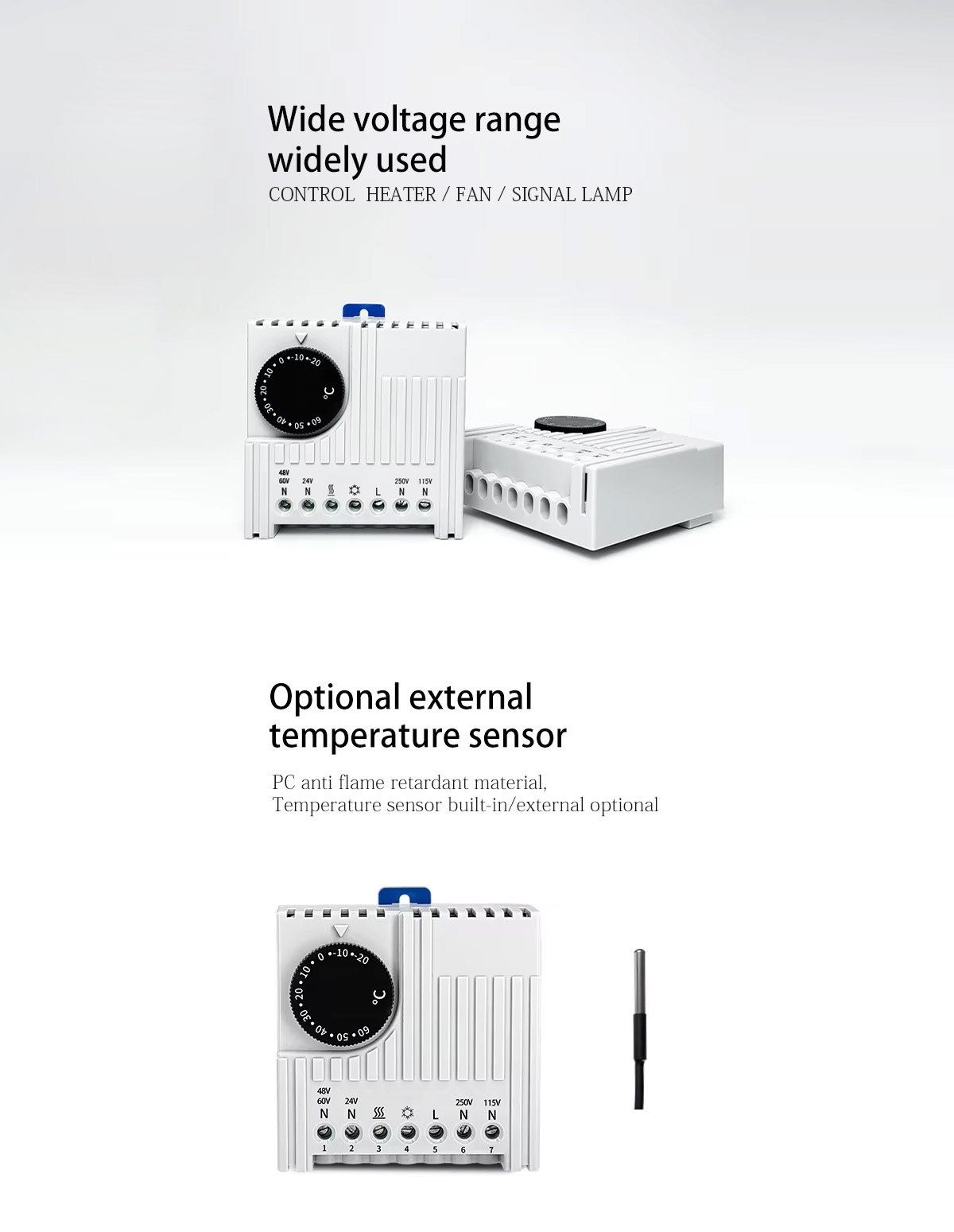

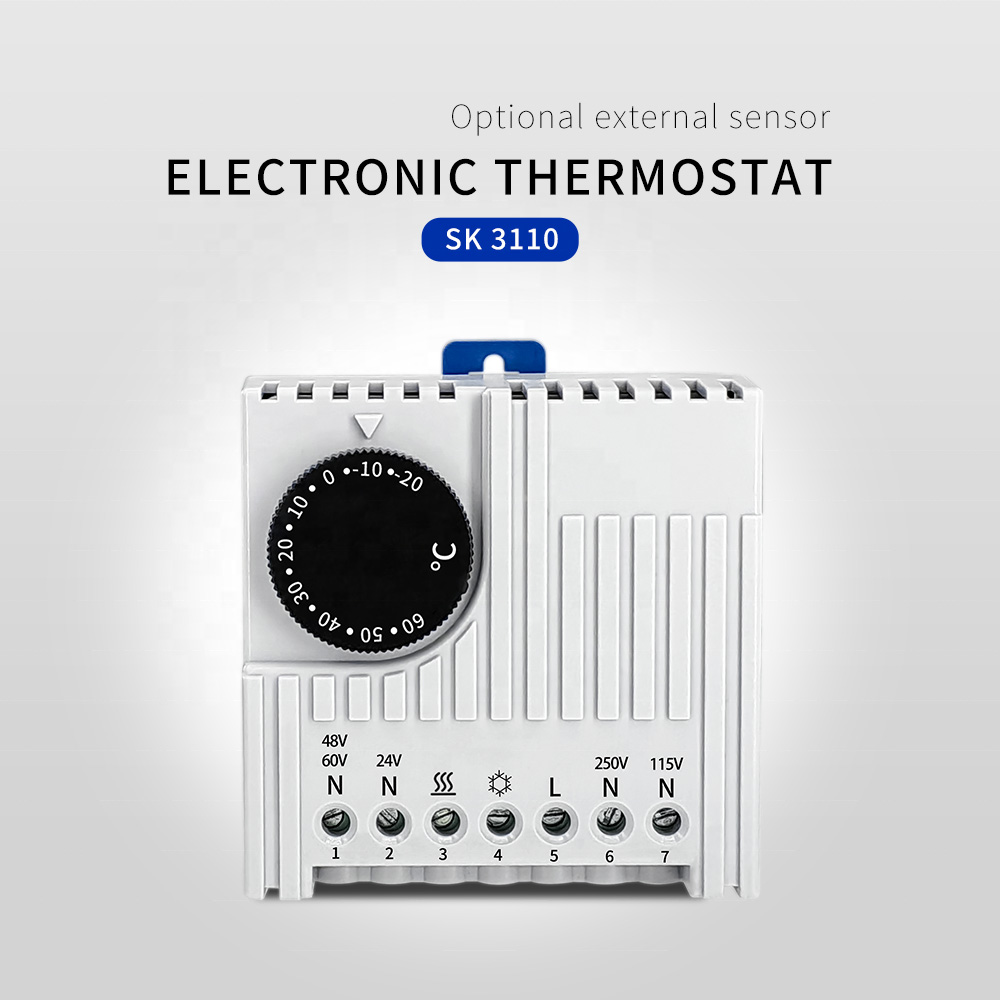

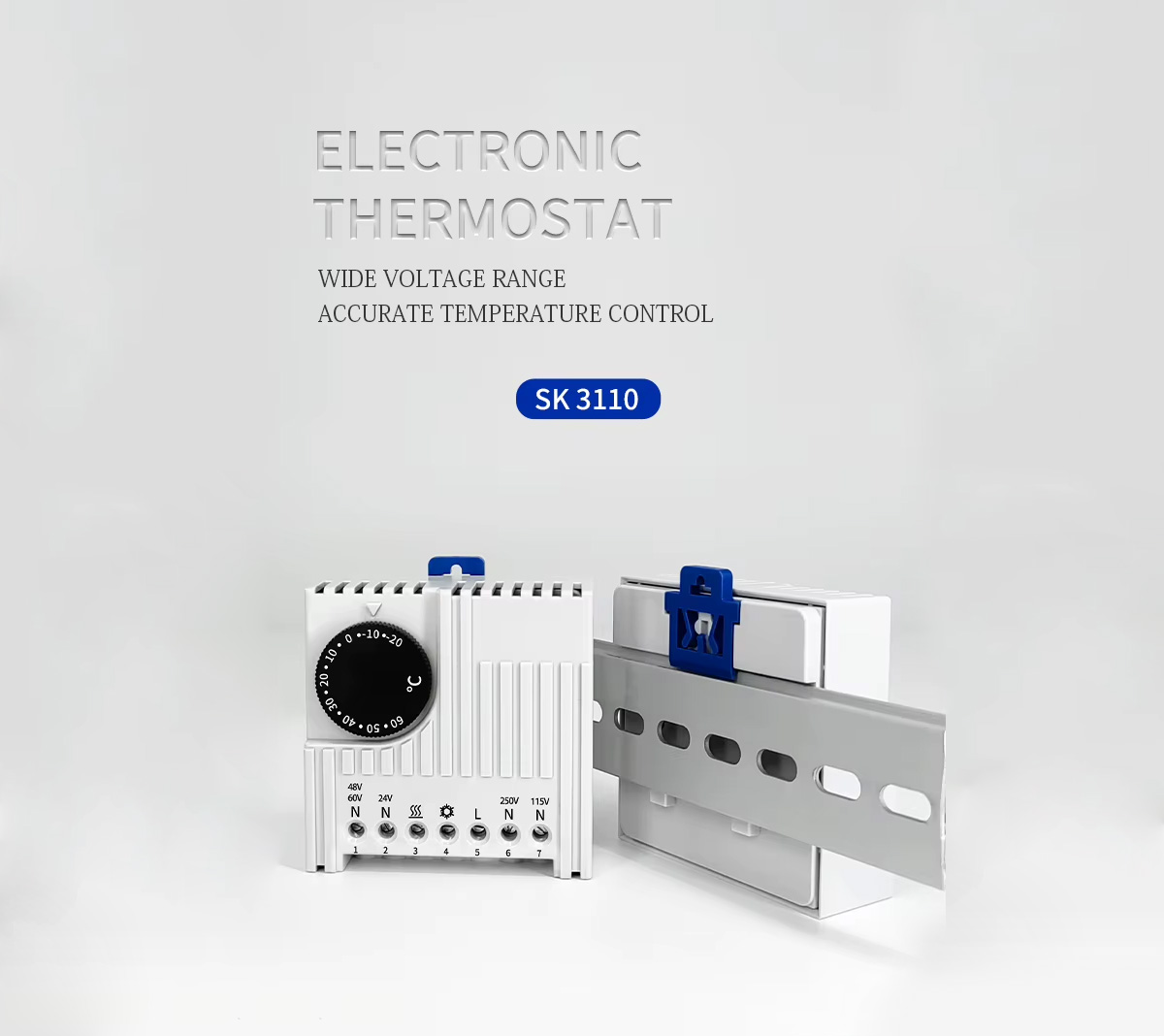

SK3110 is an industrial electronic thermostat built with NTC sensor for precise temperature detection. It features a wide 24V–230V voltage range and an adjustable temperature scale from -20°C to +60°C. Users can choose built‑in or optional external temperature sensor to fit different cabinet measurement demands.

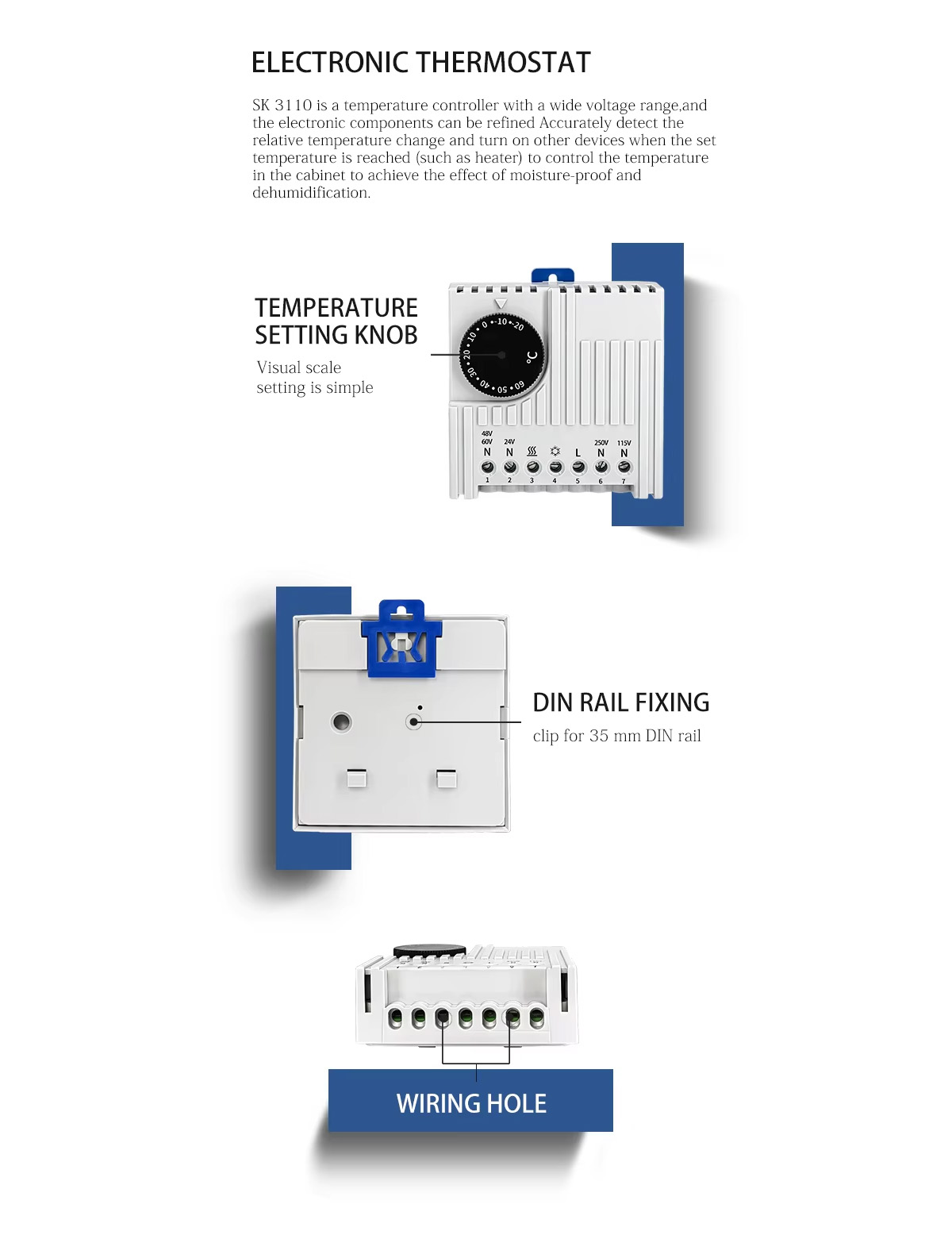

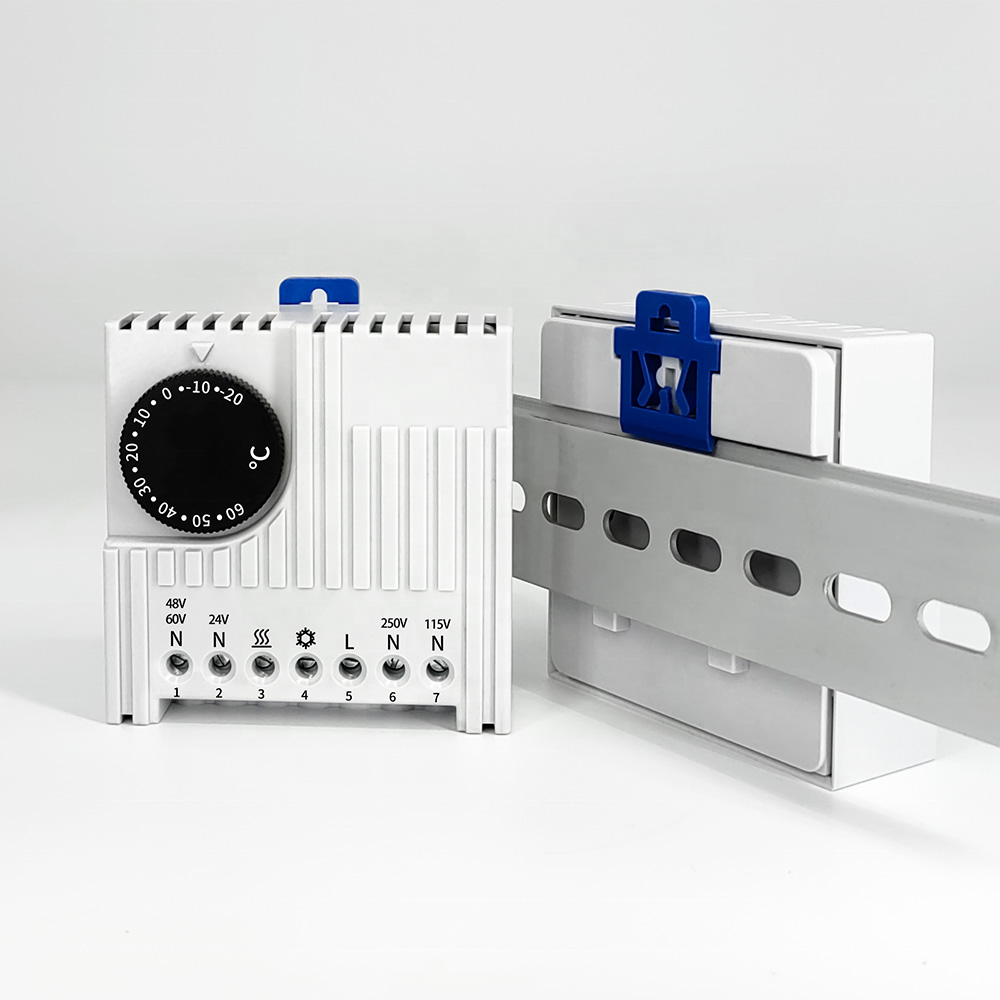

Made of UL94V‑0 flame‑retardant PC housing, the thermostat is designed for standard 35 mm DIN rail vertical mounting. It can control heaters, cooling fans and signal lamps automatically, stabilizing cabinet internal temperature and preventing moisture and condensation. With small switching difference (1K±0.8K), reliable performance and compact size, it is widely used for electric enclosures, control cabinets and industrial equipment temperature management.
Test report per batch
Datasheet + test report
CADs, logos, test reporting
1-5 pcs for qualified buyers
No. SK3110 is a standard electronic cabinet thermostat without ATEX explosionu2011proof certification. For explosive environments, choose explosionu2011proof models like REX011 instead.

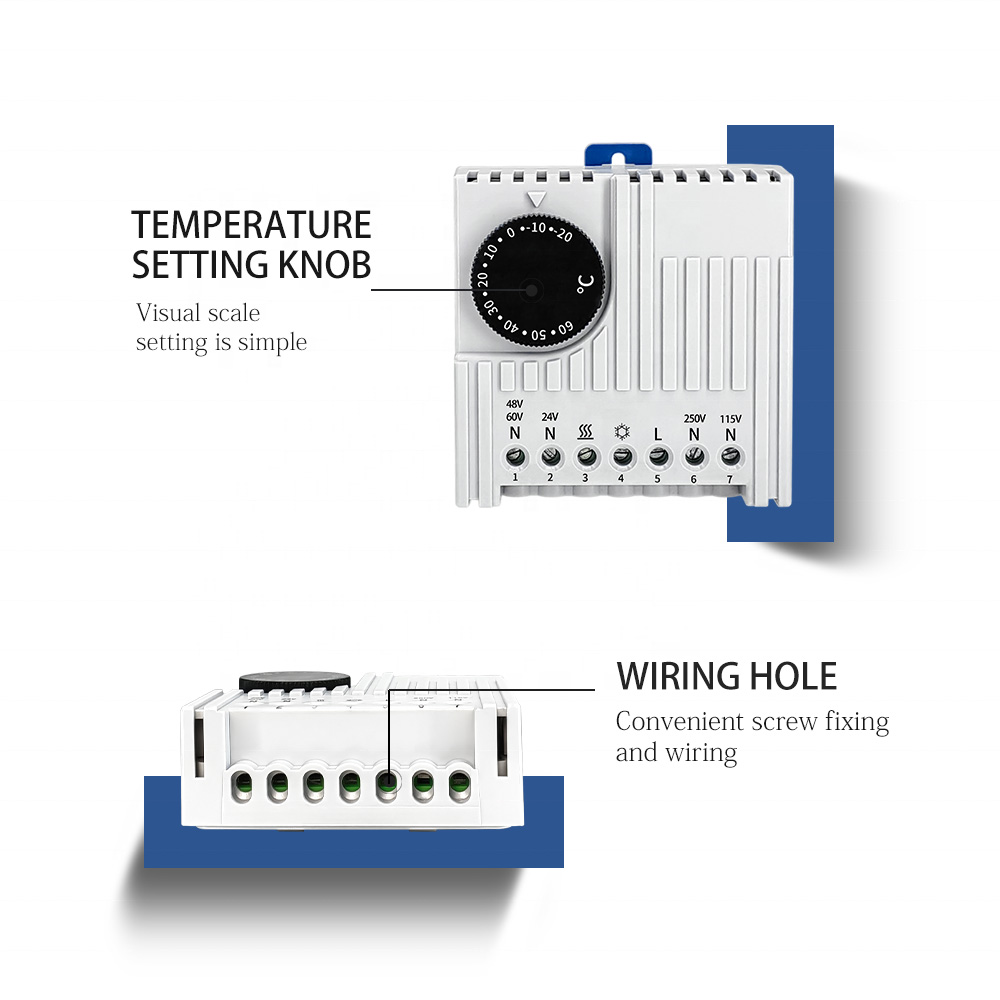

Yes. The rotary mechanical knob maintains the set temperature position manually. The temperature value will not be reset even after power failure and power restoration.

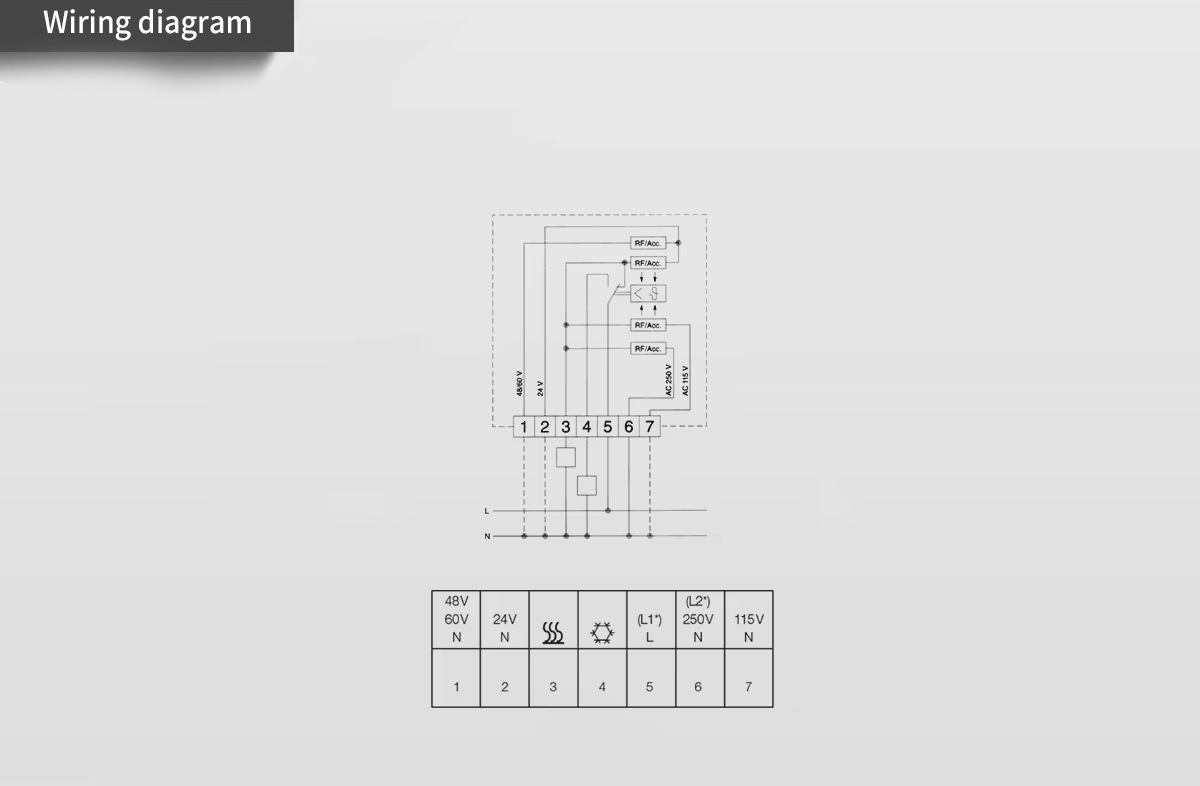

It has two independent output terminals. It can turn on a heater when temperature drops below set value and start a cooling fan when temperature rises above preset point, but heating and cooling outputs will not activate simultaneously.
