Intelligent dehumidifier
| Item | Specification |
|---|---|
| Model | SK3118 |
| Contact type | 1Z |
| Switching difference | ±3%RH |
| Weight | 90 g |
| Housing material | Plastic, UL 94V‑0 |
| Certificates | CE, ROSH |
| Installation | 35 mm DIN rail mounting |

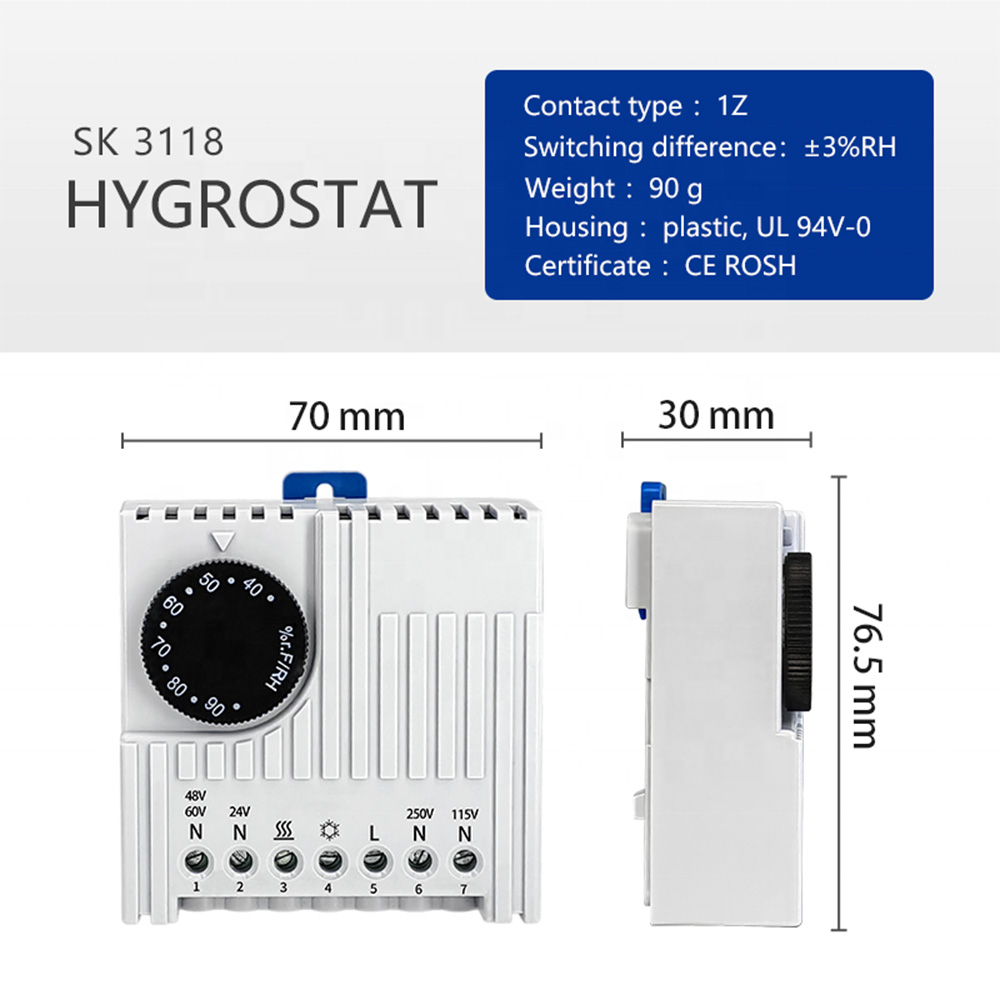

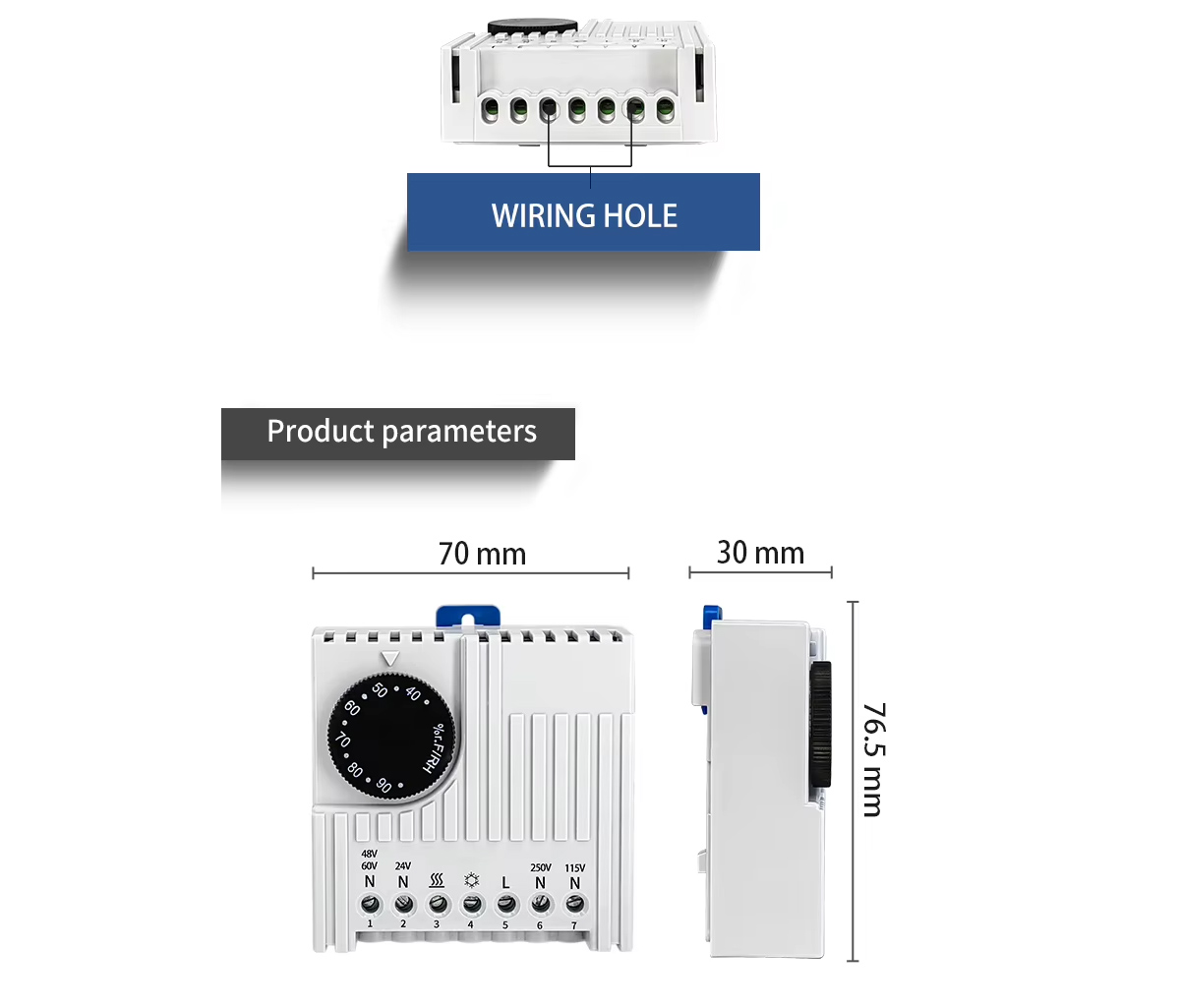

| Dimension | 70mm × 30mm ×76.5mm |
| Warranty | 3 years |

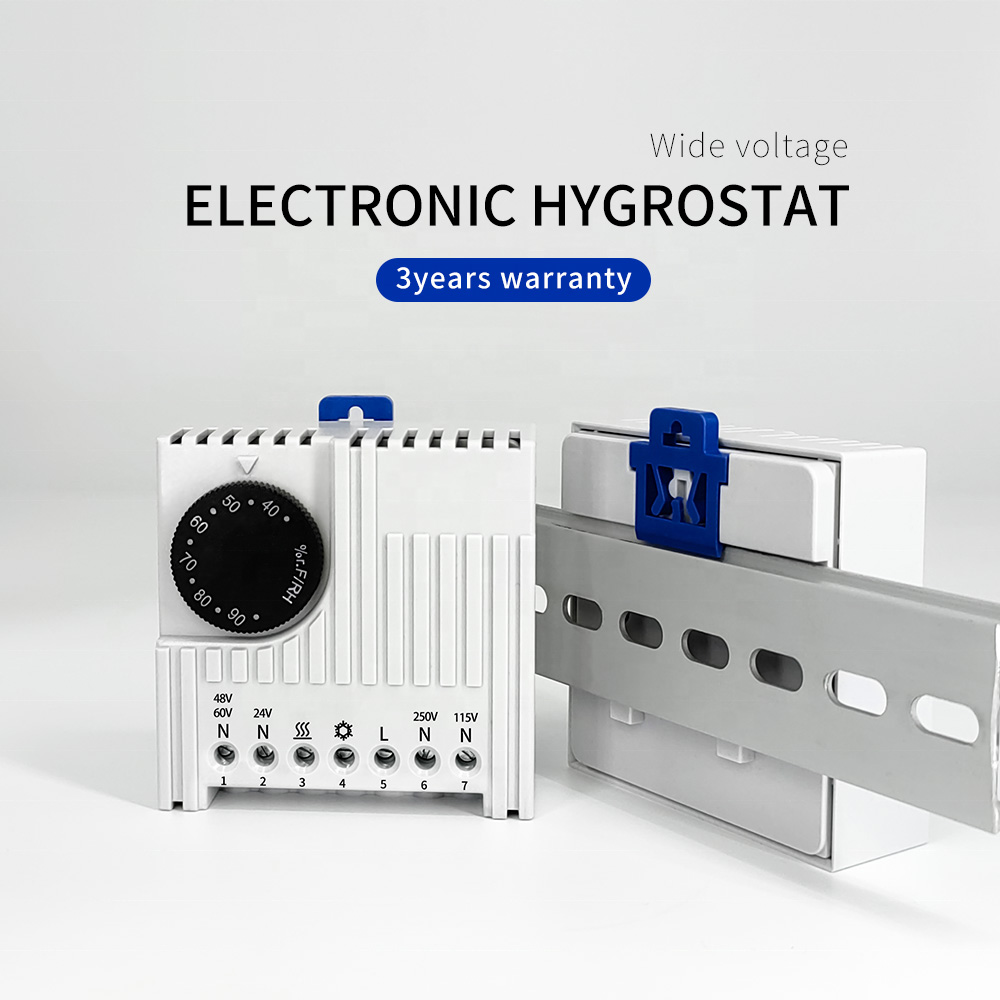

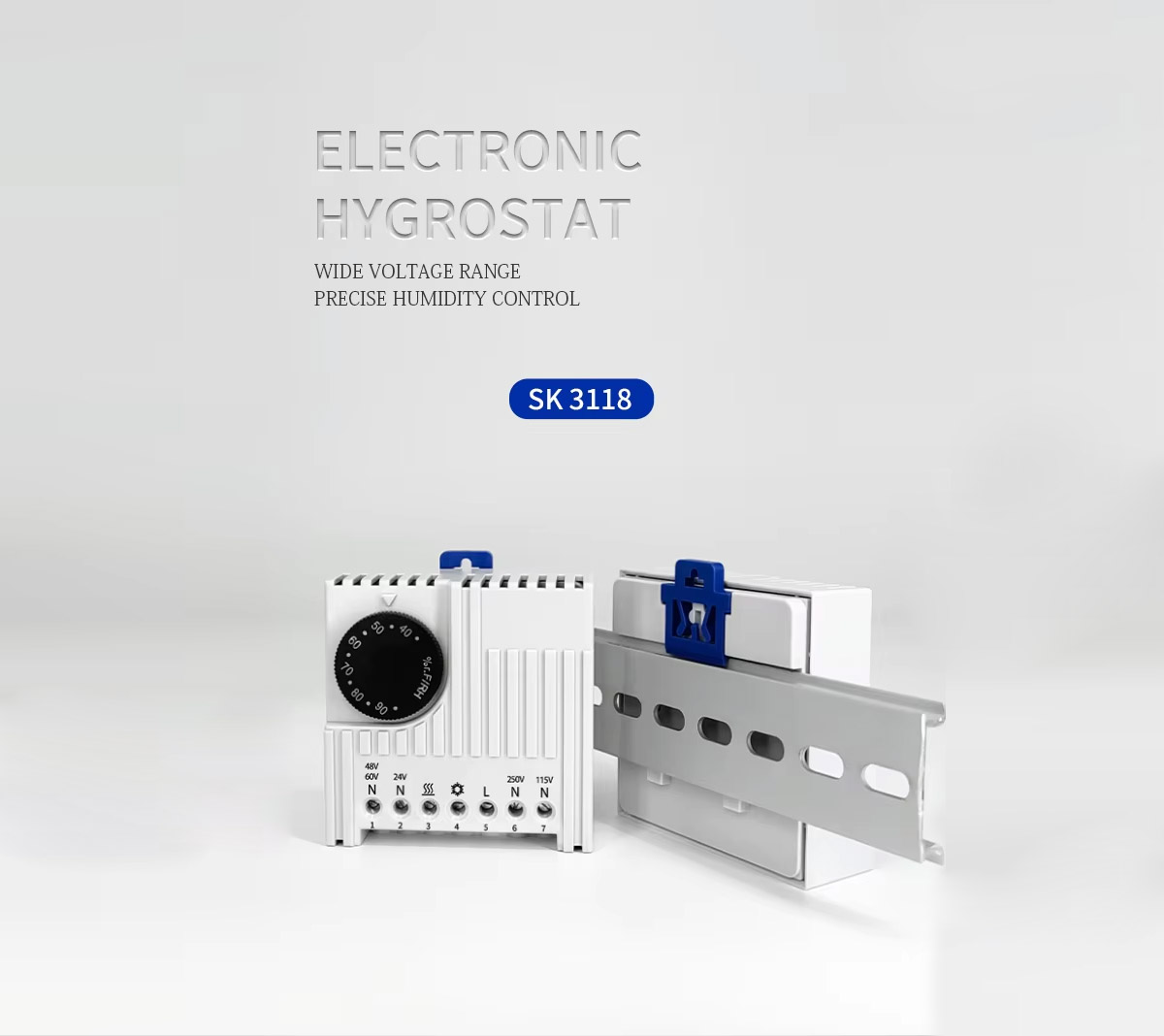

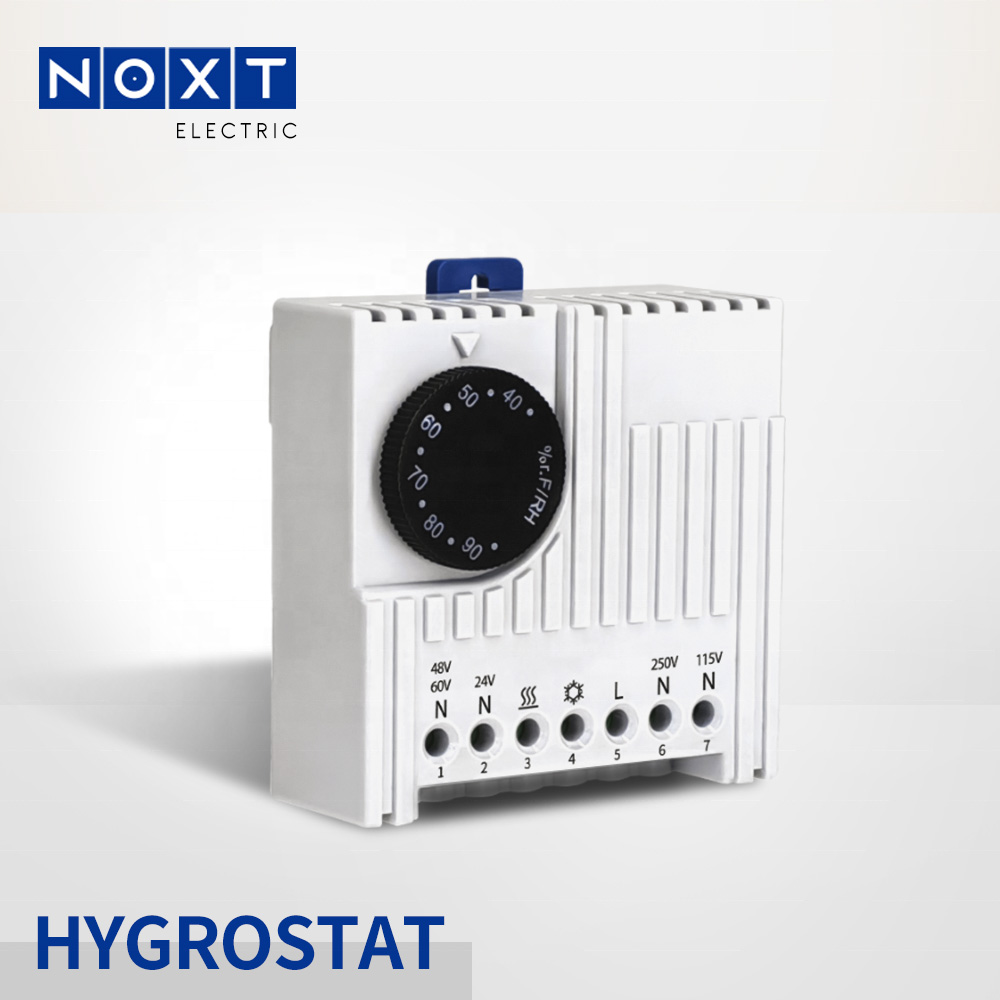

SK3118 electronic hygrostat is a DIN‑rail mounted humidity controller with wide voltage input and precise humidity sensing. Equipped with an intuitive rotary setting knob with visible humidity scale, it accurately detects relative humidity and activates heaters, fans or dehumidifiers automatically to achieve moisture‑proof and dehumidification inside enclosures.

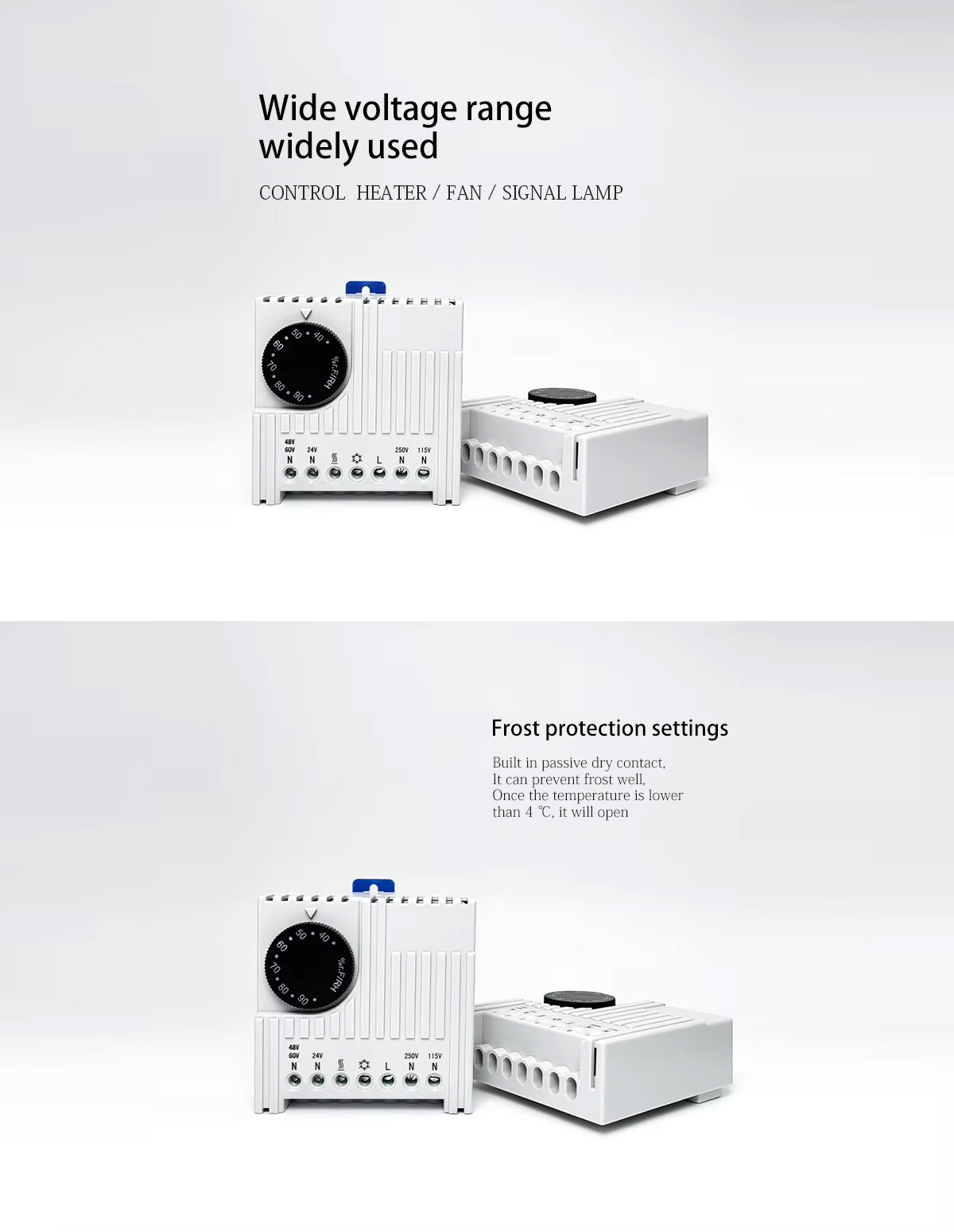

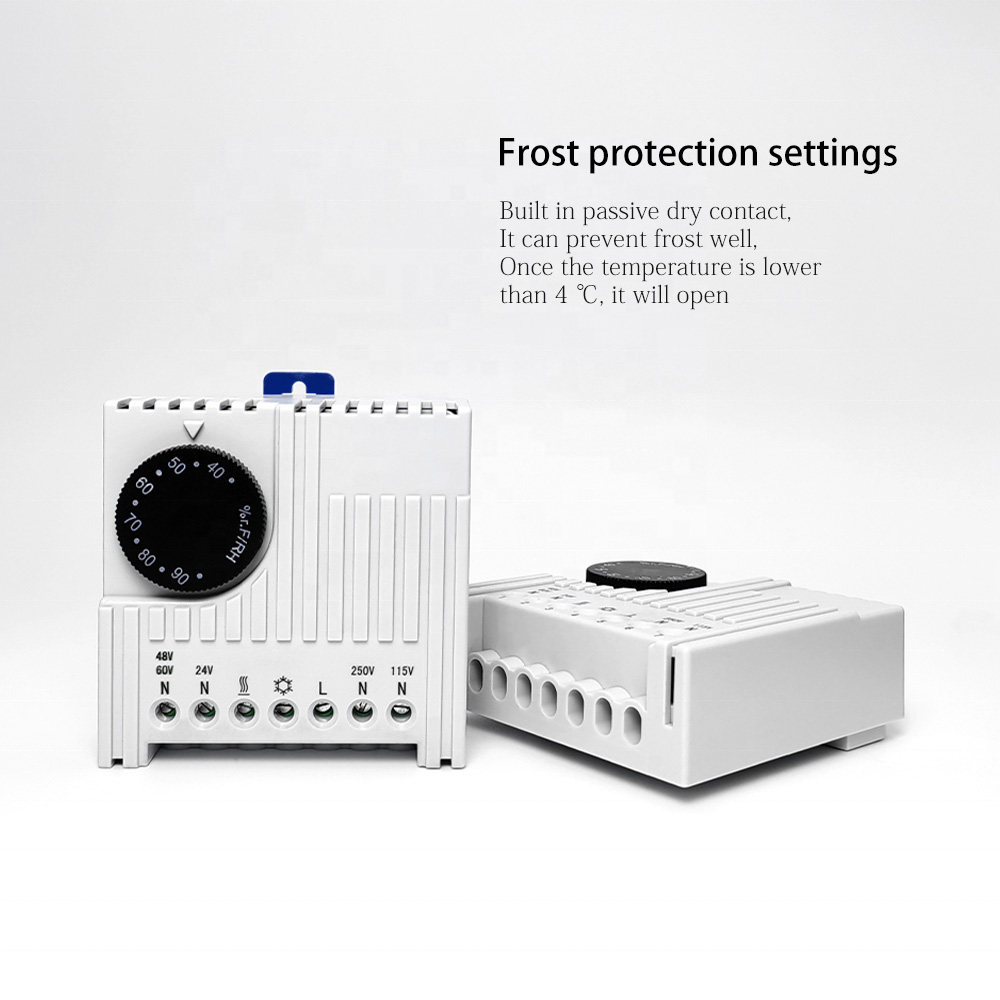

Built‑in passive dry contact supports frost protection. When the ambient temperature drops below 4℃, the contact switches on to prevent freezing damage for electrical cabinets. It adopts UL94V‑0 flame‑retardant plastic housing, compact dimension and easy installation on standard 35 mm DIN rail. With ±3%RH low switching differential, stable performance and 3‑year warranty, it has CE & RoHS certification, widely used in electrical cabinets, control boxes and industrial enclosures.
Test report per batch
Datasheet + test report
CADs, logos, test reporting
1-5 pcs for qualified buyers
It has a passive dry contact. The contact will turn on automatically once the temperature falls below 4u2103, to trigger heating devices and avoid frost formation inside the cabinet.

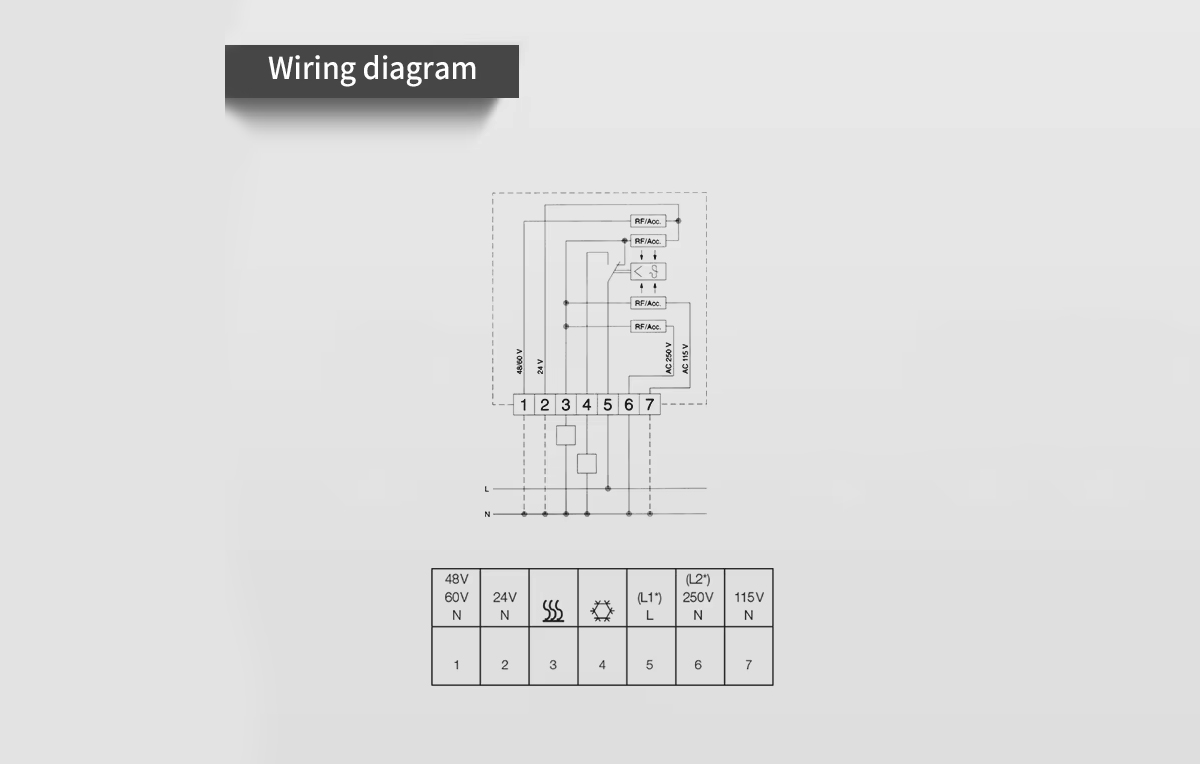

It is designed for humidityu2011driven switching output. It can connect with heaters for dehumidification or filter fans for ventilation, singleu2011channel output, cannot drive two loads simultaneously.

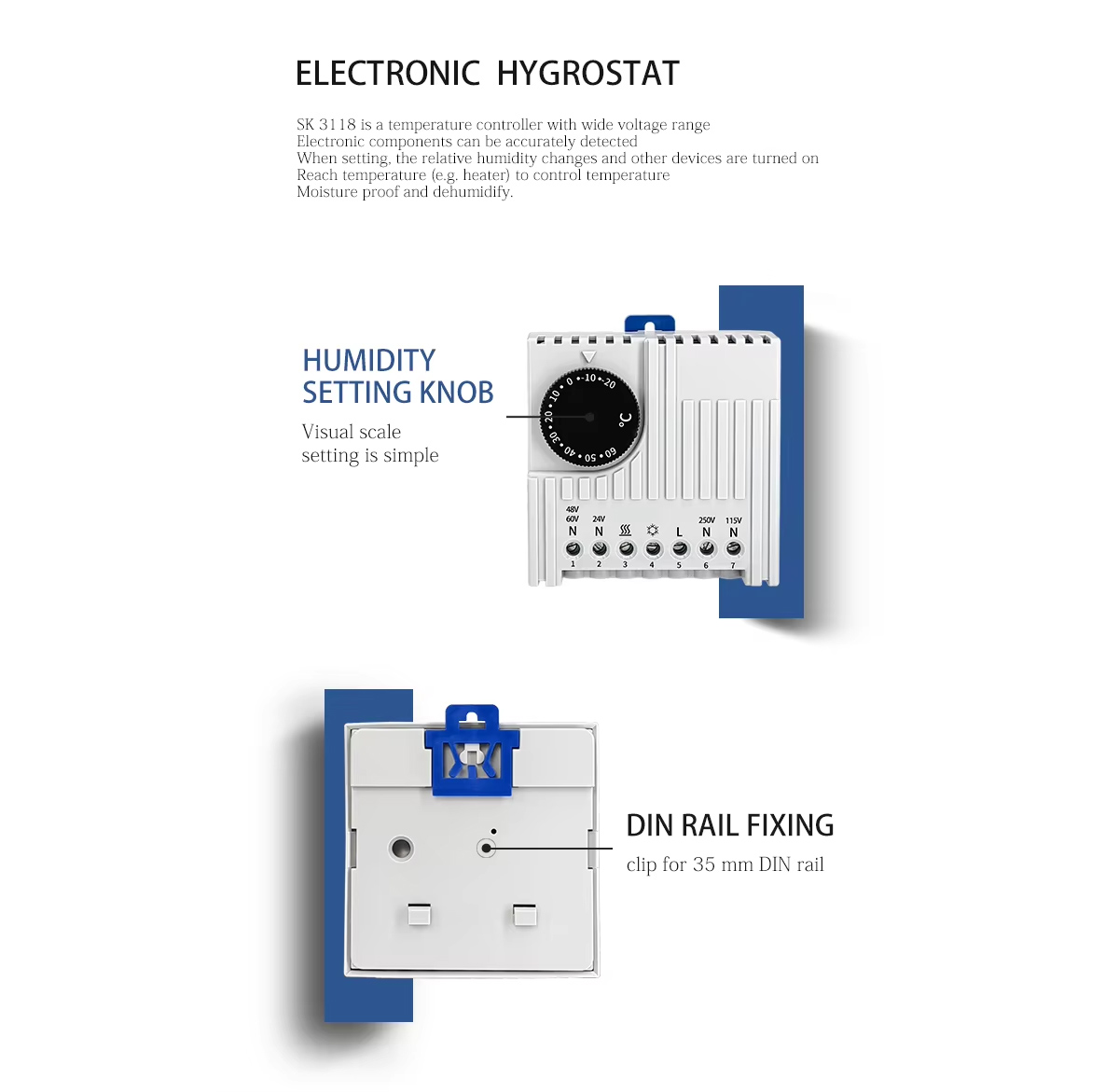

It is equipped with a blue clip for 35u202fmm standard DIN rail. No screws required for installation, just snap it onto the rail directly.
