TK88

Intelligent dehumidifier

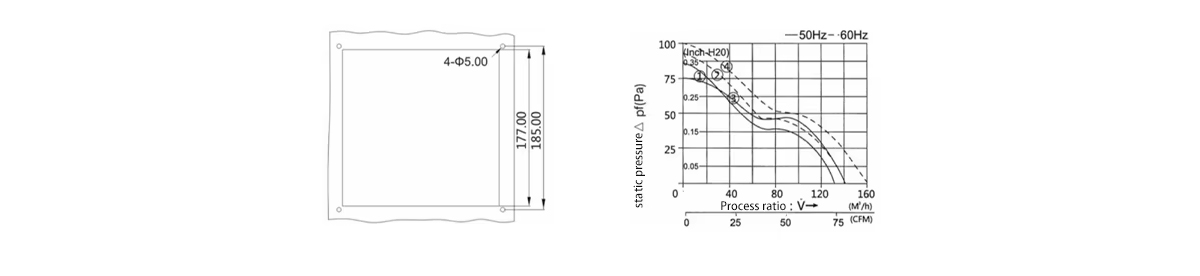

Key Specifications

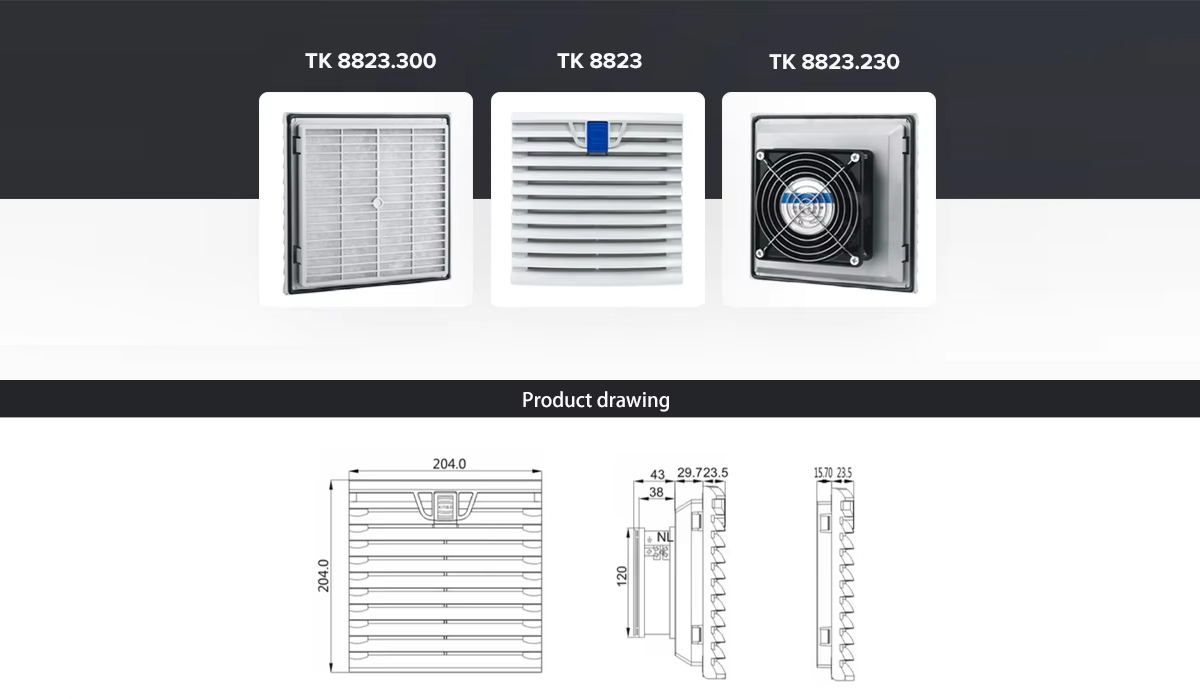

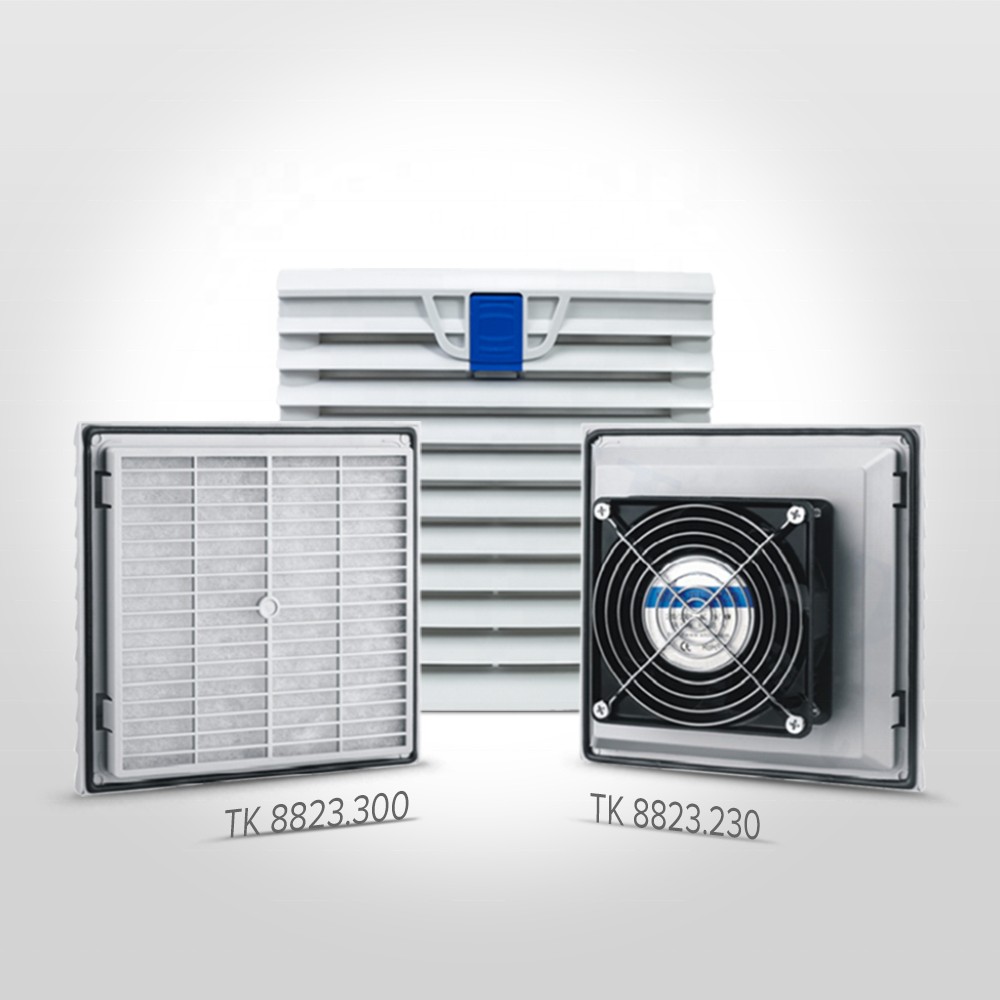

Product number	TK 8823.230	TK 8823.115	TK 8823.024
Axial Fan	ZF‑120S‑230	ZF‑120S‑115	ZF‑120B‑024
Operating Voltage(V/Hz)	230/50/60	115/50/60	24(DC)
Air flow, free blowing	105/120m³/h	105/120m³/h	105/120m³/h
Air flow, with outlet filter	1×TK 8823.300: 71/82m³/h	71/82m³/h	71/82m³/h
Axial fan	Automatic shielded pole motor	Automatic shielded pole motor	DC motor
Rated current(A)	0.12/0.10	0.24/0.20	0.3
Power(W)	19/14	18/15	3.5
Noise level(dB)	50/52	50/52	50/52
working temperature	-10℃~+55℃	-10℃~+55℃	-10℃~+55℃
Material	ABS	ABS	ABS
Flammability rating	UL94‑V0	UL94‑V0	UL94‑V0

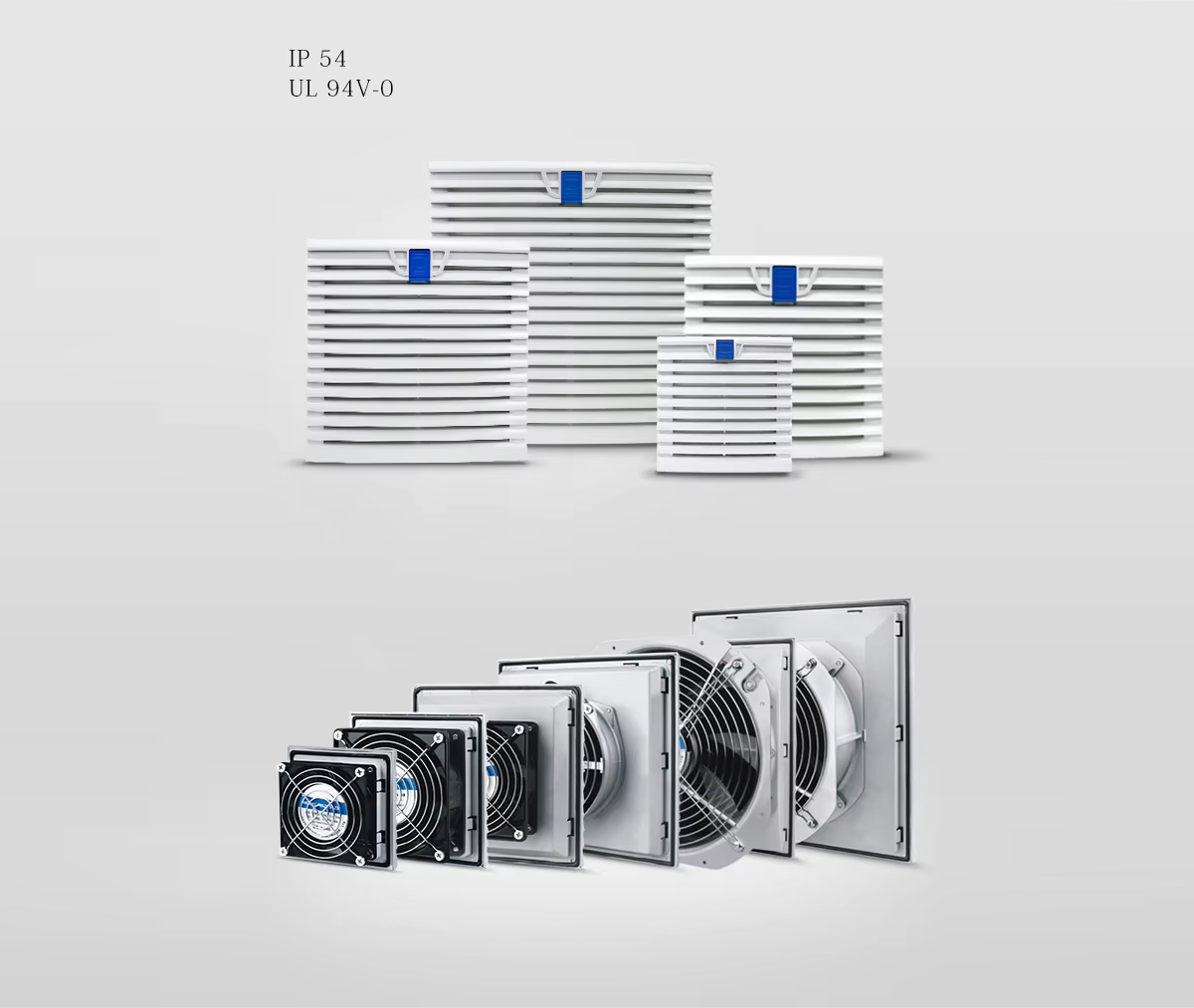

Protection class	IP 54	IP 54	IP 54

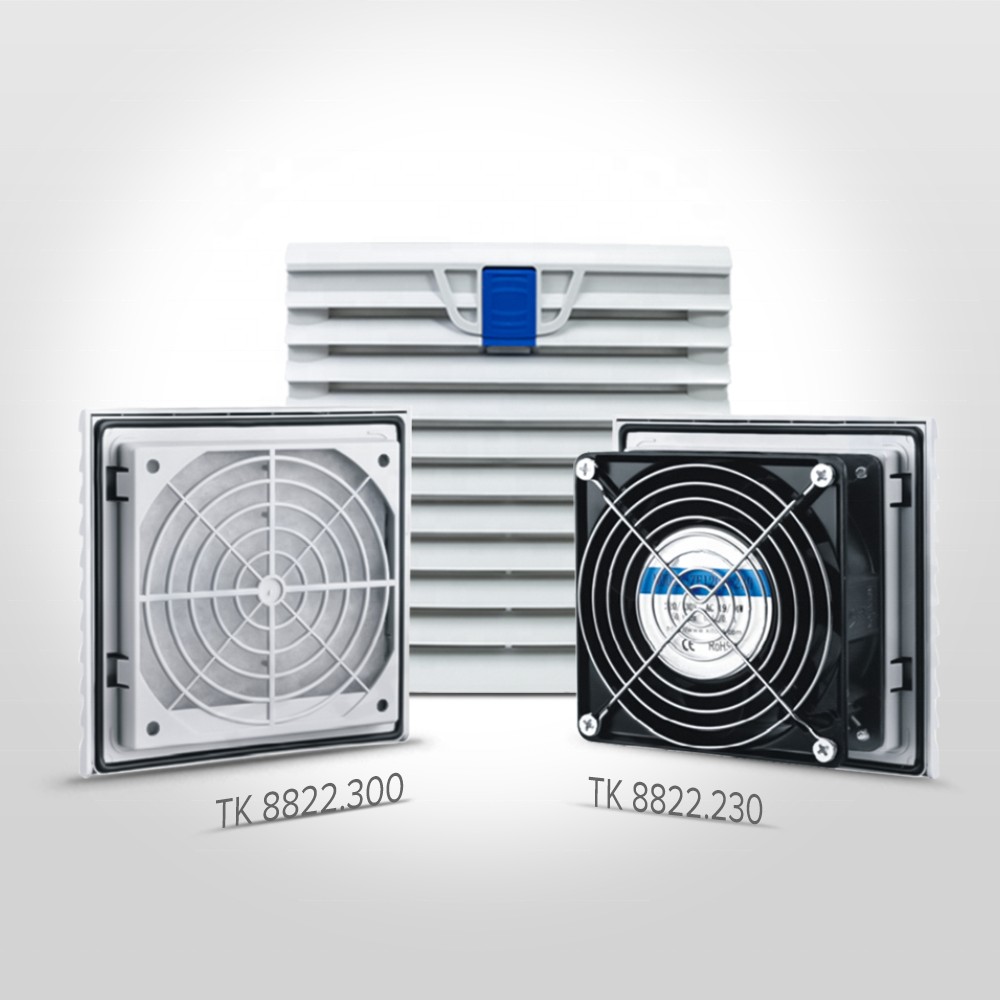

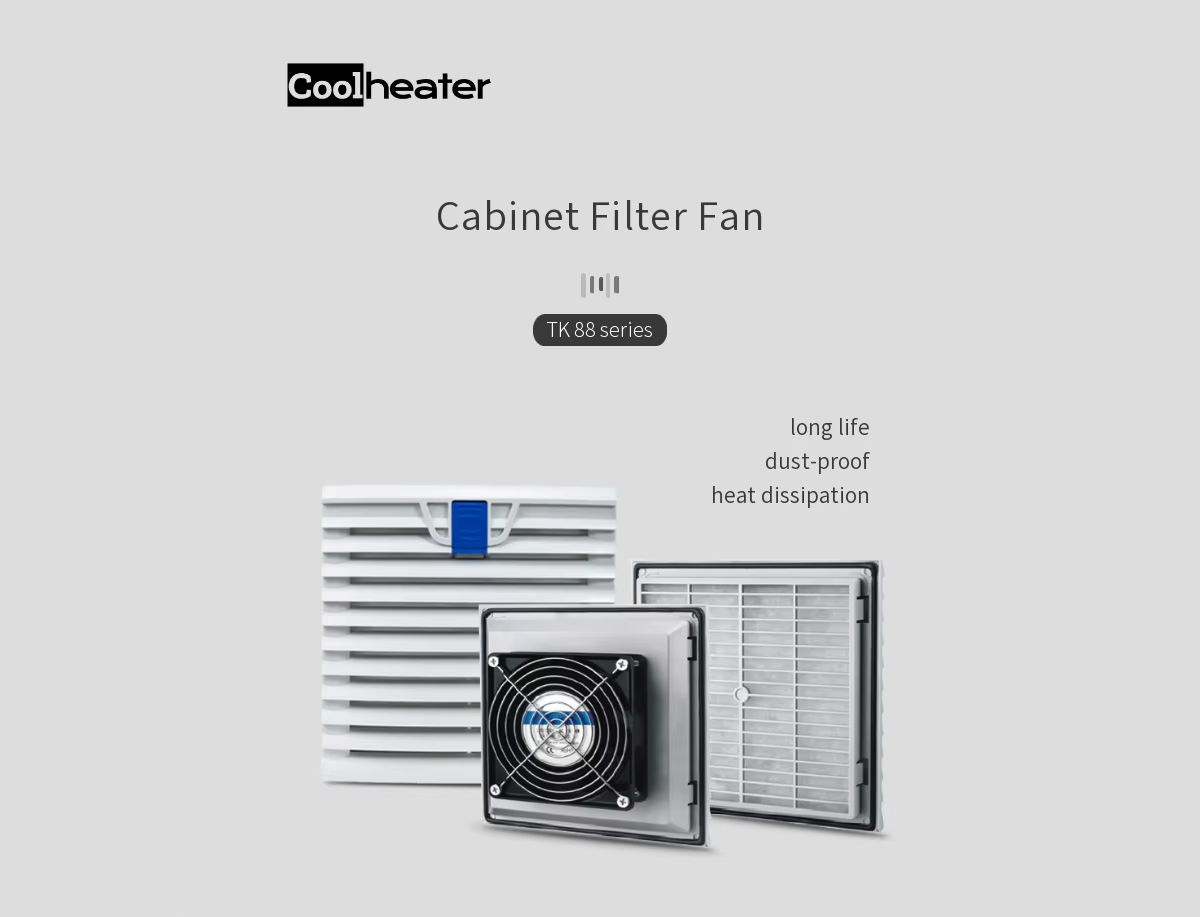

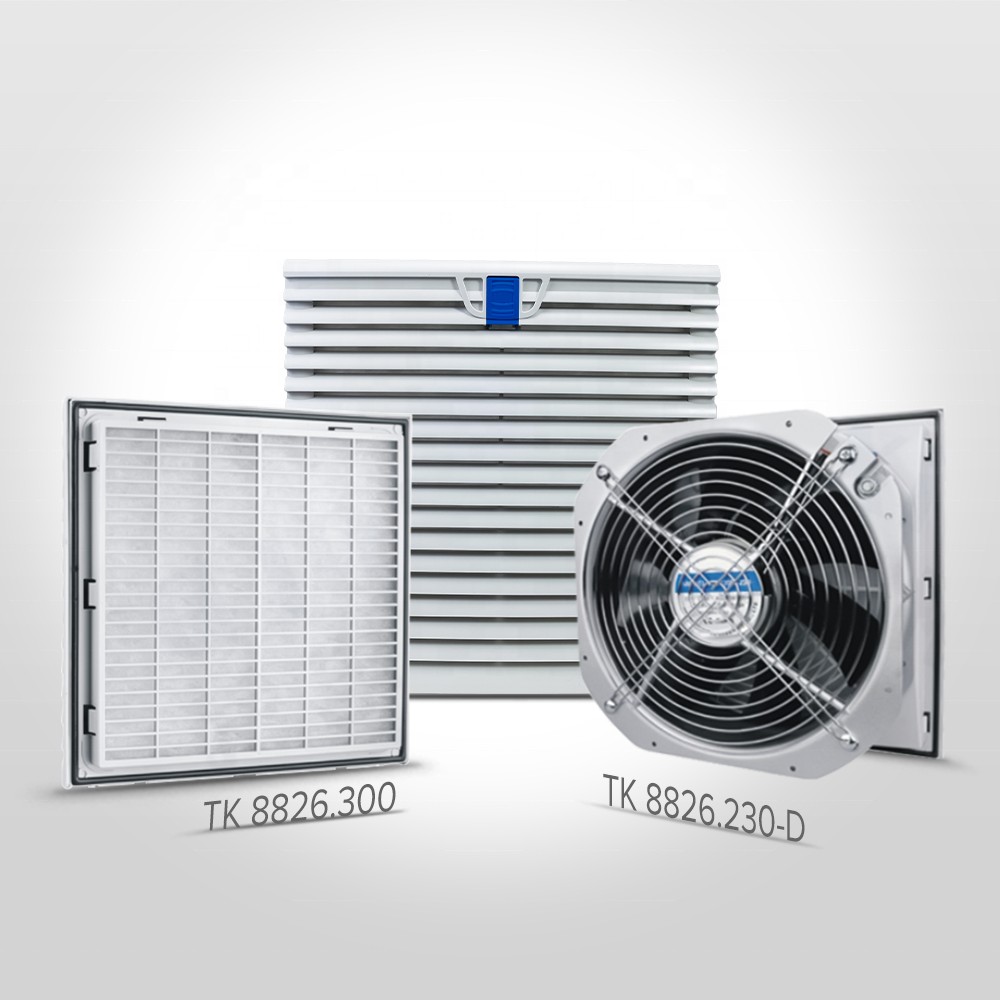

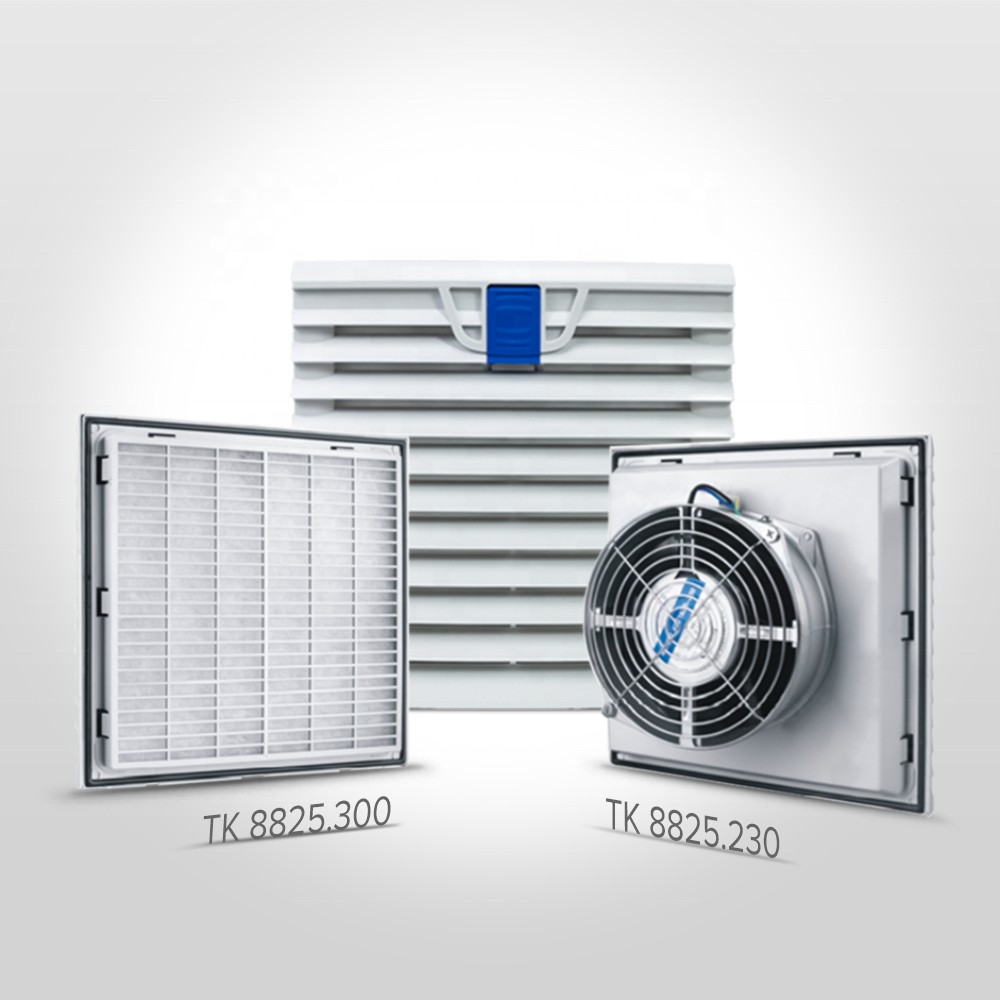

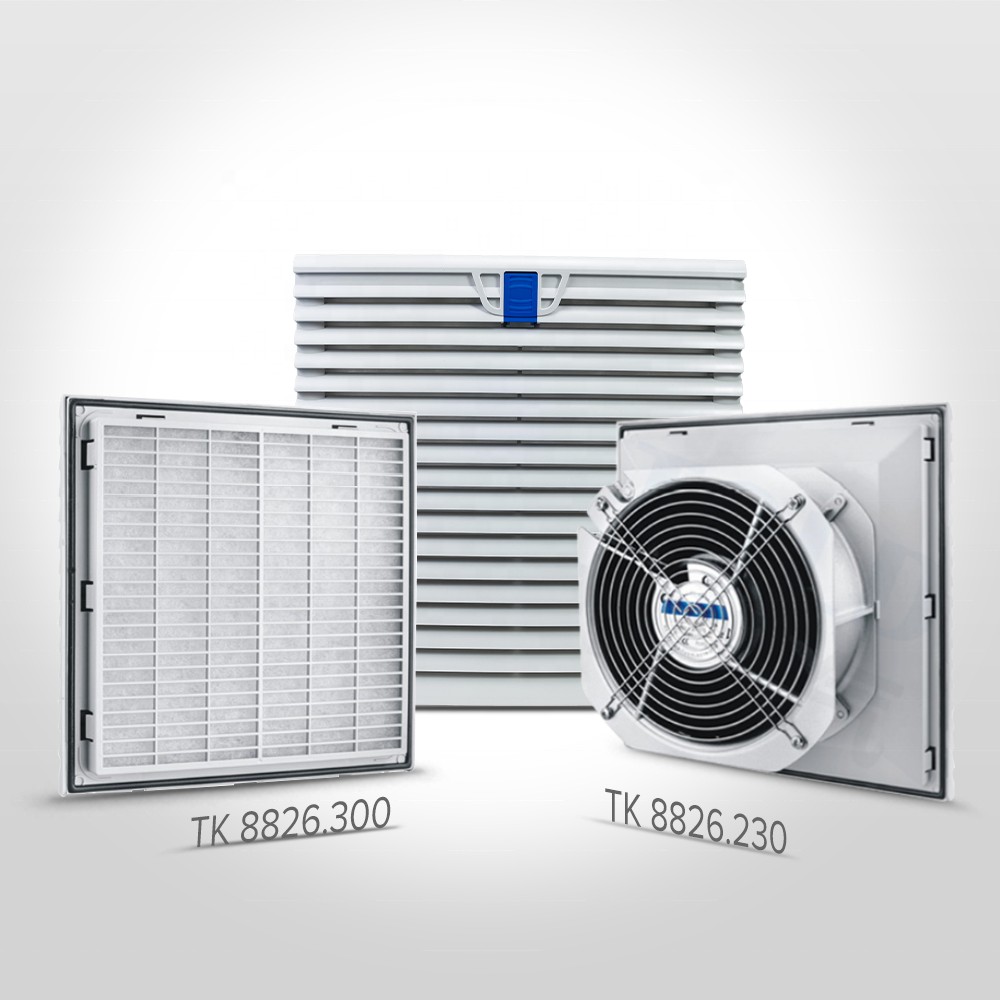

Our TK88 series cabinet filter fan is designed for electrical cabinet heat dissipation and dust‑proof ventilation. Built with high‑quality flame‑retardant ABS plastic, it reaches IP54 protection grade and meets UL94‑V0 fire safety standards.

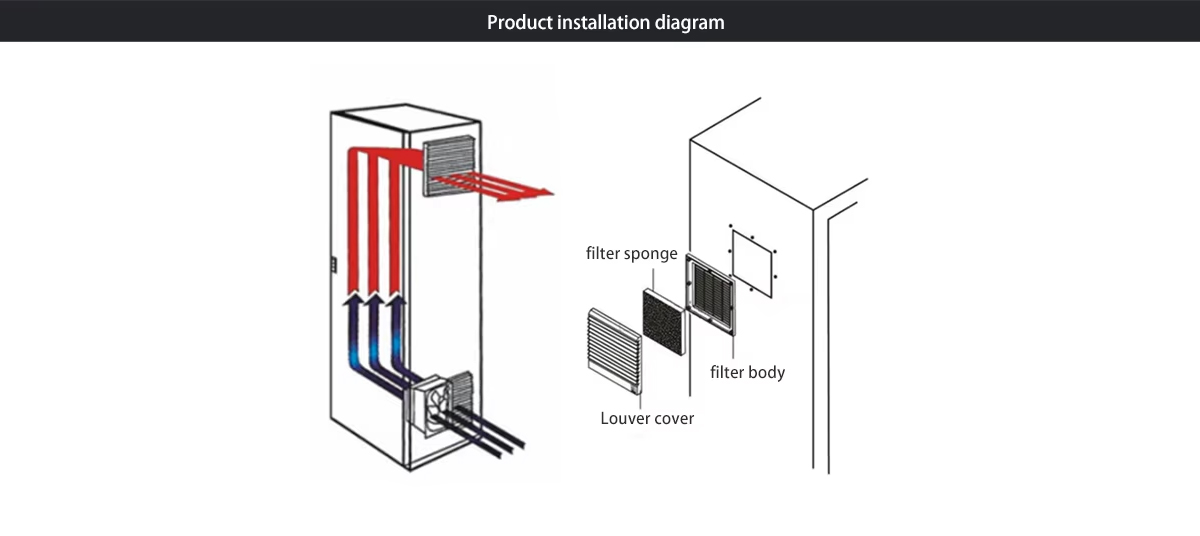

Equipped with long‑life axial fans and replaceable filter sponges, the filter fan effectively circulates internal air, lowers cabinet temperature and prevents dust from entering electrical enclosures. A complete product lineup covers multiple dimensions and voltage specifications including 24V DC, 115V, and 230V AC to fit different enclosure sizes and global power systems.
