Heater & Fan Heater
| Item | Specification |
|---|---|

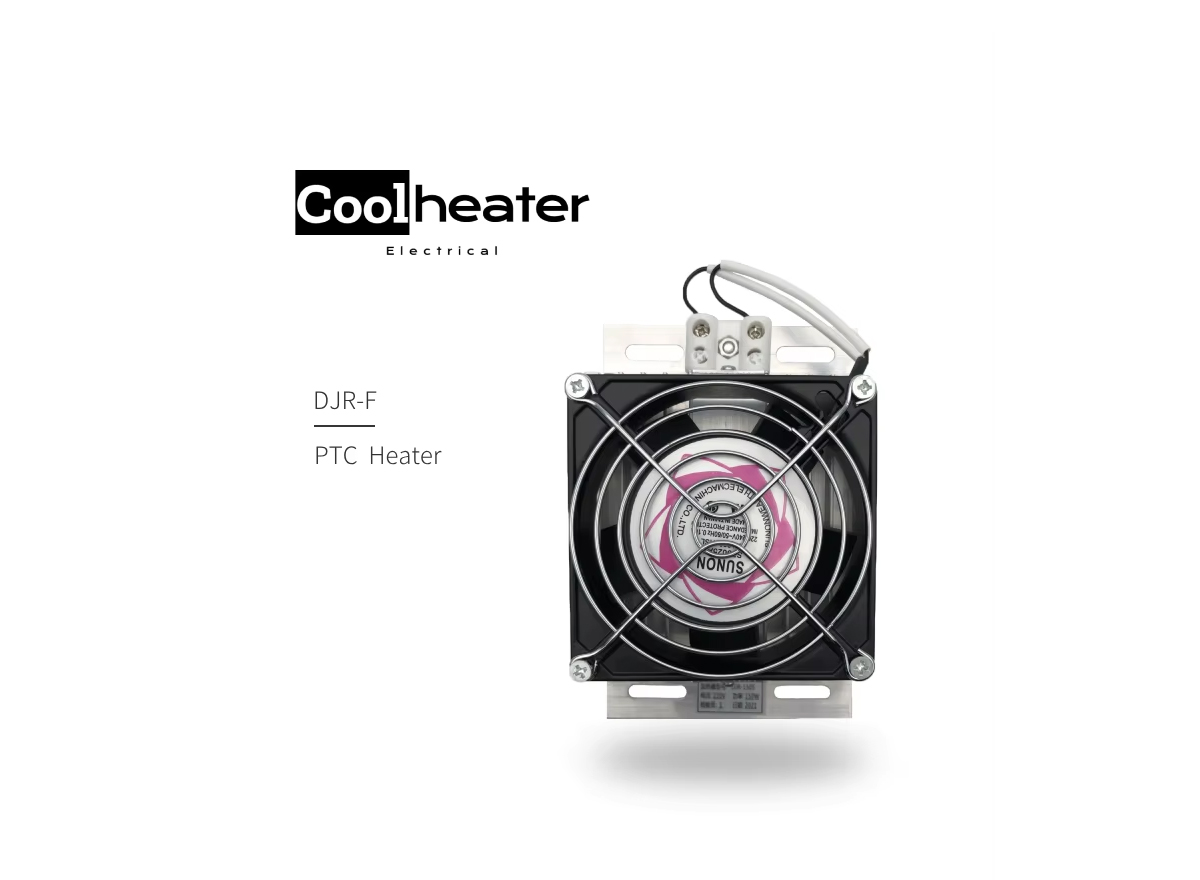

| Model | DJR-F |
| Type | PTC Fan Heater |

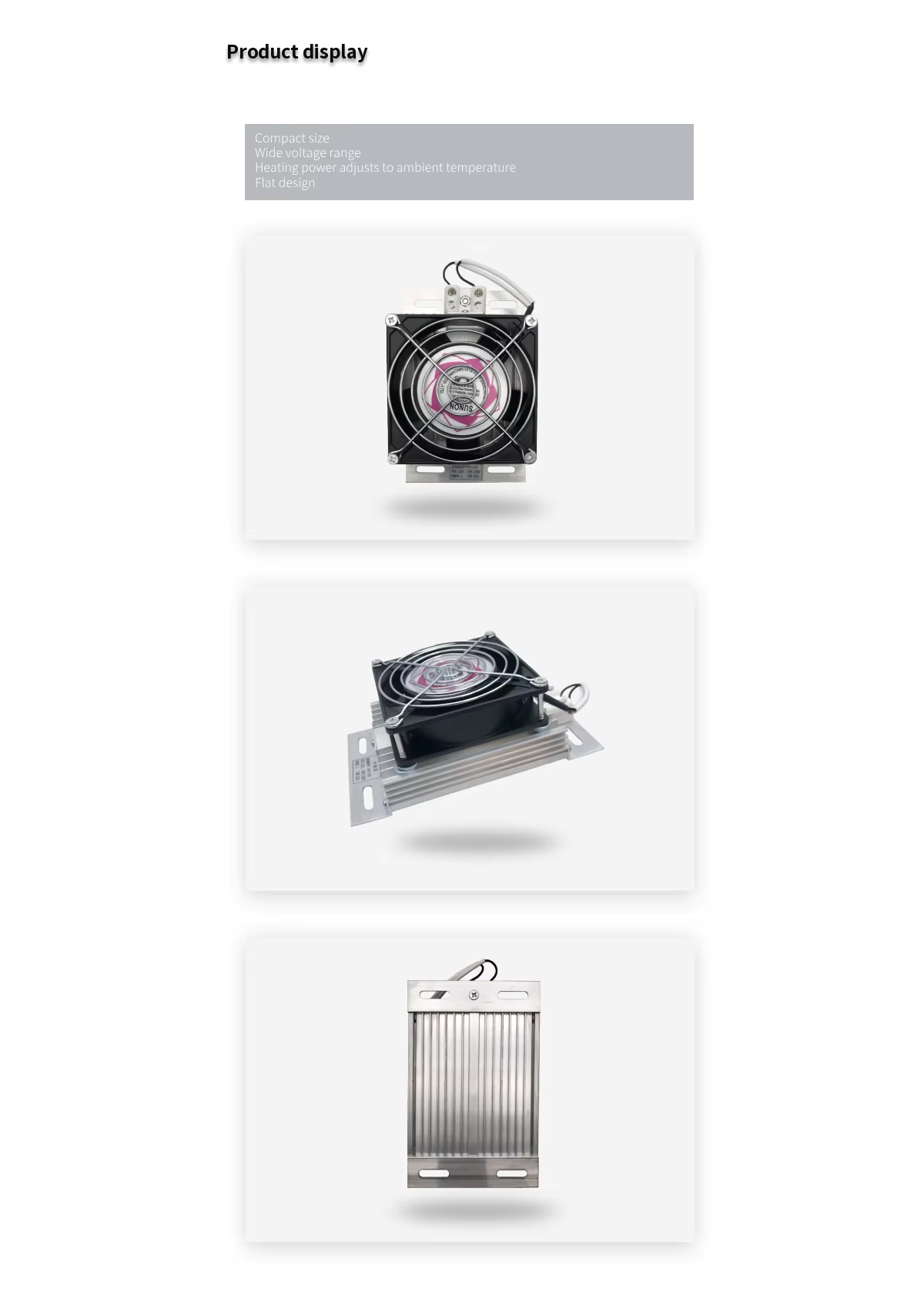

| Structure | Flat compact design |
| Feature | Wide voltage; Auto-adjust heating power by ambient temp |
| Dimension | 156mm × 100mm × 55mm |

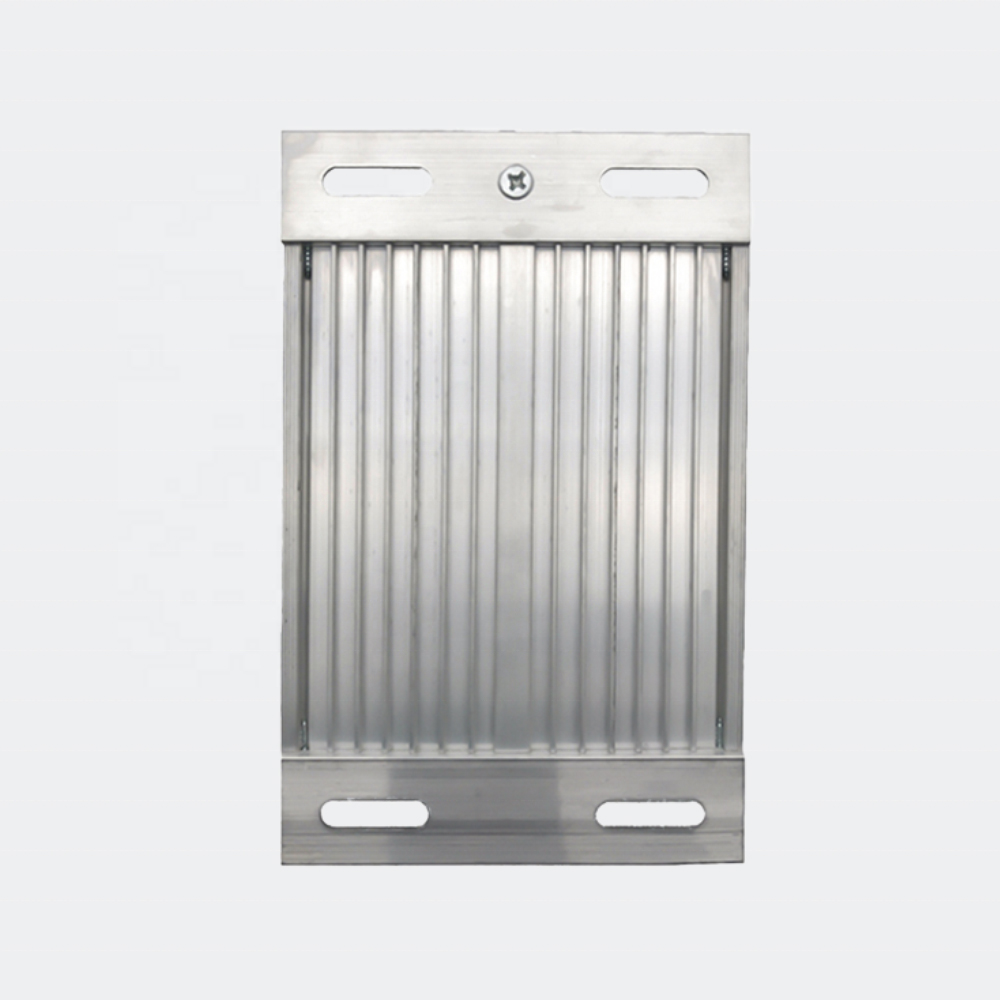

| Installation | Metal mounting bracket |

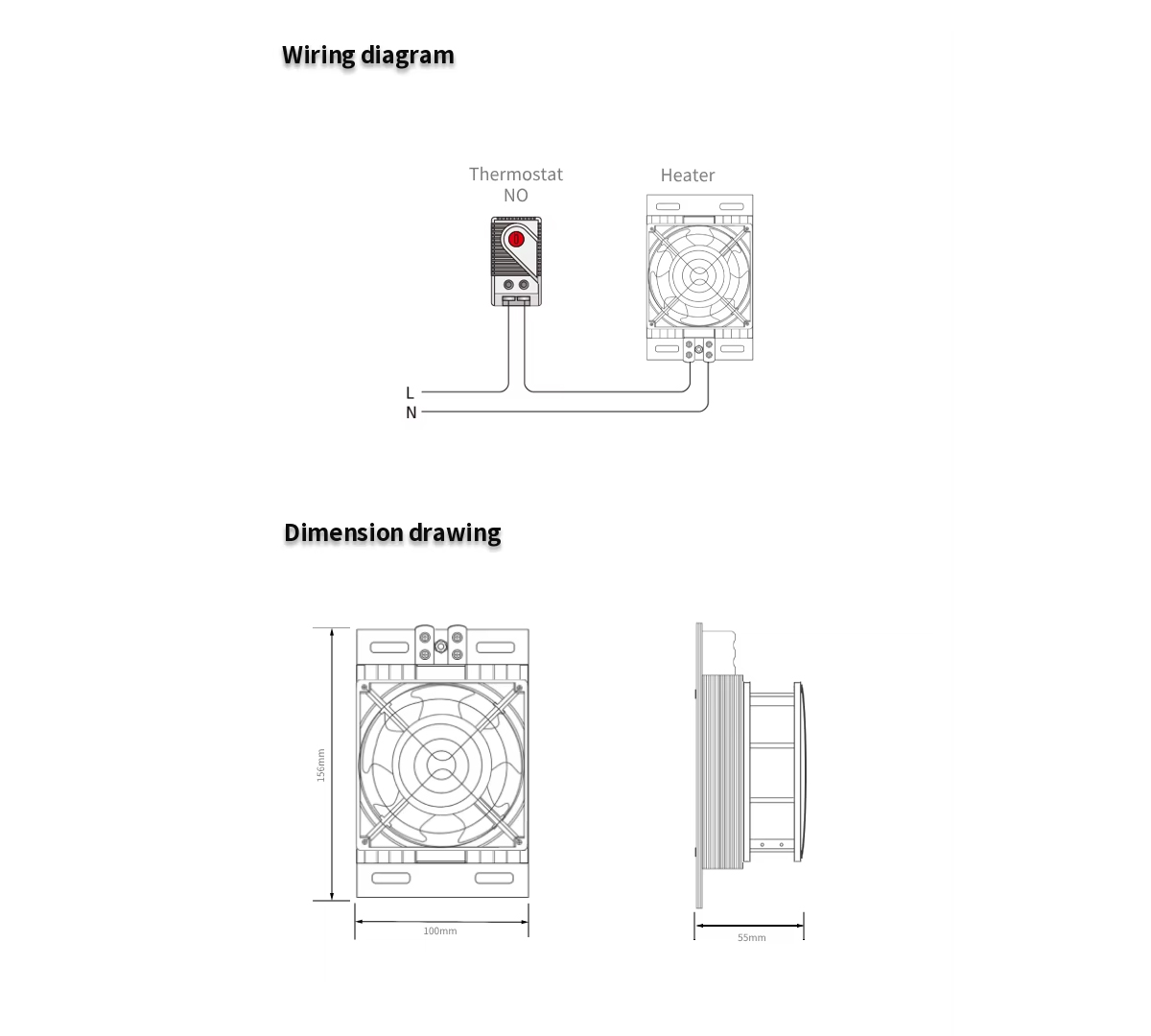

| Matching part | Can be connected with cabinet thermostat |
| Main function | Cabinet anti-condensation, low temperature protection |

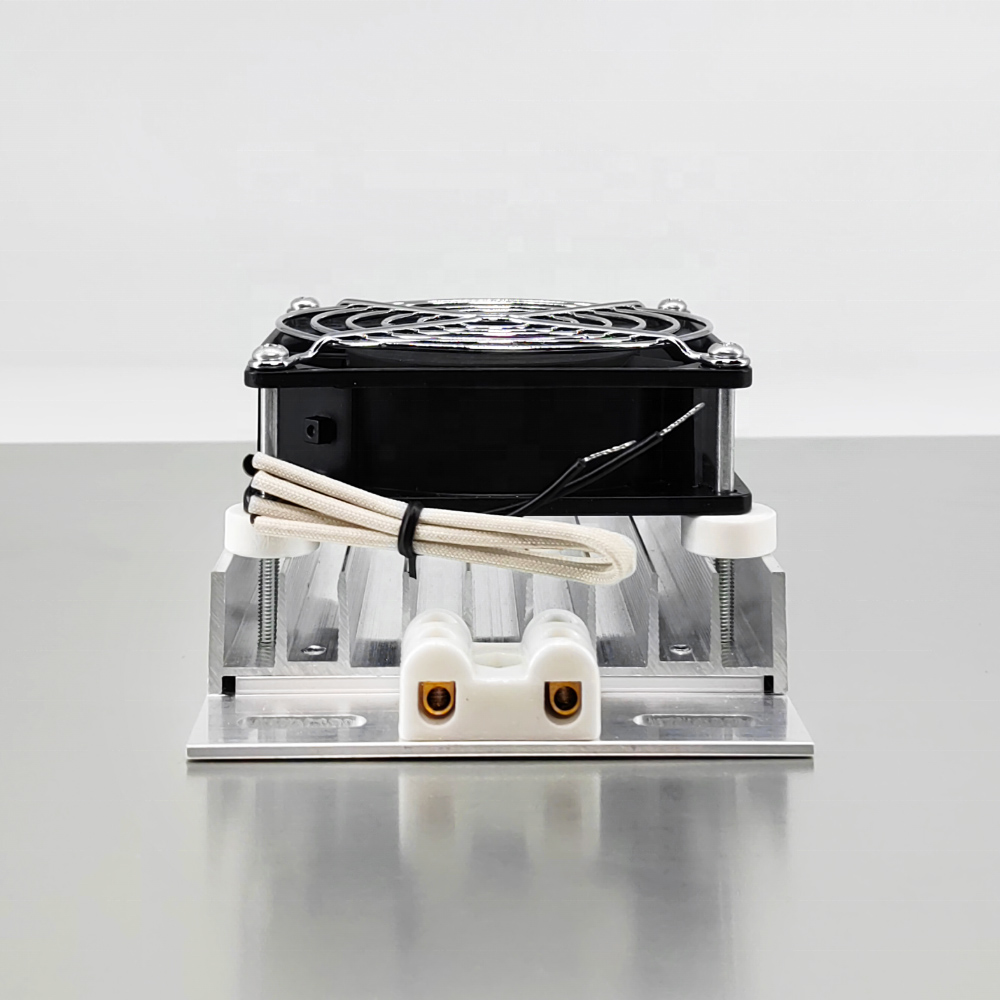

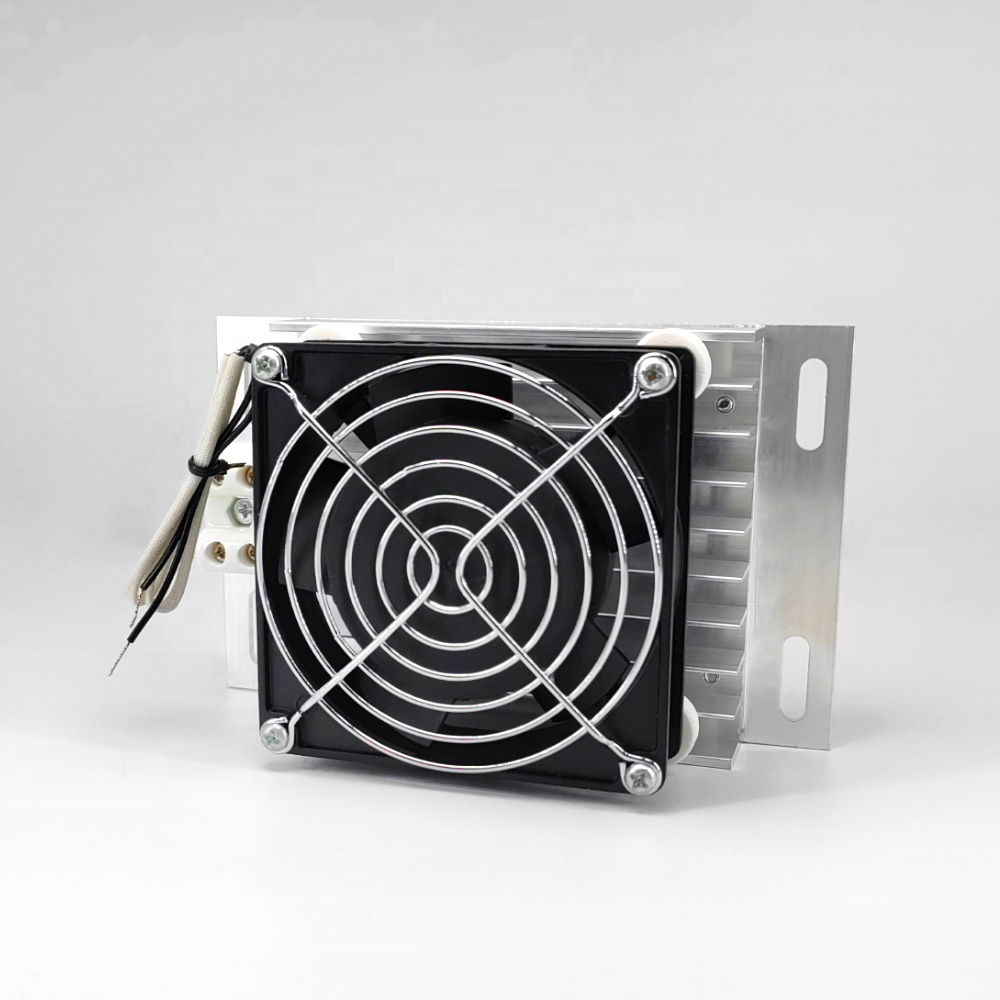

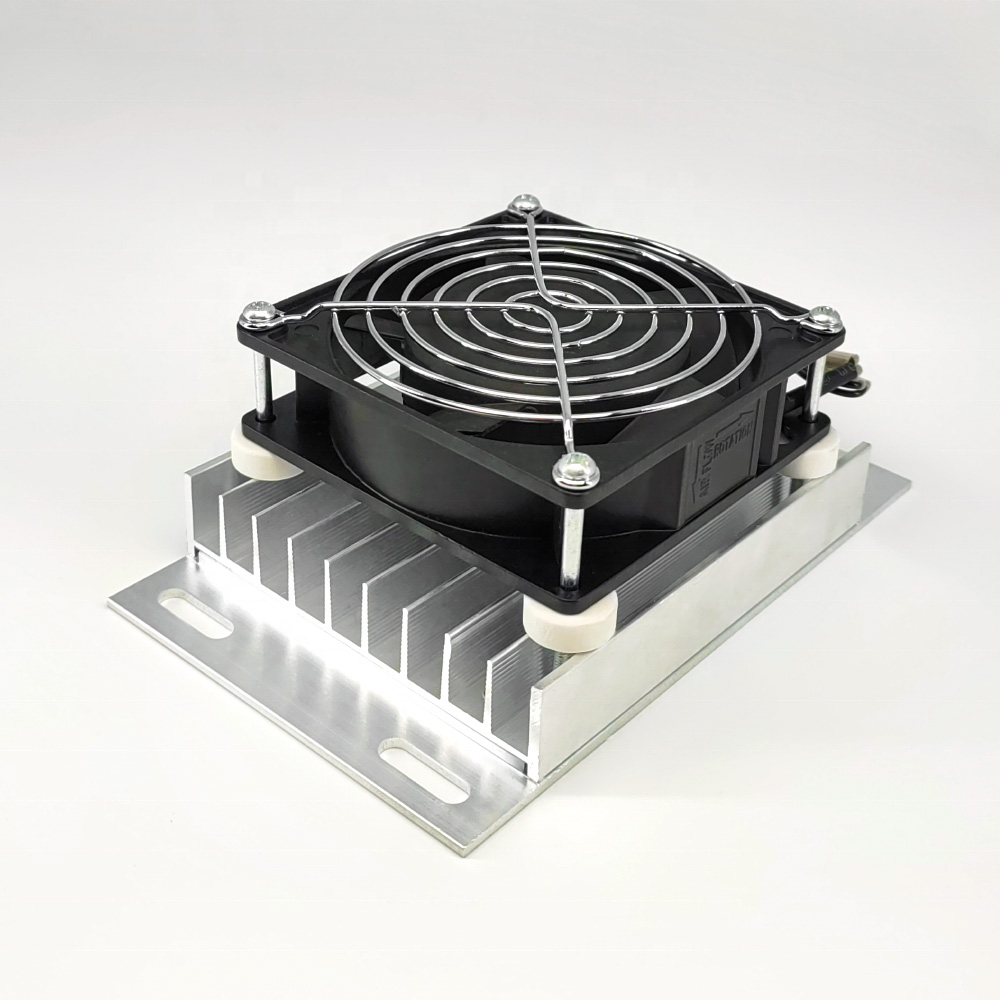

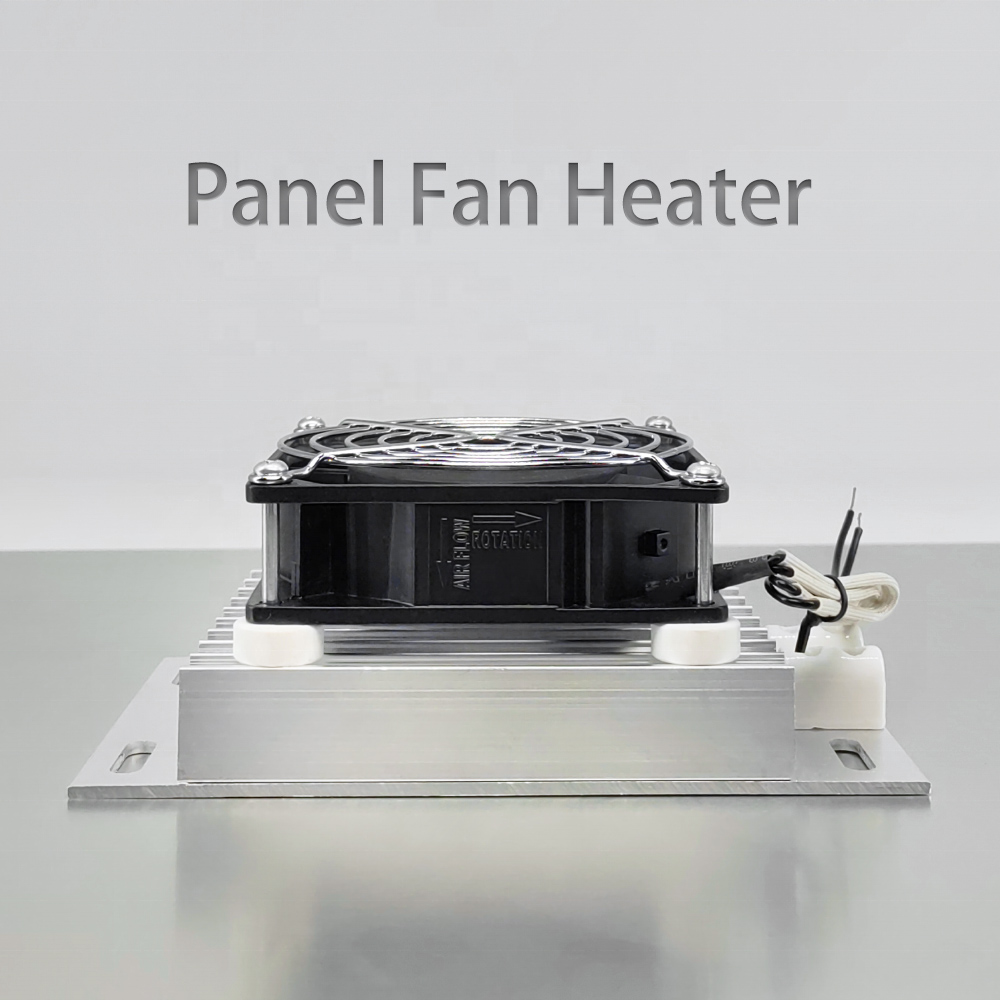

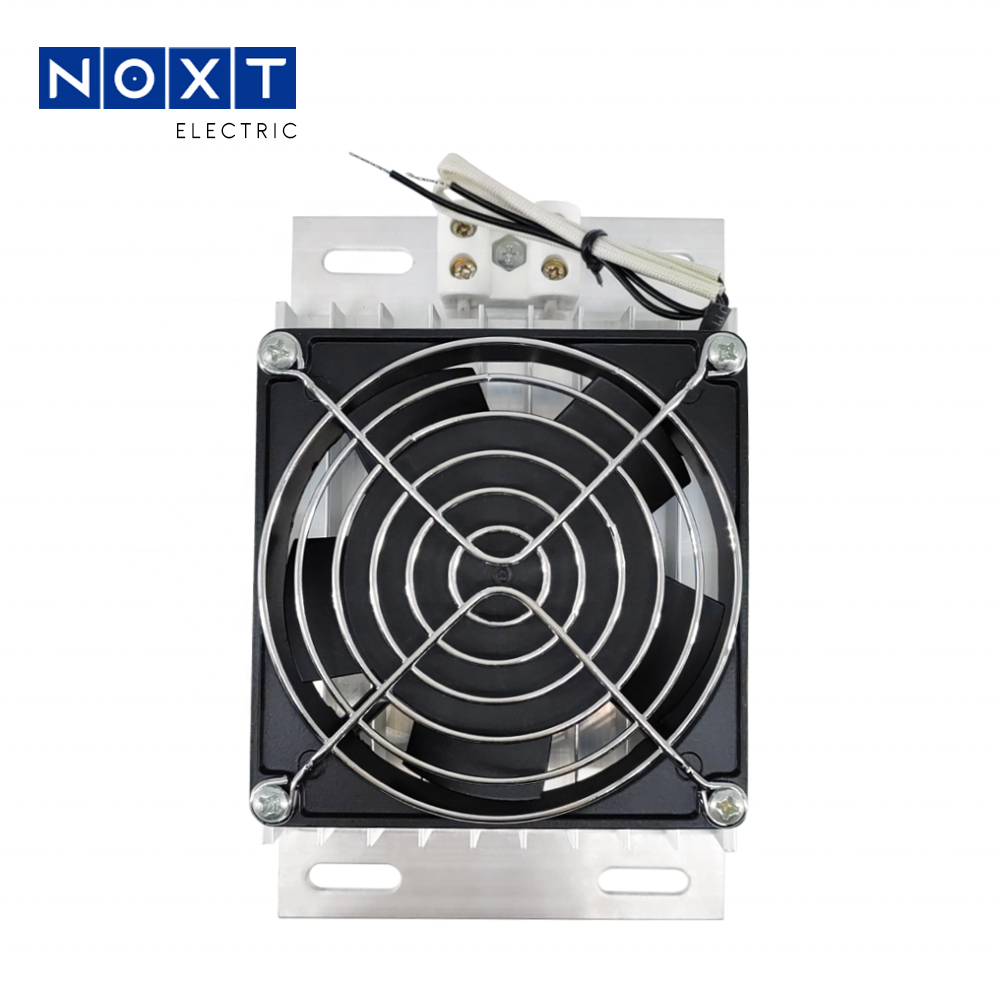

The DJR-F PTC heater is a compact cabinet heating unit designed for electrical enclosures, control cabinets and switchgear. Built with PTC heating elements, it features self-temperature-limiting function for safe operation.
Equipped with a cooling fan, it delivers uniform heat distribution inside the cabinet to prevent condensation and low-temperature damage to electrical components. Its flat, space-saving structure supports easy installation, and it works over a wide voltage range. Heating power automatically adjusts according to ambient temperature, making it ideal for industrial cabinet anti-condensation and freeze protection applications.
Test report per batch
Datasheet + test report
CADs, logos, test reporting
1-5 pcs for qualified buyers
Not recommended. The fan is used to circulate heat. Operating without the fan will lead to localized heat accumulation and reduce heating efficiency and service life.
Periodically wipe dust off the fan and PTC heating surface. Inspect wires and terminals for looseness or corrosion, especially for outdoor cabinet installations.
It supports long-duration continuous operation. However, you need to match a proper thermostat to turn it on/off based on temperature. Regular dust cleaning is required if deployed in dusty outdoor environments.
