HG040

Heater & Fan Heater

Key Specifications

Item	Specification
Model	HG040
Operating voltage	AC/DC 120-240 V (min.110 V, max.265 V)
Heating element	PTC resistor, temperature limiting
Heater body	Extruded aluminum profile, anodized
Connection	3 cage clamps for solid wire AWG 20-14 (0.5-2.5 mm²), and stranded wire (with wire end ferrule) - AWG 20-16 (0.5-1.5 mm²)
Connection casing	Plastic, UL 94V-0

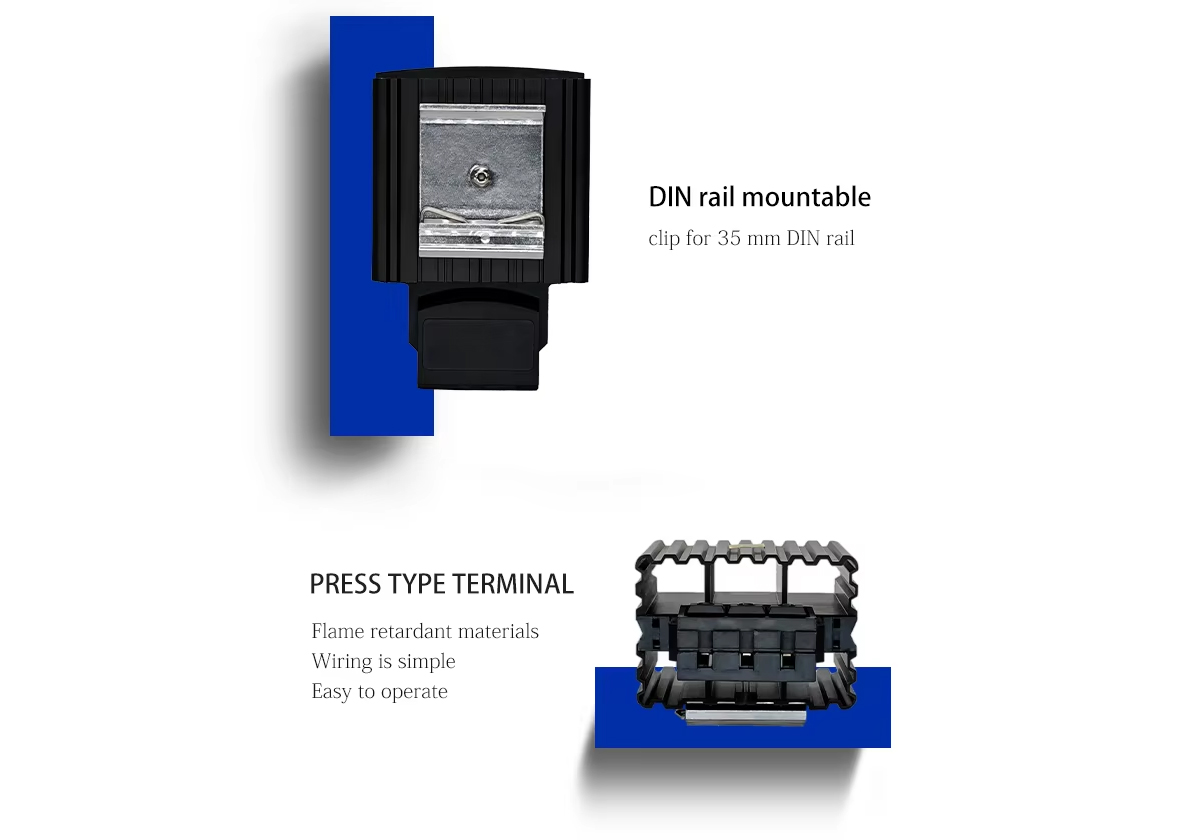

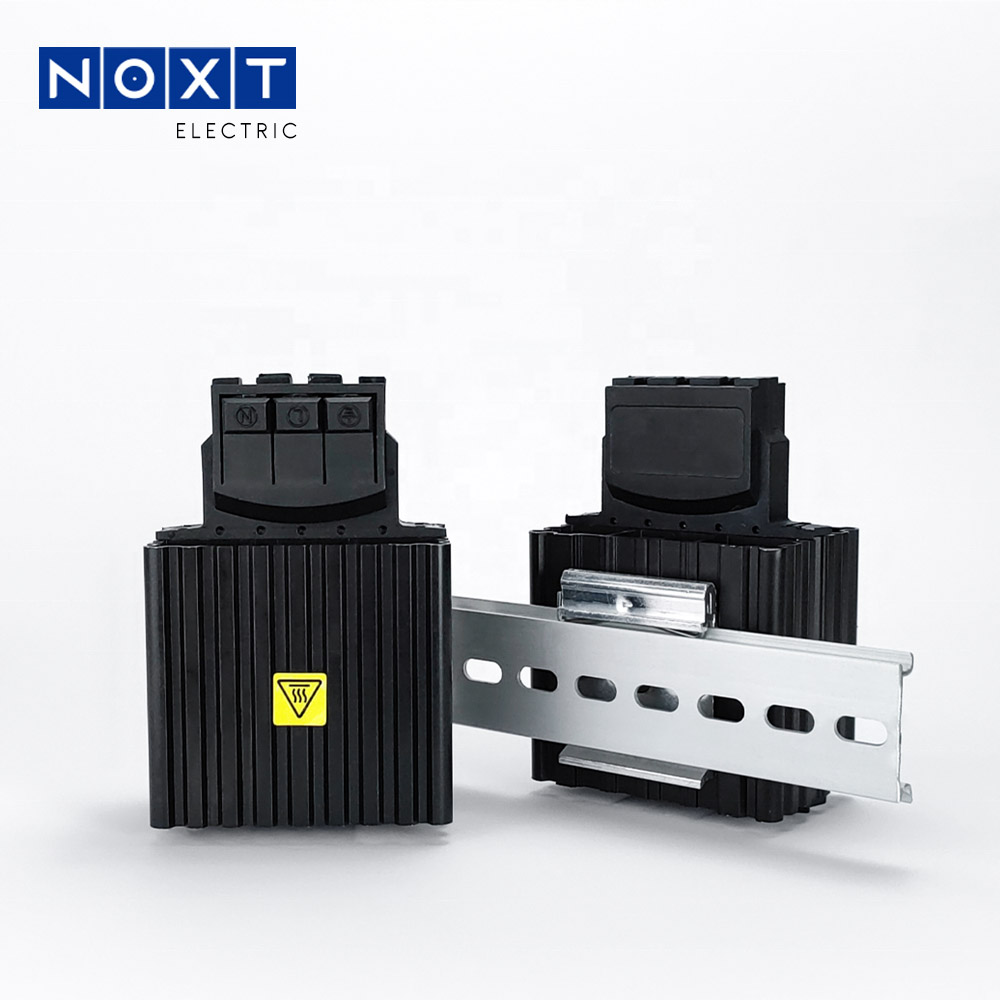

Mounting	clip for 35 mm DIN rail
Operating / Storage temperature	-45 to +70 °C
Operating / Storage humidity	max. 90 %RH (non-condensing)
Heating capacity	15W--150W customizable

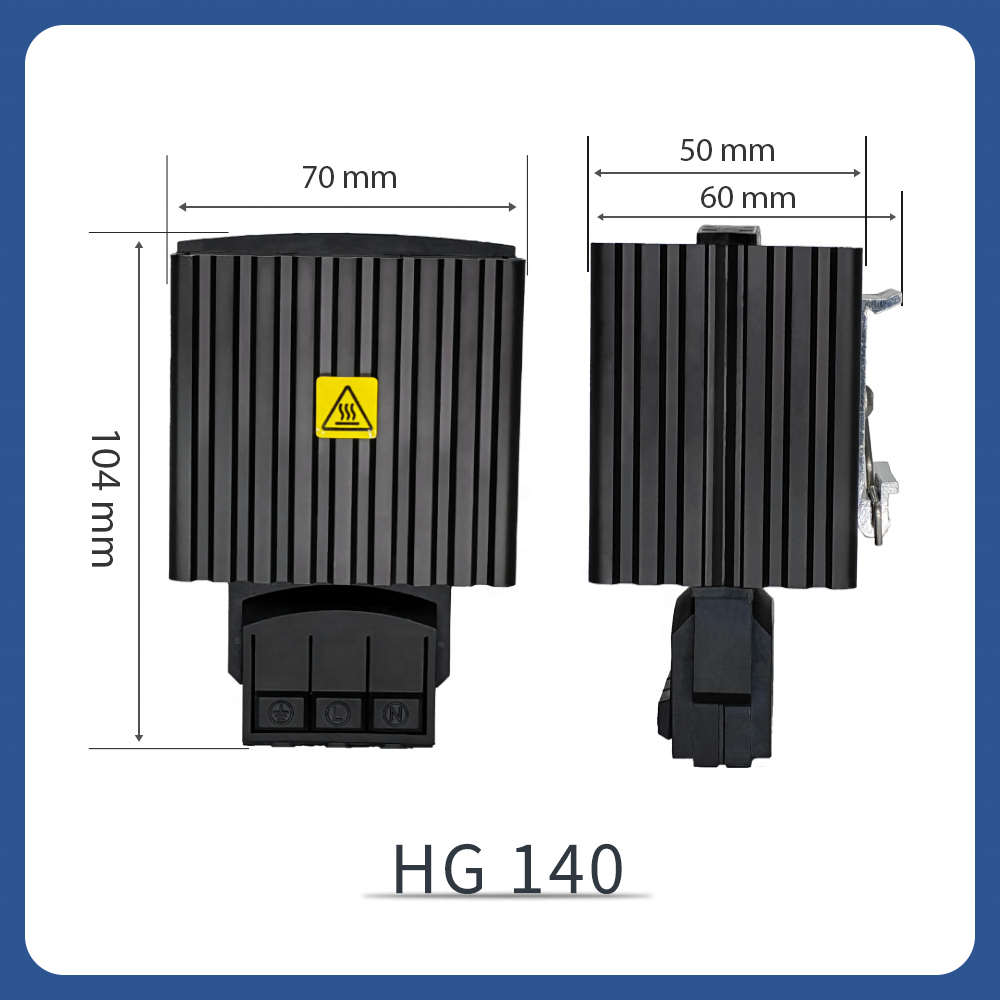

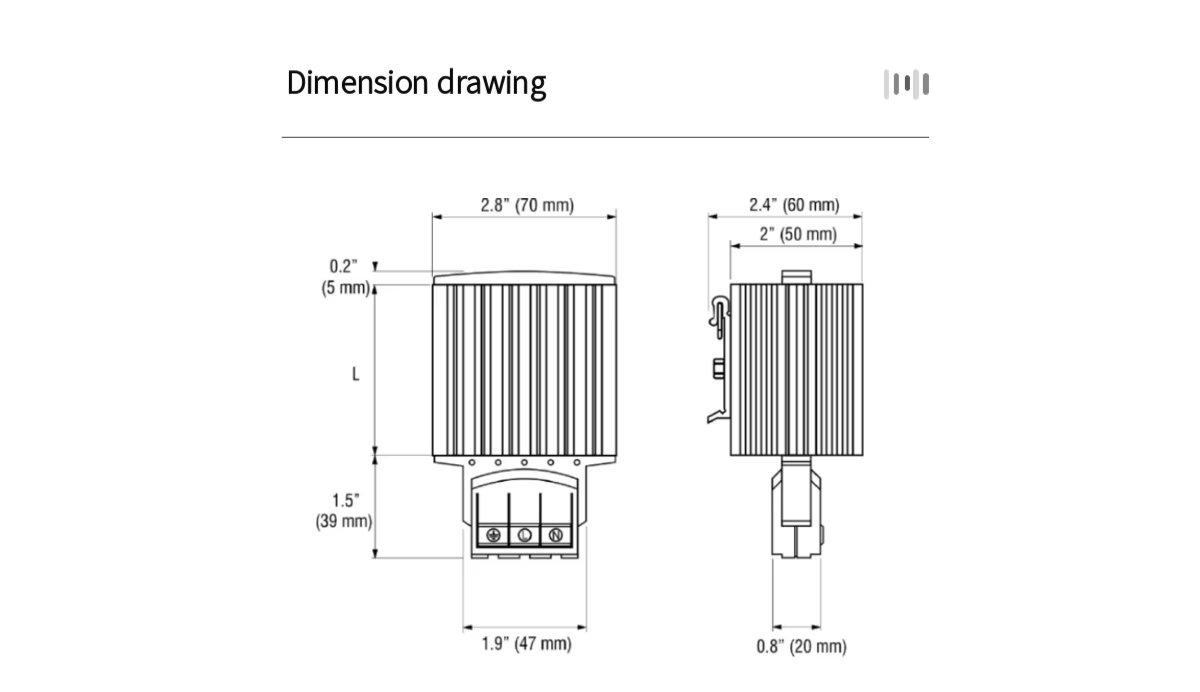

Length (L)	65mm/140mm
Weight	300g/500g
Protection type	IP20

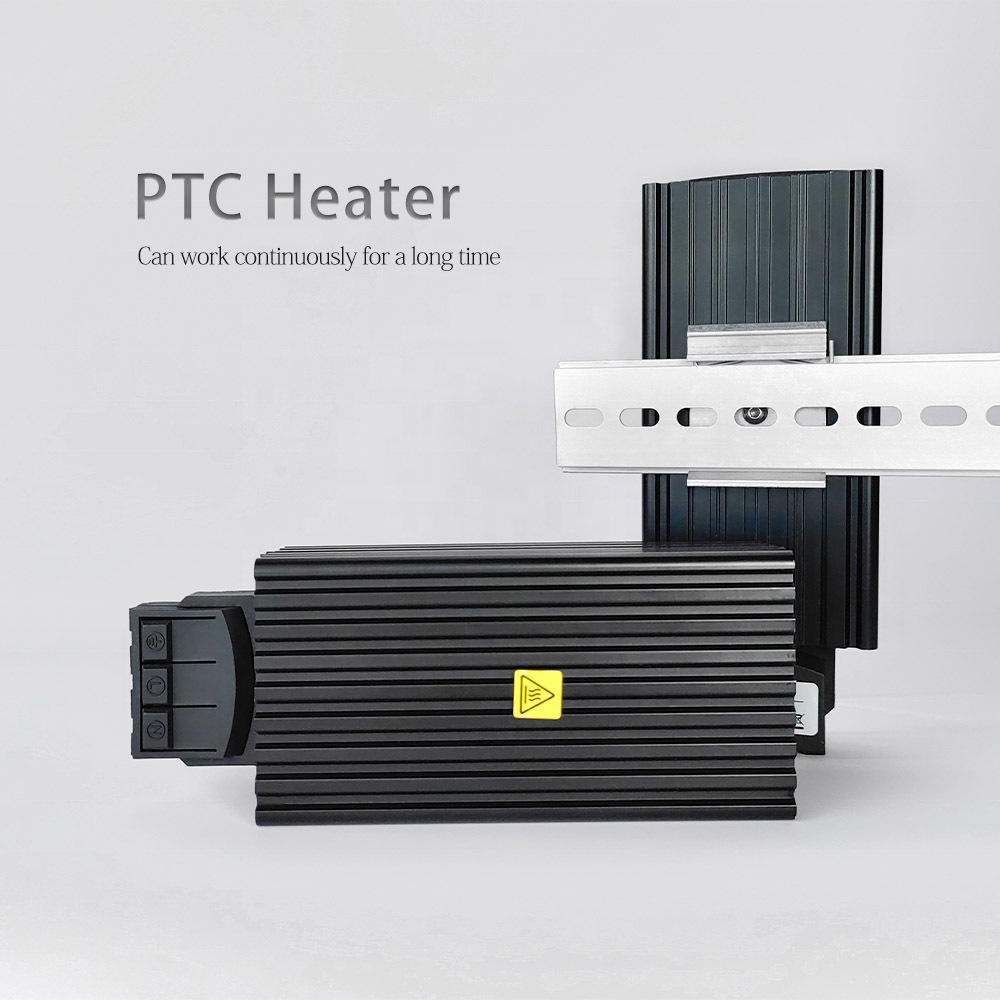

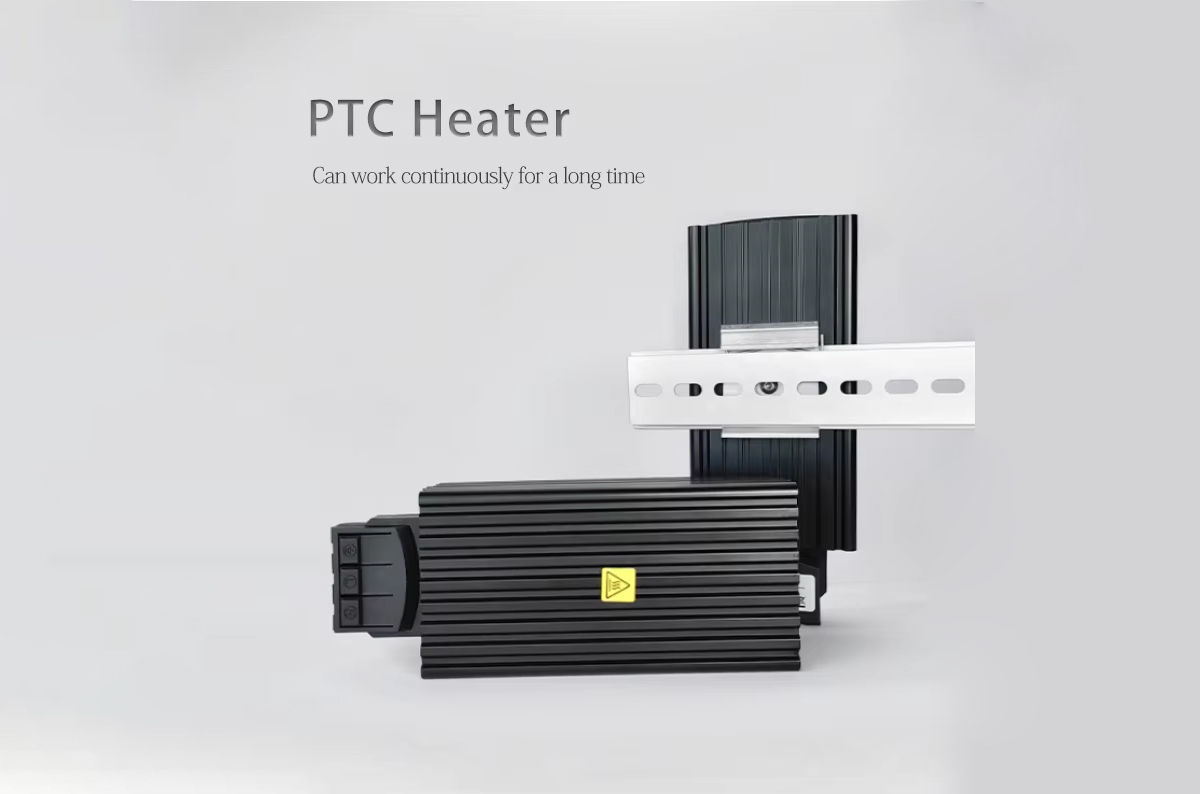

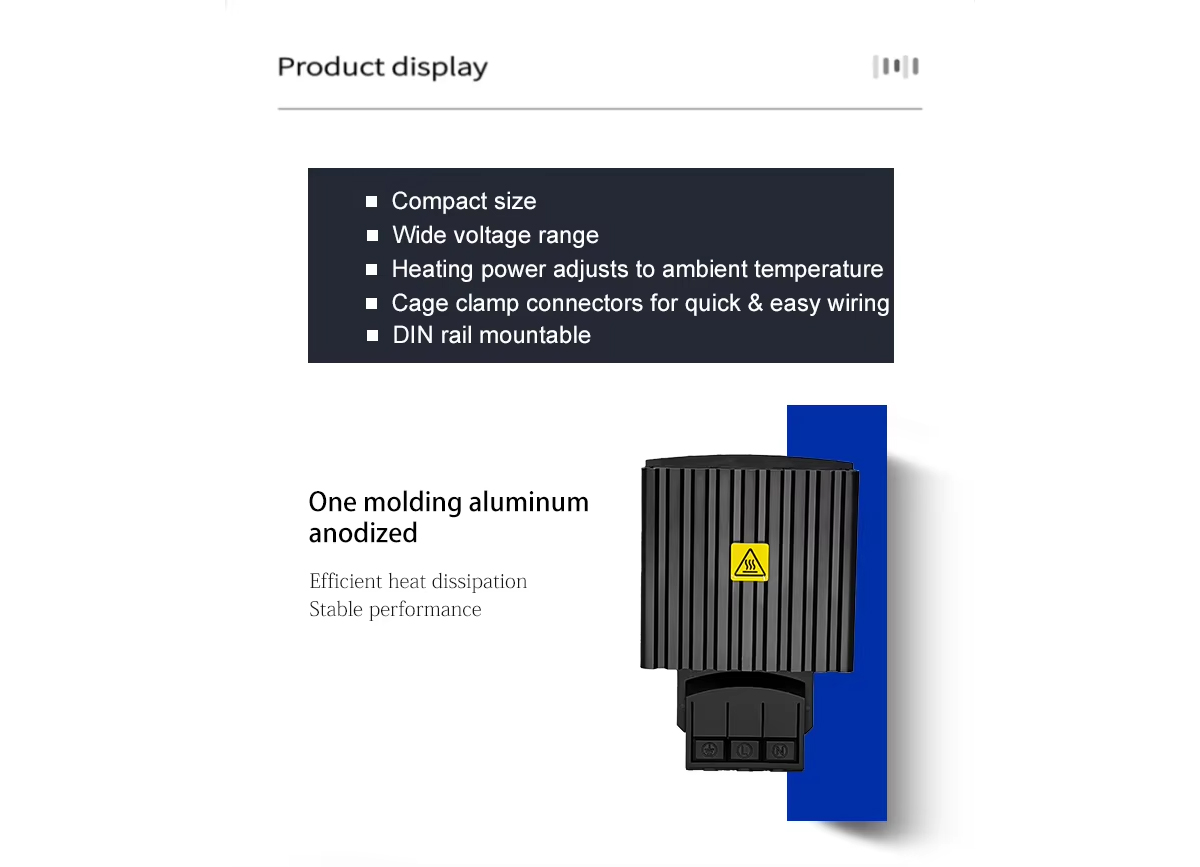

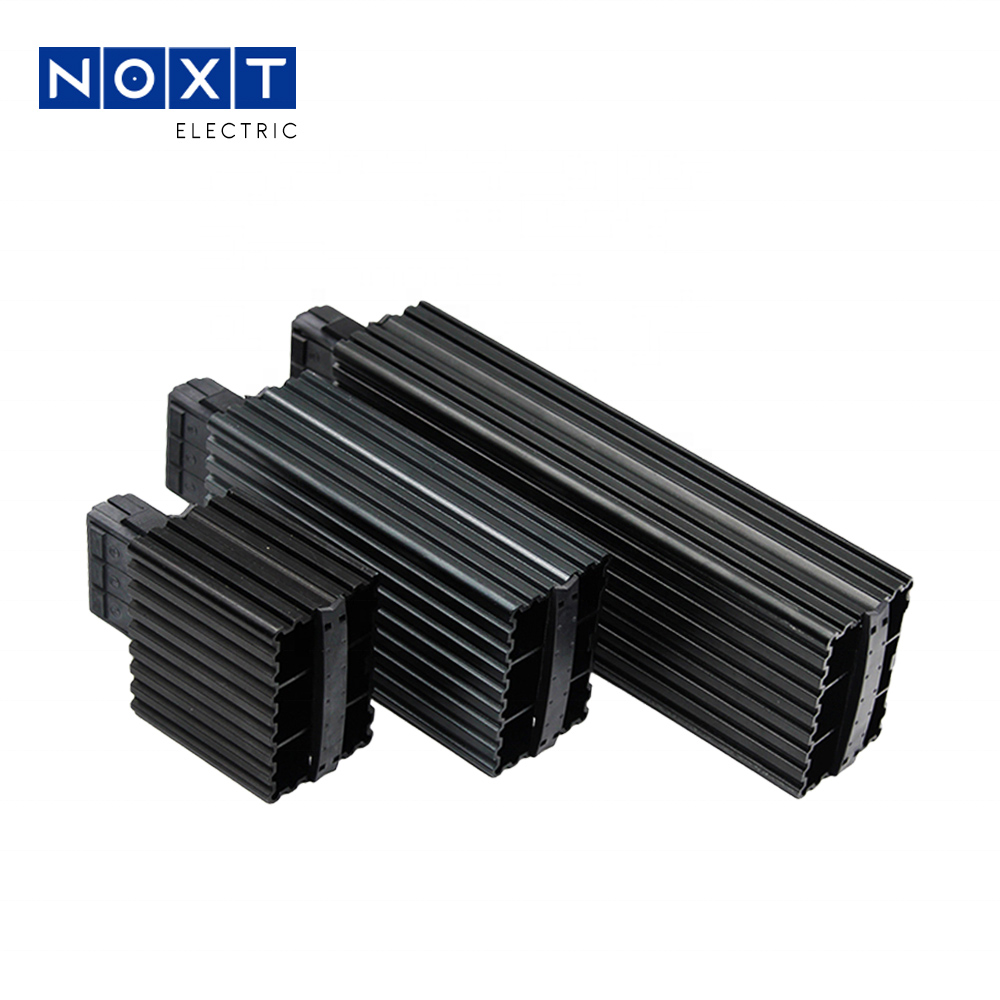

HG040 PTC heater is a compact DIN rail mounted enclosure heater designed for moisture-proof and dehumidification inside electrical cabinets. It adopts one-piece anodized extruded aluminum profile for efficient heat dissipation and stable long-time continuous operation.

This heater features wide AC/DC voltage input from 120V to 240V. The PTC heating resistor comes with temperature self-limiting function, heating power automatically adjusts according to ambient temperature. Equipped with cage clamp terminals for quick, simple wiring. UL94V-0 flame retardant plastic terminal housing ensures safety.

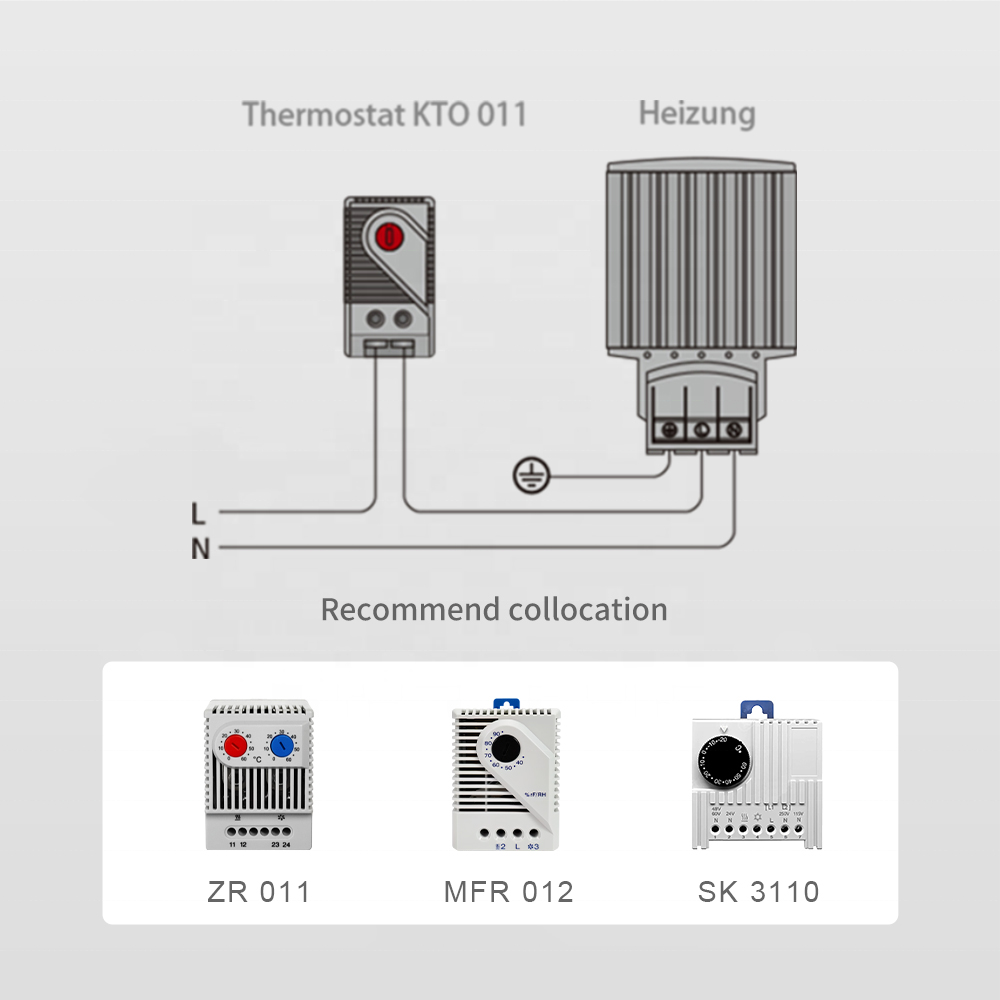

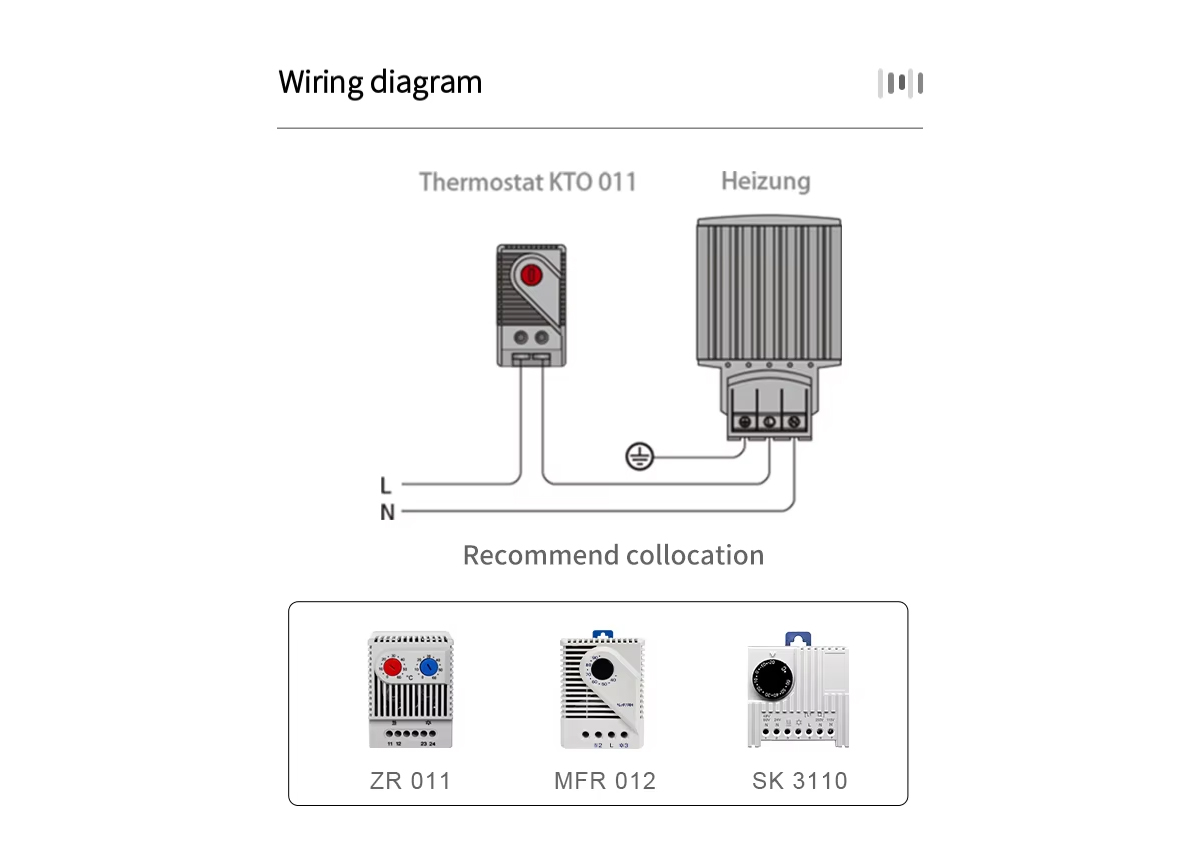

It clips onto standard 35mm DIN rail for easy installation. IP20 protection grade, supports operating temperature from -45°C to +70°C, max 90%RH non-condensing humidity environment. Heating capacity can be customized from 15W to 150W. It is commonly paired with thermostats KTO011, ZR011, MFR012, SK3110 to maintain cabinet temperature and prevent condensation damage.
