HGL046

Heater & Fan Heater

Key Specifications

Item	Specification
Operating voltage	120-230VAC (customizable)
Heating element	PTC
Heater body	extruded aluminum, anodized
Air flow, free blowing	26 cfm (45 m³/h)
Connection	3-pole terminal AWG 16 max. (1.5 mm²)
Overheat protection	built-in temperature limiter
Heating capacity	200W-500W
Weight	600g/1000g
Housing	plastic, UL 94V-0

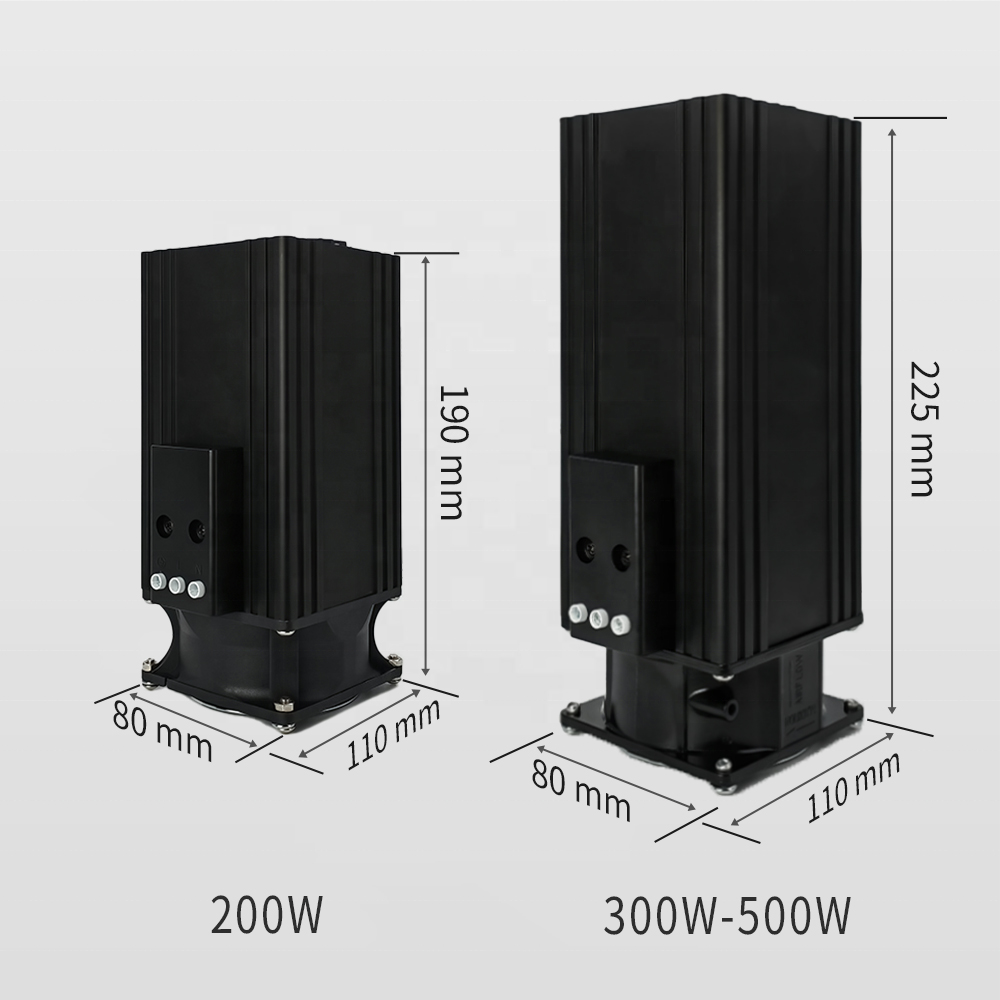

Dimensions	11080190mm /11080225mm

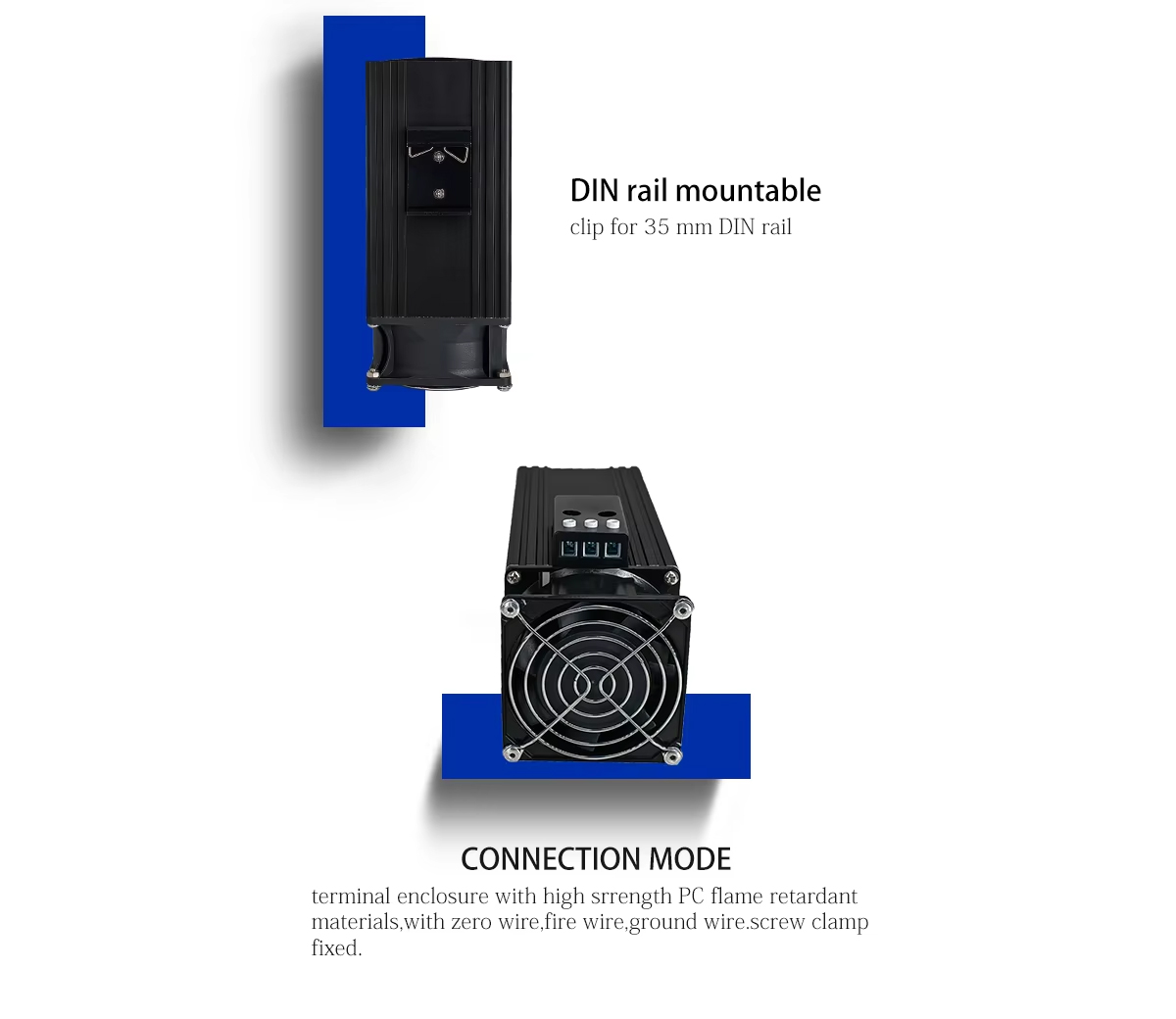

Mounting	clip for 35 mm DIN rail
Operating / Storage temperature	-45 to +70 °C
Operating / Storage humidity	max. 90 %RH (non-condensing)
Ingress Protection	I (grounded) / IP20

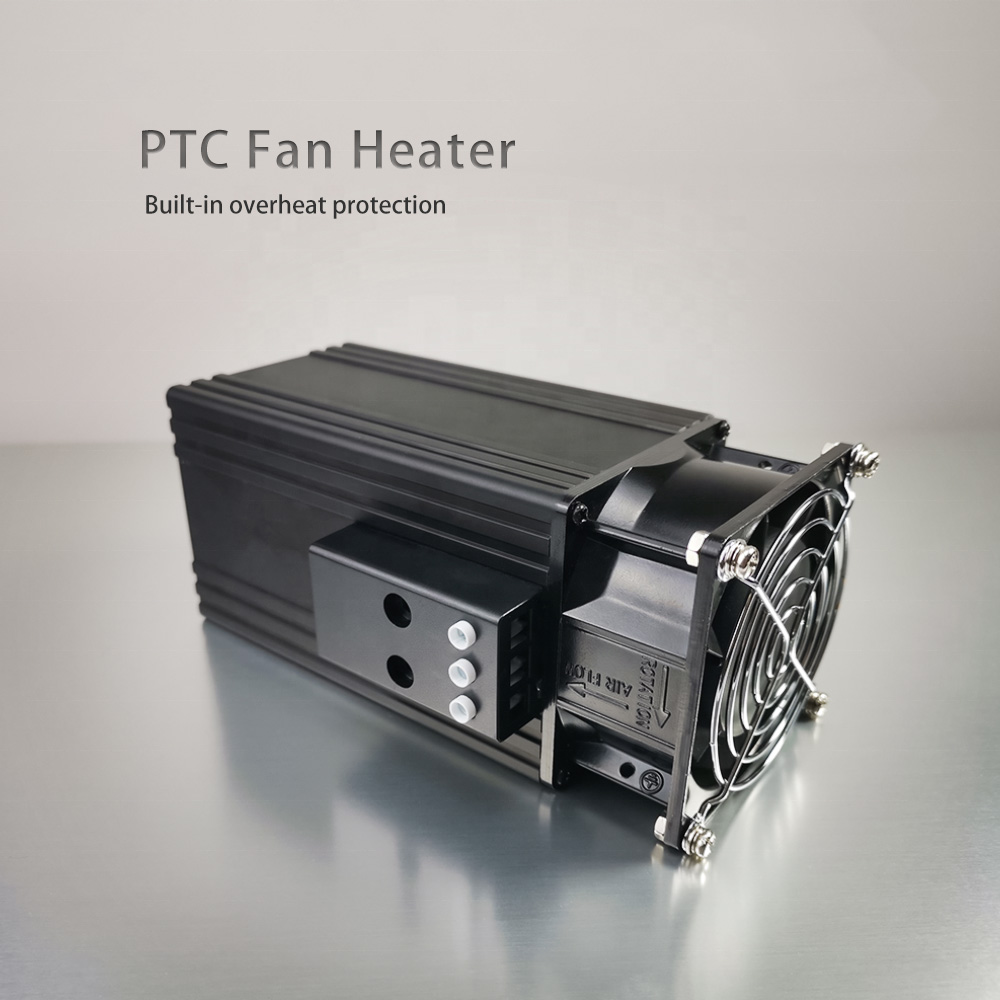

HGL046 is a high-performance PTC fan heater designed for electrical enclosures and control cabinets, delivering forced hot air circulation to prevent condensation and frost buildup inside cabinets.

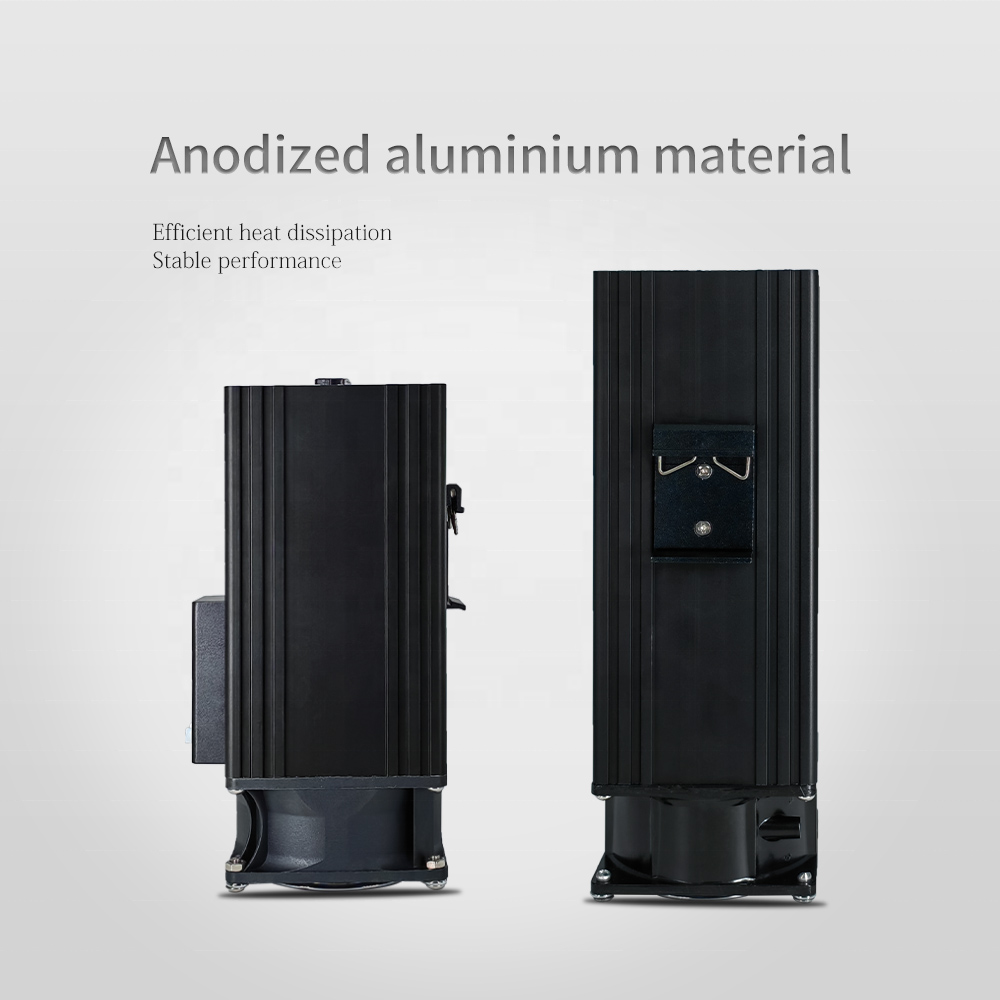

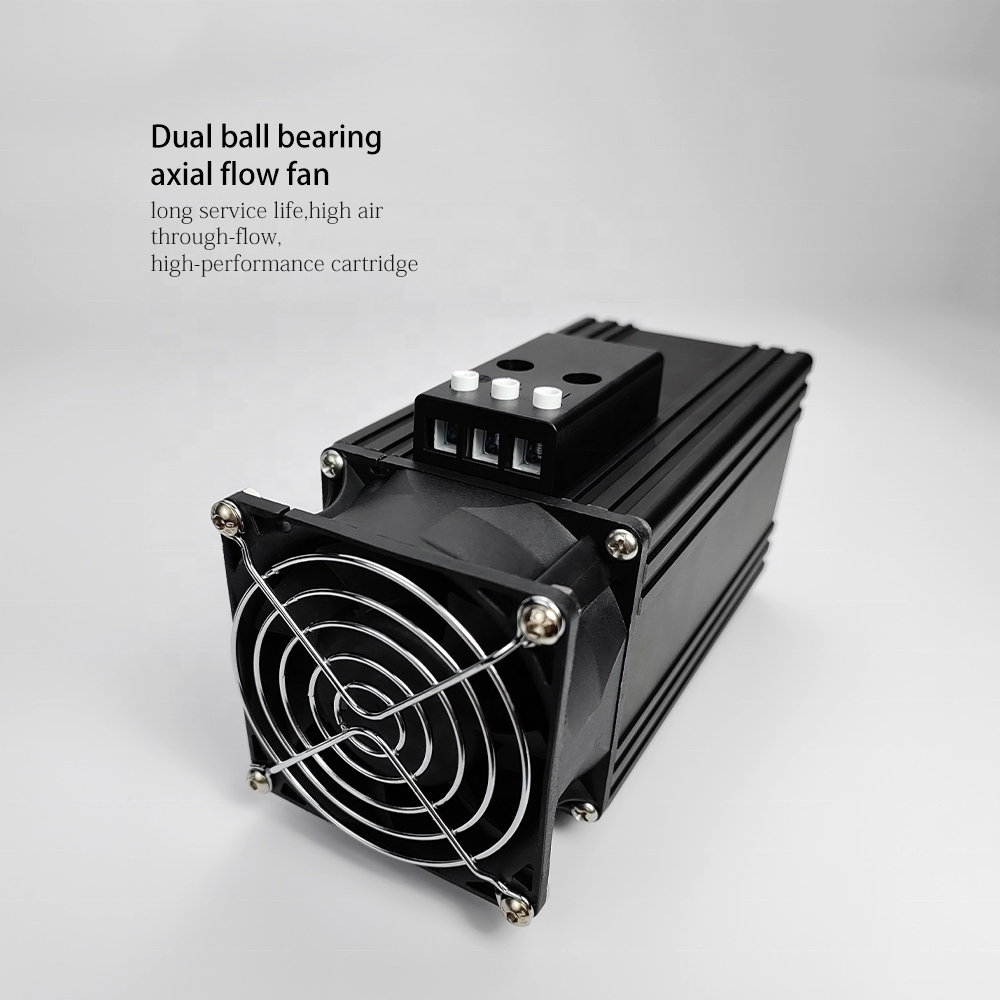

It adopts anodized extruded aluminum housing with integrated PTC heating element, featuring built-in overheat protection for safe continuous operation. Equipped with dual ball bearing axial flow fan, it provides high airflow (26 cfm /45 m³/h), long service life and stable air circulation across the whole cabinet space.

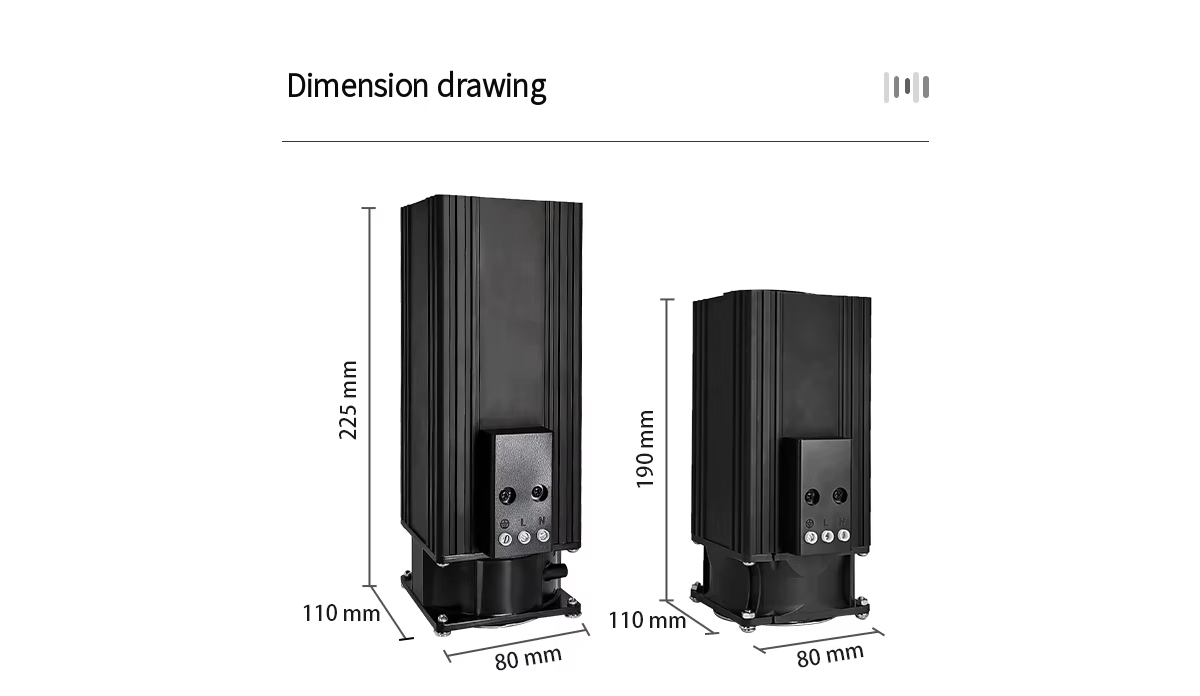

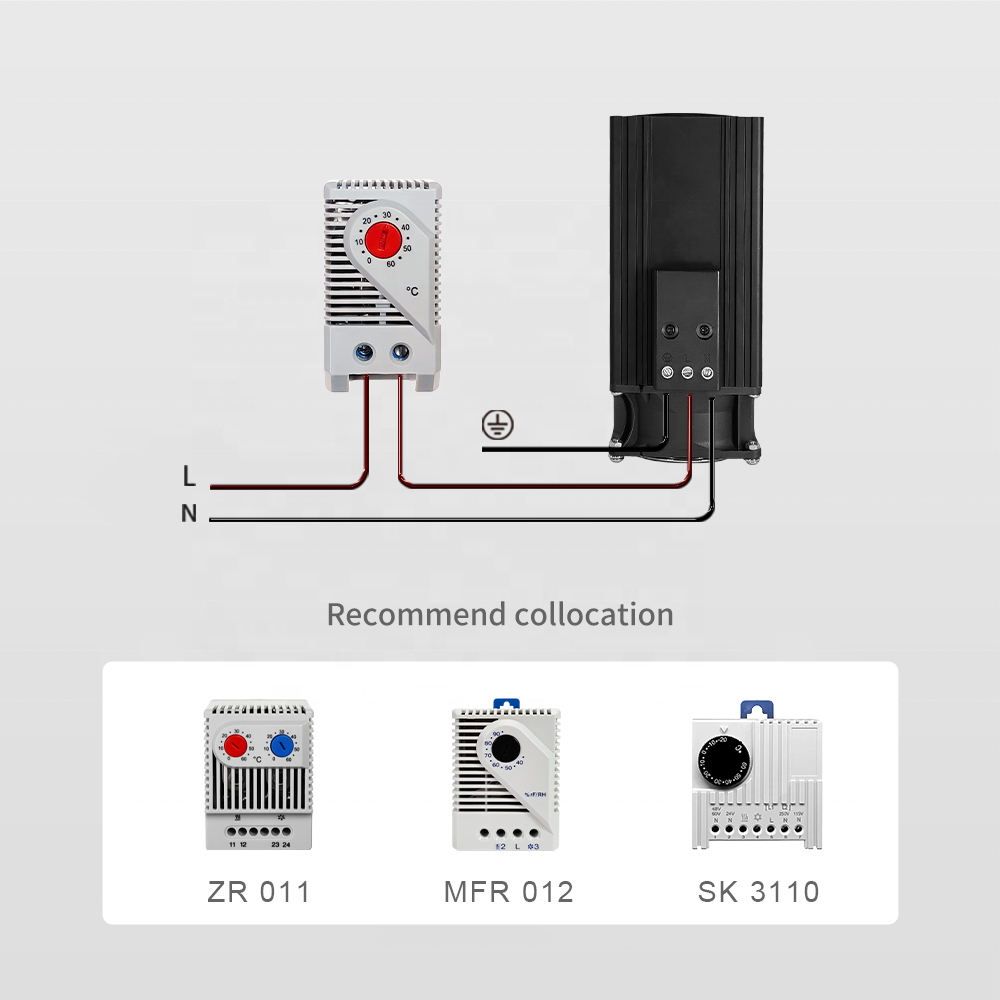

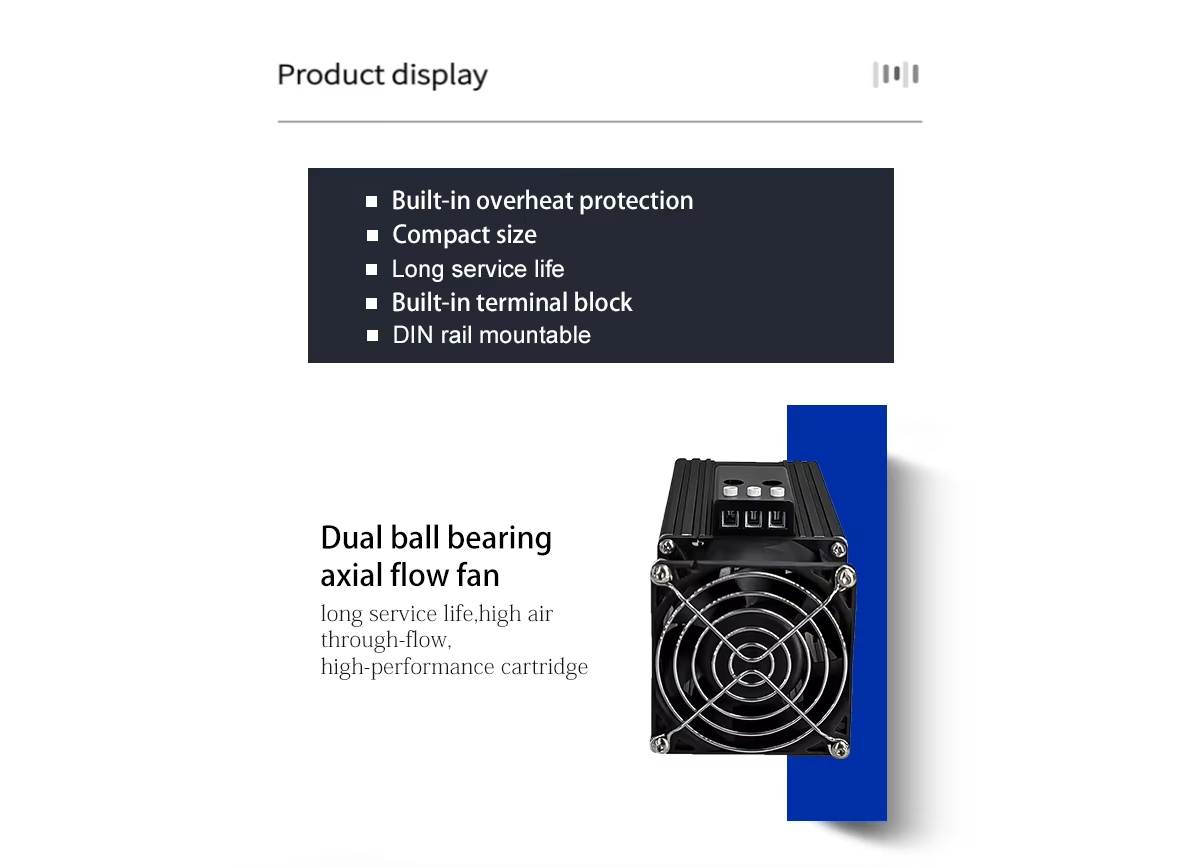

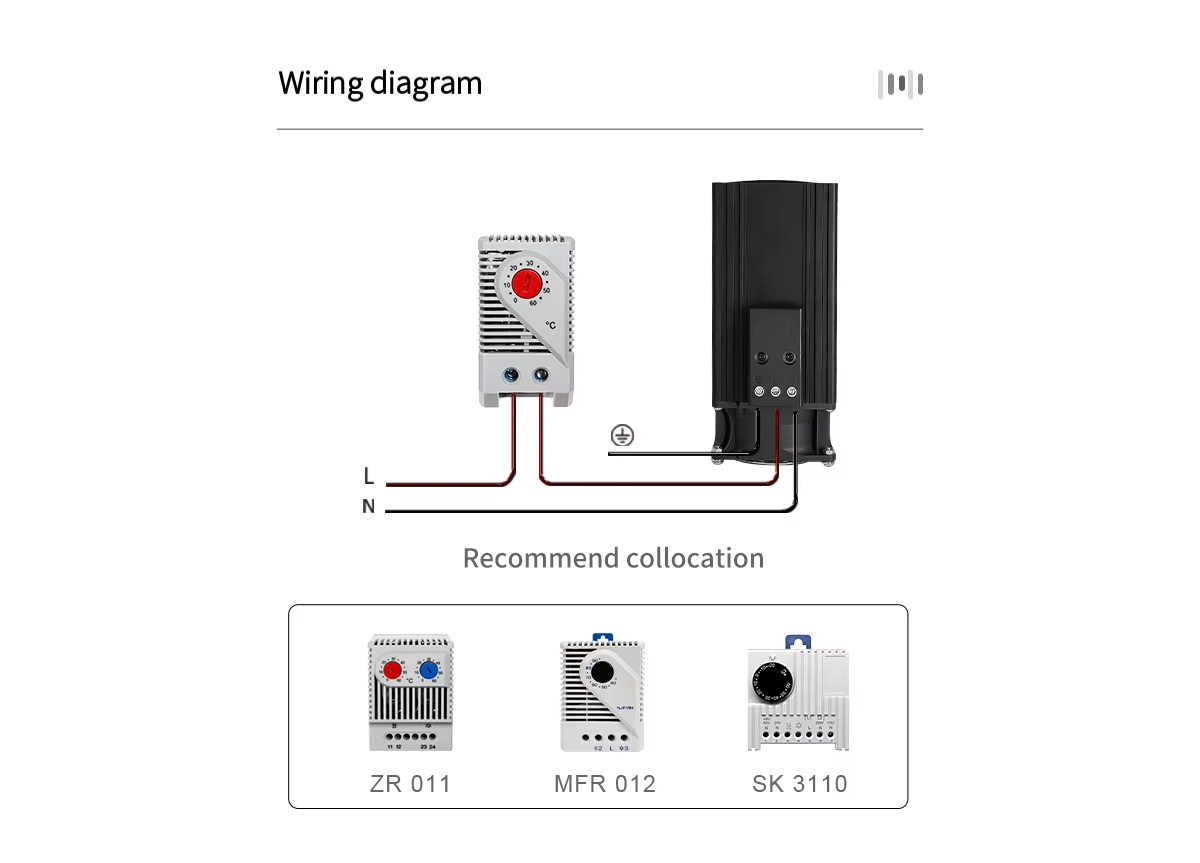

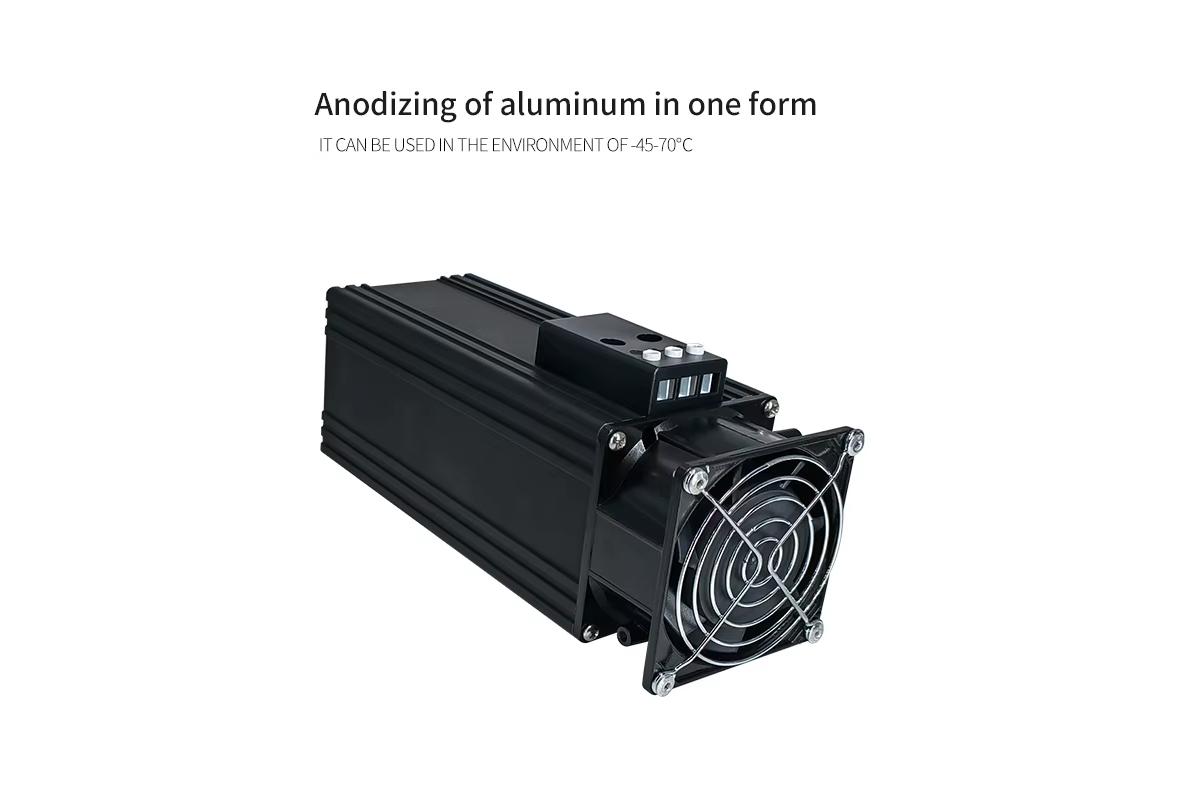

Heater&Fan Heater Product display DIN rail mountable Dimension drawing Wiring diagram
